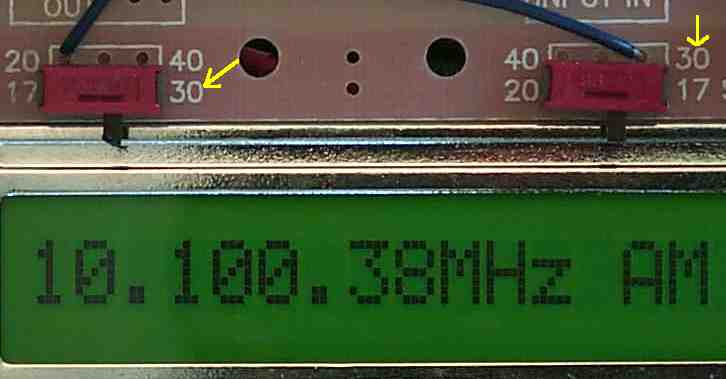

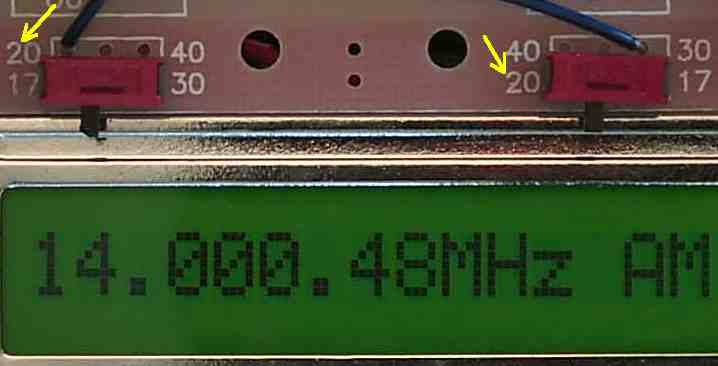

The boards shown here are an early version of the kit. The footprint for the switches are different. The currently used switches are larger and have the switch mechanism on top. The switch positions are toward the arrrows in the pictures.
The frequency counter is the AADE DFD2. This counter has been replaced by the LED 7 digit frequency counter.
