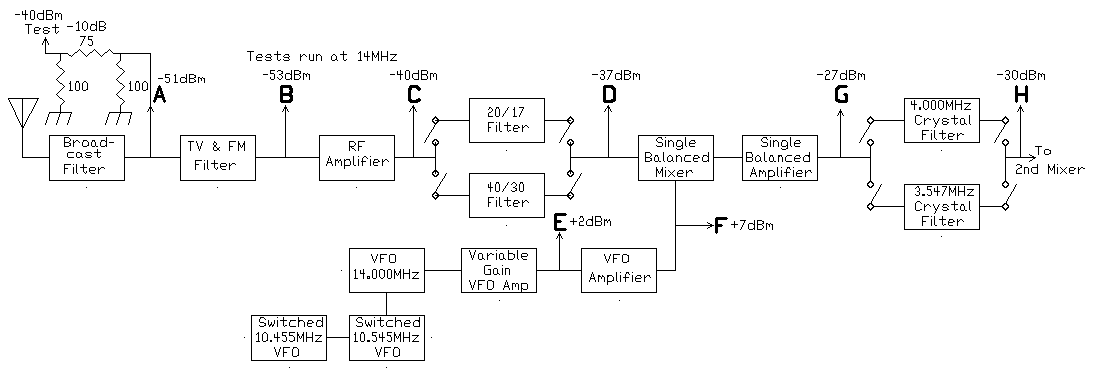

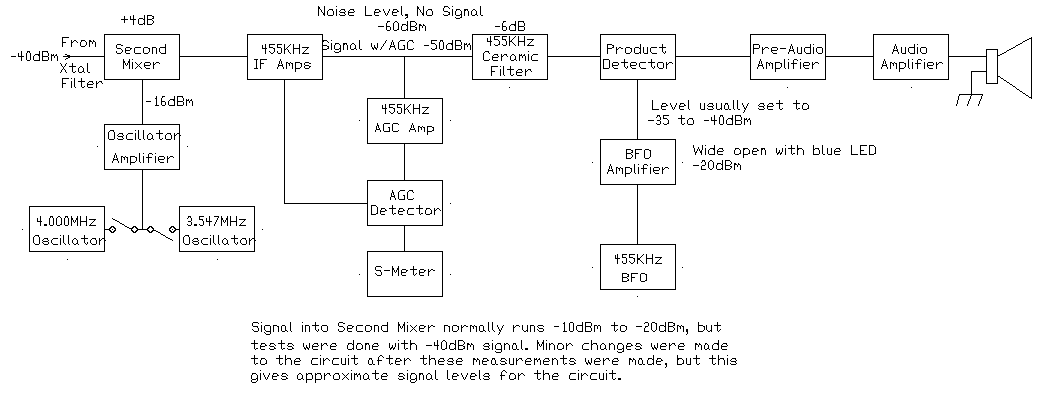

Block Diagram



Band Test A B Loss C Gain D Loss E F G Gain H Loss
7MHz -40dBm -50dBm -52dBm 2dB -35dBm 17dB -37dBm 2dB +2dBm +7dBm -18dBm +19dB -22dBm 4dB
10MHz -40dBm -51dBm -53dBm 2dB -40dBm 13dB -43dBm 3dB +1dBm +6dBm -29dBm 14dB -33dBm 4dB
14MHz -40dBm -51dBm -53dBm 2dB -40dBm 13dB -45dBm 5dB +2dBm +7dBm -27dBm 18dB -30dBm 3dB
18MHz -40dBm -51dBm -54dBm 3dB -41dBm 13dB -44dBm 3dB +1dBm +6dBm -29dBm 15dB -33dBm 4dB
