CW Transmitter w/Superhet Receivers

Block Diagram || LM1496 Mixer, Keying Circuit, Mute, Oscillator || Mixer Amplifier and Bandpass Filters
Post Filter Amplifier and DL-QRP-PA || Low Pass Filter || References

A Broadband Interface for any Receiver

This circuit evolved from the desire to have transceiver operation when using my homebrew superhet receivers.

A superhet receiver design feeds the VFO into the first mixer, which converts the incoming signal to the IF crystal filter frequency. Going backwards, taking the VFO and mixing it with the IF crystal filter frequency yields the same frequency that is being heard on the receiver.

This design was used to convert the author's Electroluminescent Receiver Kit to a CW transceiver. Additionally, it can be used with any receiver (with a stable VFO) for CW transceiver operation. Broadband circuits are used with bandpass filters to provide a clean signal for the final PA.

The circuits need to be built "dead bug" style as no PCBs are available at this time. The German DL_GRP_PA is available as a kit from the DL-QRP Club. The project web site is at http://www.qrpproject.biz/UK/qrppa2008.html


Block Diagram

A design for 40 and 30 meters will be presented. Modifications are very easy to incorporate into the design.

Be sure to include capacitor coupling (.01) between the stages. The inputs and outputs of the LM1496 and the input to the 2N5109 have bias voltages that must be protected for proper operation.

Shielding should be used between the stages. Use shields that are as high as the circuitry enclosed. Keep the LM1496 section as far away from the DL-QRP-PA as is practically possible.

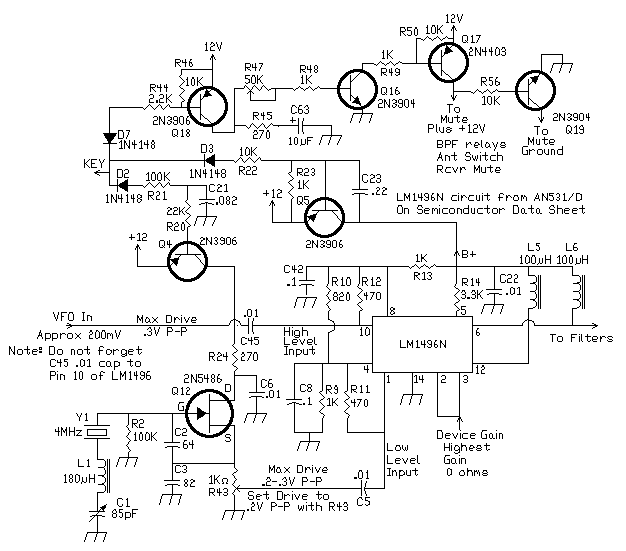

LM1496 Mixer, Keying Circuit, Mute, Oscillator

A double balanced Gilbert cell mixer, the LM1496N, is used to interface with a receiver. Since drive levels for the mixer are so low (~100mV to 200mV), a very low value capacitor (3.3pf would be a good starting point) can be used in the receiver to pick up the VFO signal. Low coupling capacitance minimizes pulling the dial calibration of the receiver. Cable length also plays a factor in the attenuation of the signal from the receiver. Be careful of really long cable lengths from the receiver to the 1496 that may lower signal strength too much.

The LM1496 output circuit comes from the AN531/N On Semiconductor datasheet. The output circuit with the 2 RF chokes and single ended output allows a broadband output in the HF frequency range.

The broadband output of the LM1496 allows any combination of frequencies at the inputs of the LM1496. Make sure you don't have an in-band signal by mathematically running your mixer products to the third product. An example is using a 3.547 MHz crystal with a 10.547 MHz VFO for 40 meters. The 3.547 MHz crystal doubled to 7.094 MHz - right in the middle of the band!

The VFO input for this schematic is 14 MHz with a 4 MHz oscillator for operation on 30 meters and an 11 MHz VFO for operation on 40 meters. The VFOs are switched in the receiver for the two bands when used with the Electroluminescent Receiver.

The frequency of the crystal in the oscillator, added to or subtracted from the VFO, generates the frequency of the transmit signal. If the receiver is a single conversion superhet, the first oscillator of the receiver might be used. Use the receiver oscillator signal (with a coupling capacitor for .2V P-P drive) in place of the oscillator and input into Pin 1. However, the receiver oscillator may not place the output signal at the right offset for CW operation unless the oscillator is pulled with a switched varactor or capacitor in the oscillator tank circuit.

If the oscillator (Q12) is the same frequency as the crystal filter in the receiver, shielding the oscillator will prevent it from getting into the receiver. No problem with chirp or pulling was noticed with this design.

Crystals can be ordered from ICM (Oklahoma City, OK) or Peterson's crystals at reasonable prices. L1 and C1 can be used to pull the crystal to get the proper offset for CW operation. The 180uH value for L1 was the best value for pulling a 4 MHz crystal.

For standalone operation, build the VFO for one-half the frequency you want to use, feed both inputs to the LM1496 and let it double the frequency of the VFO. A low frequency VFO has better stability.

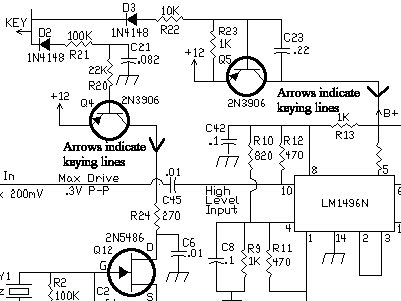

The circuitry near the top of the schematic (Q5) (shown above) is the shaping circuit for keying the LM1496 and and the shaping circuit (Q4) for keying the oscillator.

The oscillator is keyed slightly before the 1496 so the oscillator has time to stabilize before the 1496 mixer is turned on. The delay time is in milliseconds with R21/R20/C21/ with Q4 and R22/R23/C23 with Q5 determining the timing and shaping of the keying.

The schematic in the Flying Pigs article showed Q4 also supporting the mute function for the receiver. That upset the timing for the oscillator and was removed. Q4 is dedicated to the oscillator and can't be used for anything else.

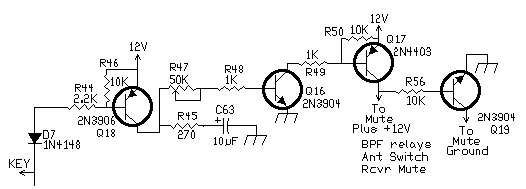

The mute function was moved to Q17 along with Antenna switching and relay switching of the bandpass filters (when used with the ELR). See the schematic below.

This circuit is from "Simple QRP Transmit-Receive Changeover", ARRL Handbook, page 19.53. For CW operation, R47 set at its minimum value worked best.

The output of the mute circuit (Q17) is +12 Volts that may need adapting for the receiver mute input. If you need a ground for the mute, add an NPN transistor, Q19 (as shown above) with a 10K resistor to give a grounded circuit for the mute input.


Mixer Amplifier and Bandpass Filters

The ubiquitous broadband 2N5109 amplifier is used to amplify the signal from the output of the LM1496 mixer through the filter.

A Pi resistor pad (3 dB is used for 5 Watts) can be inserted between the 2N5109 amplifier and the bandpass filters to modify the gain as desired. The pad also guarantees a 50 ohm input for the filter.

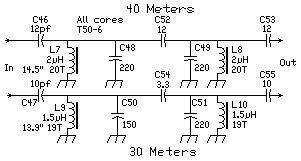

Shown are BPF filters for 40 and 30 meters. A switching circuit will be needed with multiple filters (not shown).


Post Filter Amplifier and DL-QRP-PA

The Post Mixer Amplifier is the same 2N5109 amplifier as above. A Pi resistor pad of 3dB is recommended between the output of this amplifier and the DL-QRP-PA for maximum stability. A pad of 6dB sets the output level of the final PA to 5 Watts with a 12 Volt power supply. The PA's maximum power supple level is 13.8 Volts, which increases output.

A heat sink is mounted on the transistors of the DL-QRP-PA and is surrounded by shielding that is at least as high as the PA. If a top is used, make sure there are plenty of 1/8" holes for circulation of cool air. A top is not always necessary for adequate shielding.

The DL-QRP-PA is an easy kit to build. One afternoon soldering the board, searching through the junk pile for a heatsink, mounting the heatsink and it was ready. During the process of experimenting, the PA was abused a lot and never gave up the smoke. Keep key down periods short.

Ordering the kit from Germany was amazing smooth. Peter Zenker and company makes ordering the kit with PayPal a no hassle operation. PayPal makes the necessary currency conversions, a quick response from Peter thanking you for the order, then wait about a week for the kit. Instructions are simple and thorough.


Low Pass Filter

Elsie, free software from Tonne Software, was used to develop this filter. Seven sections were needed to lower the second harmonic of 40 meters down -21dB.

How much the balanced PA cancels out the second harmonic will determine if the second harmonic of 40 meters meets FCC specifications. The harmonic could not be heard in the author's station receiver.

The 30 meter second harmonic is down >-60dB. Both of the author's Spectrum Analyzers need repair and tests have not been run to verify FCC specifications.


References

Home page of the PA: http://www.qrpproject.biz/UK/qrppa2008.html

Index Labs QRP-PLUS with the original PA, by Larry East, W1HUE http://www.w1hue.us/Articles/More%20QRP+%20Mods%20Rev0805.htm

The SIERRA with the original PA, by G3GVR http://www.qsl.net/g3vgr/sierra.html

ICM, International Crystal Manufacturing Co, Inc., ham radio and specialty crystals: http://www.icmfg.com/hamradio.html

Peterson Crystals, HC6U case: $11.00 plus $3.50 shipping. Email: Jjk51503@aol.com

Schematic of CDG2000 Low pass filters: http://www.warc.org.uk/cdg2000/lpf/schematic/schematic.pdf

LM1496 Datasheet AN531/D: http://www.datasheetcatalog.org/datasheet2/3/07xy537wuakrx12uegrciturg8wy.pdf

2N5109 amp:http://www.hamradio-online.com/1999/jun/w6bky-16.html

Free Elsie Light filter software: http://www.tonnesoftware.com/elsiedownload.html
