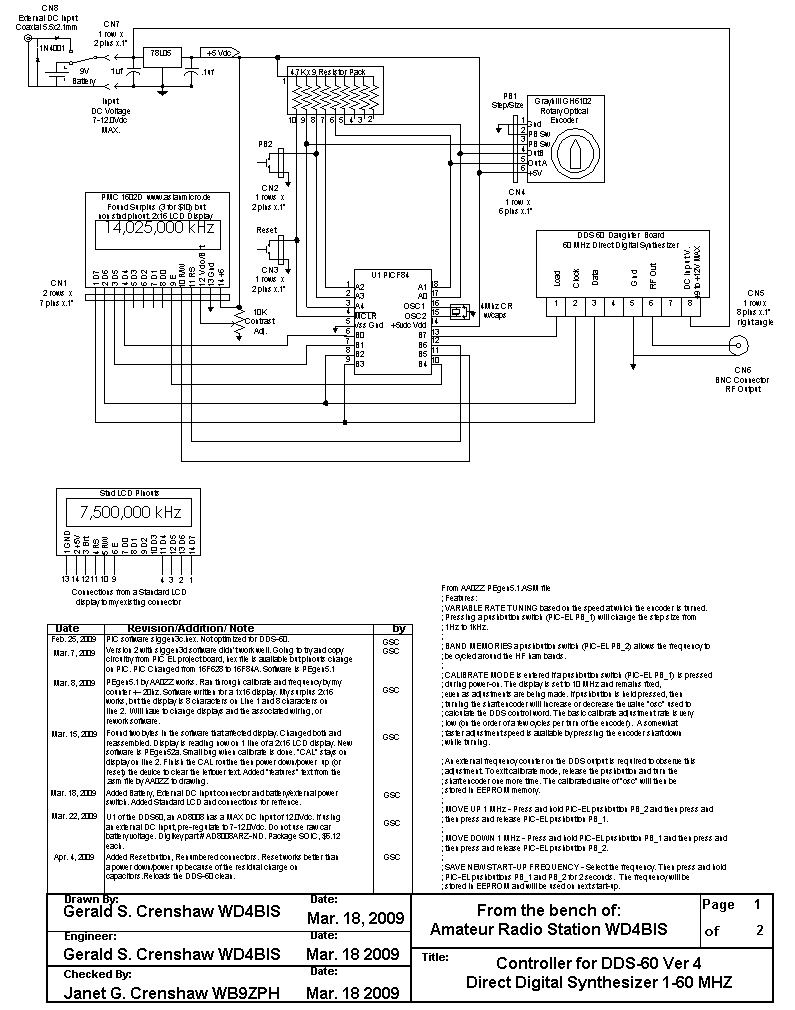

PIC based controller for DDS-60

This is a Pic Based controller for the DDS-60 Direct  Digital Synthysizer, a 1 to 60Mhz VFO.

In my version of this there is nothing new, I used bits and peices from other designs found on the web and tweaked the existing software (changed 2 bytes in two places) to make it work on some surplus 2x16 LCD displays.

If you are looking for an adventure in surface mount, I think this is a good one to try. It will test your skills.

PDF File.

Hex file as text

PIC Based controller for DDS60
