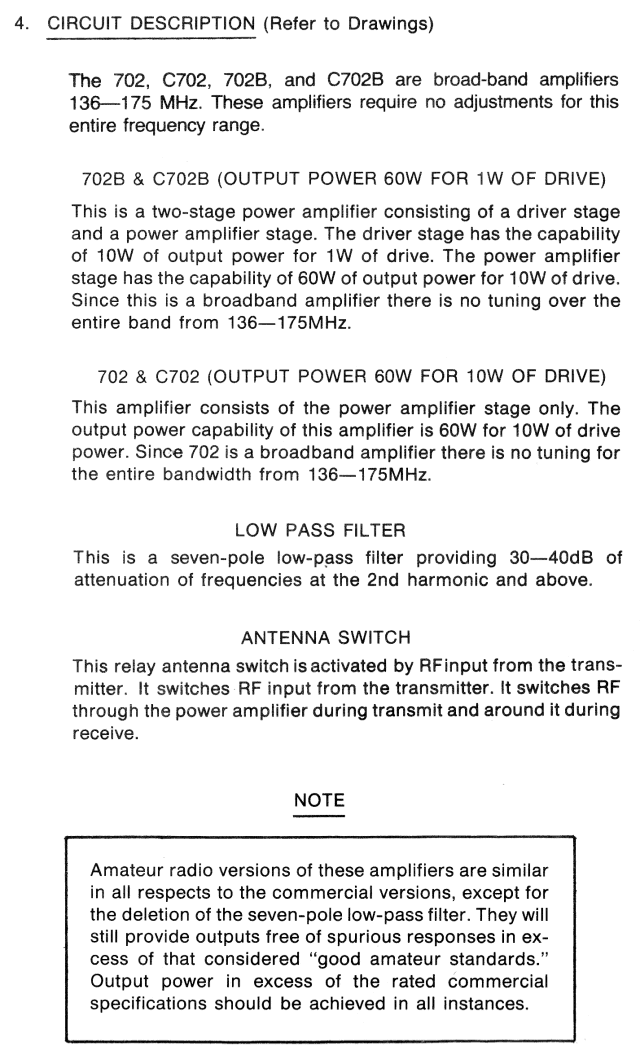

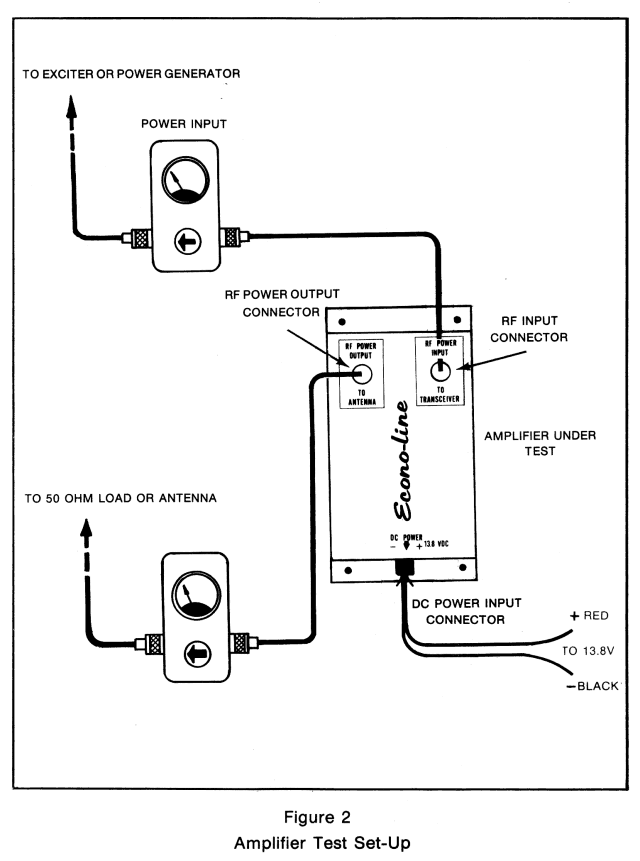

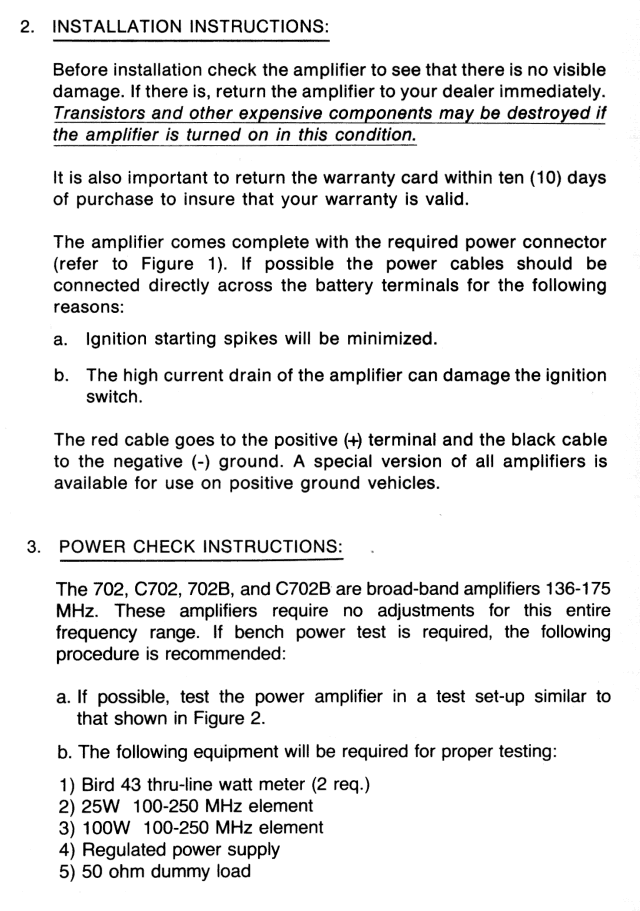

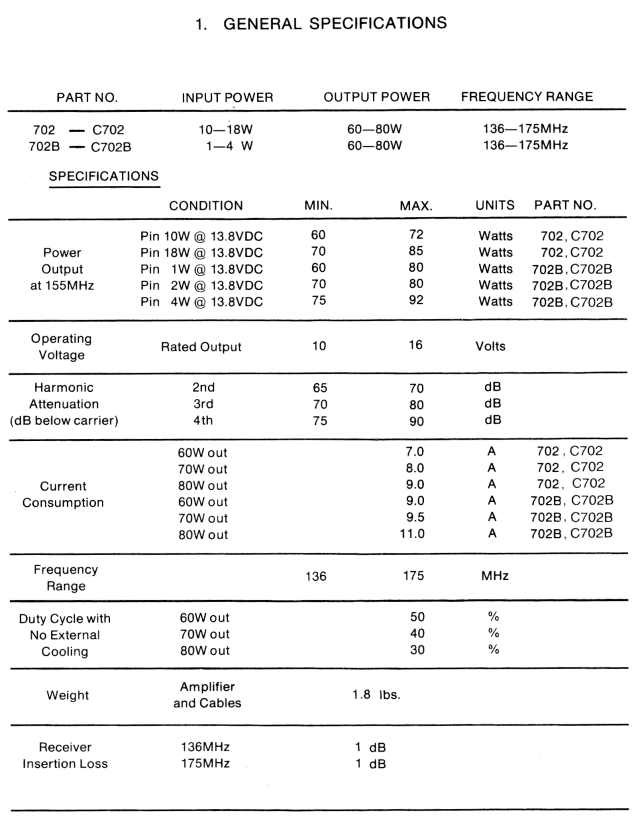

Notes

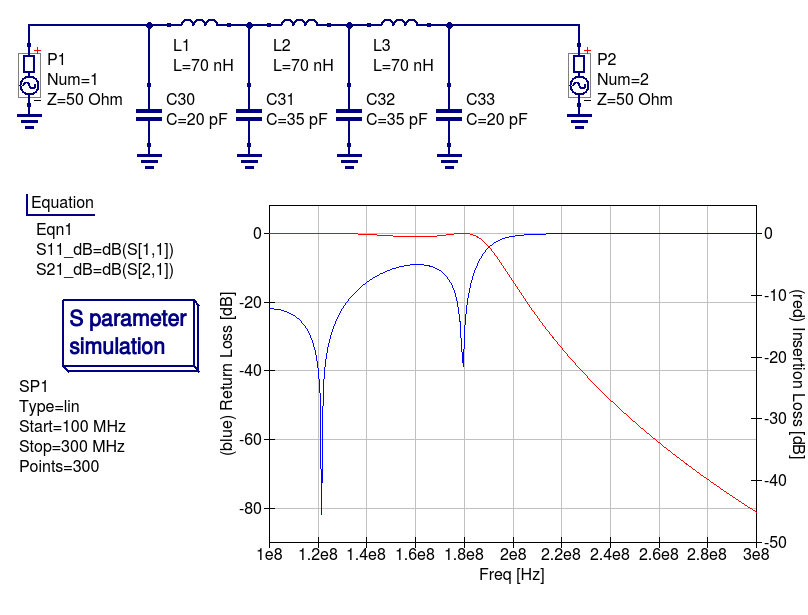

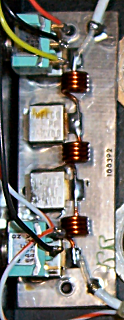

Optional Output Filter

---

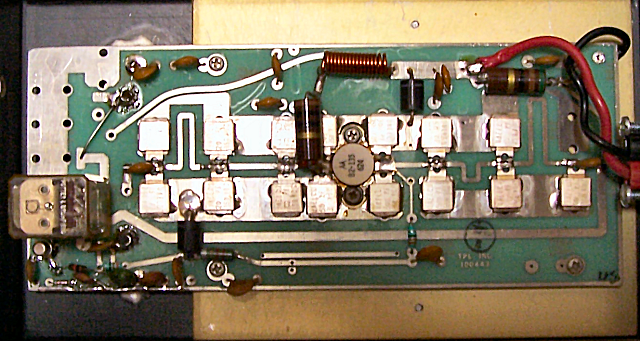

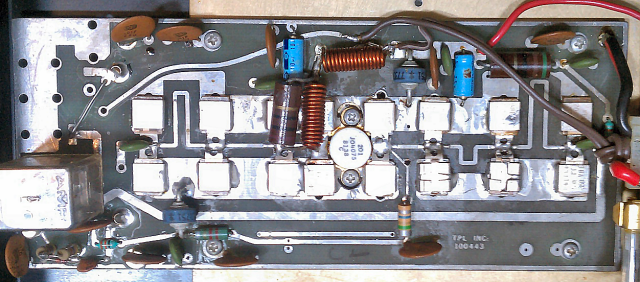

Model 702 - Single Board Version - PC Board 100443

Note:

Schematic included in manual does not match amplifier. Use redrawn schematic below. Component values on redrawn schematic have been corrected to actual values used in amplifier. Final transistor is a Motorola MRF245. See Motorola Application Note AN791.

---

Modifications

• Replace Molex power jack with PowerPoles
• Remove fuse and block -- use inline fuse in new power cable
• Remove mode switch -- leave amp biased for SSB mode
• Add surge absorber across relay
• Adapt RF sense circuit to key on DC voltage at RF input jack

---

Model 702B - Multiple Board Version

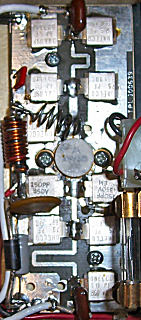

Output Filter Board 100392, RELAY Board, Driver Board 100330, Final AMP Board 100639.

Note:

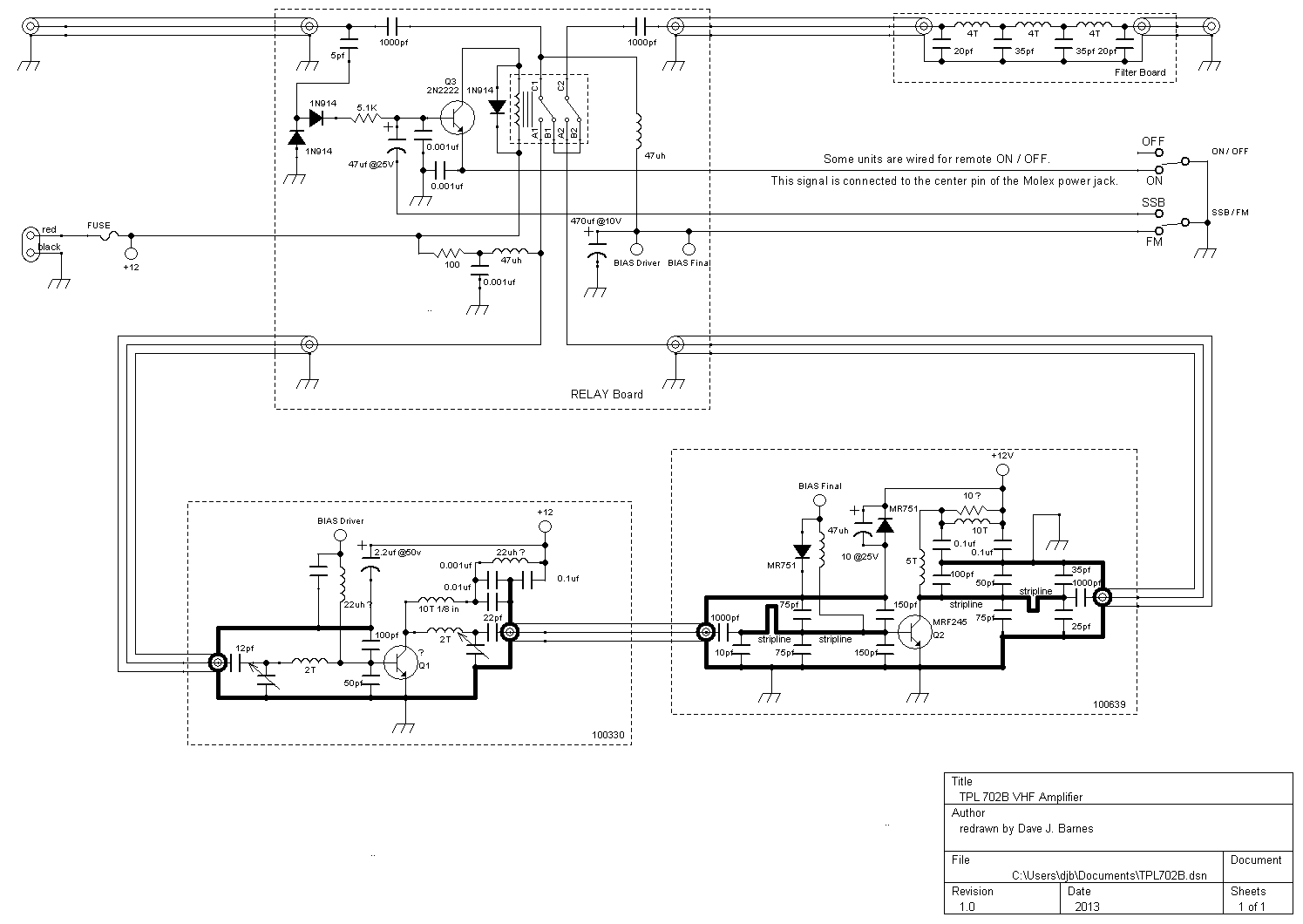

Schematic included in manual does not match amplifier. Use redrawn schematic below. Component values on redrawn schematic have been corrected to actual values used in amplifier. Final transistor is a Motorola MRF245. See Motorola Application Note AN791.

---

---
