Bulb Silhouette |
Maximum Size (see Chart Below) |
Bulb Number |
Base |
Bulb Type |
Lamp Numbers | ||||
| A | B | C | |||||||
|
7/16" | 1/4" | 1 1/4" | B-3 1/2 |
S.C. Flange (Miniature) |
Small Round |
PR2 PR3 PR4 PR6 PR12 |
||
|

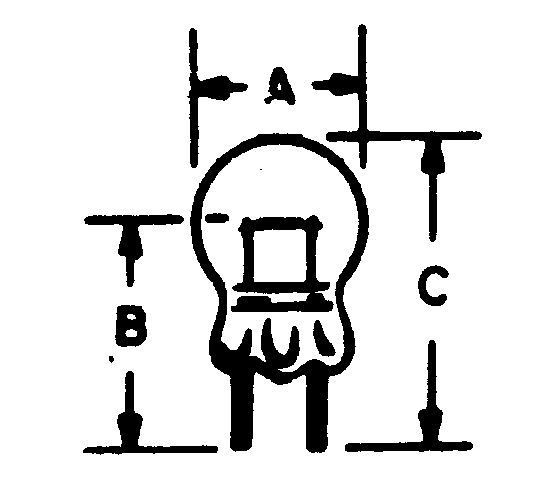

7/16" | 5/8" | 11/16" | G-3 1/2 |
2-Pin (Miniature) |
Small Round |
12 | ||
|

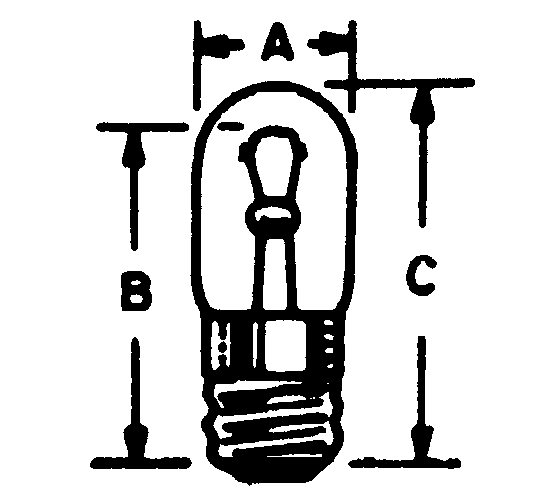

13/32" | 15/16" | 1 3/16" | T-3 1/4 |
Screw (Miniautre) |
Tubular |
40 41 42 46 48 1892 |
||
|

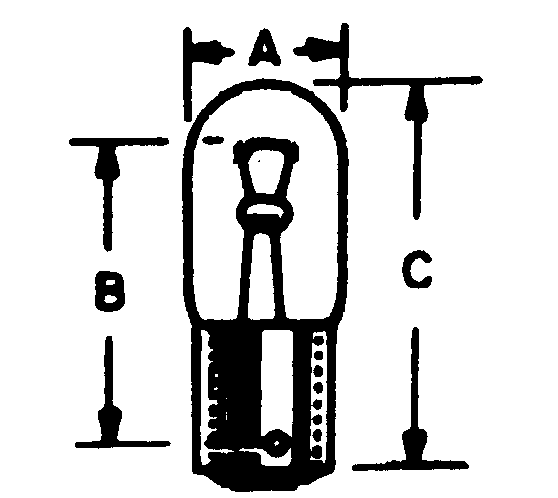

13/32" | 3/4" | 1 3/16 | T-3 1/4 |
Bayonet (Miniature) |
Tubular |
43 44 45 47 49 1490 1891 |
||
|

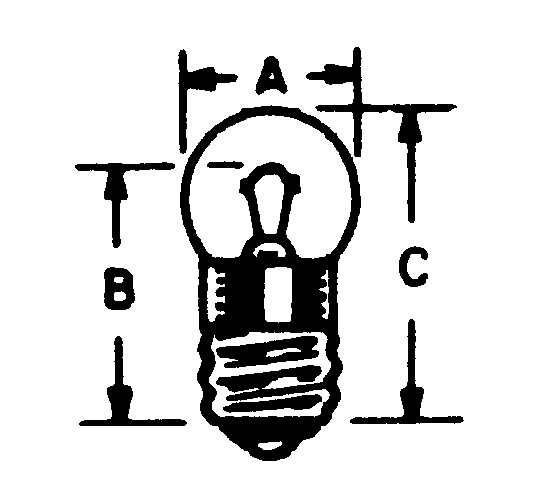

7/16" | 23/32" | 15/16" | G-3 1/2 |
Screw (Miniautre) |
Small Round |
50 | ||
|

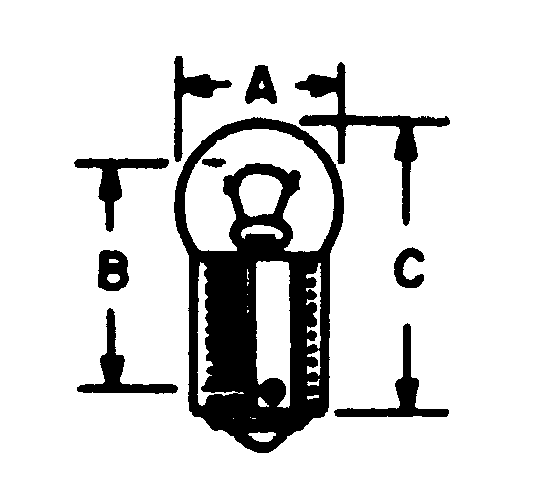

7/16" | 1/2" | 15/16" | G-3 1/2 |
Bayonet (Miniature) |
Small (Miniature) |
51 | ||
|

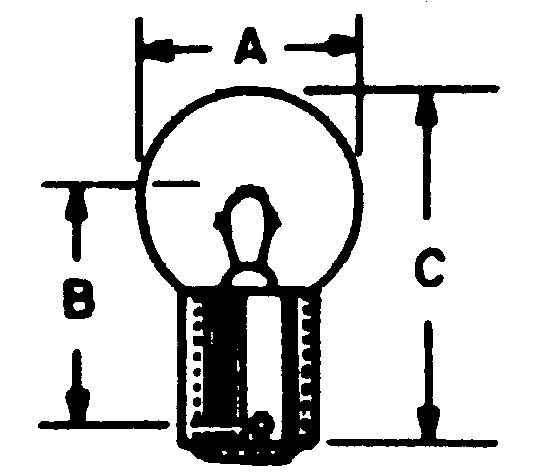

9/16" | 1/2" | 1 1/16" | G-4 1/2 |
Bayonet (Miniature) |
Large Round |
55 57 |
||
| 5/8" | 5/8" | 1 3/16" | G-5 |
Bayonet (Miniature) |
Large Round |
1458 | |||
|

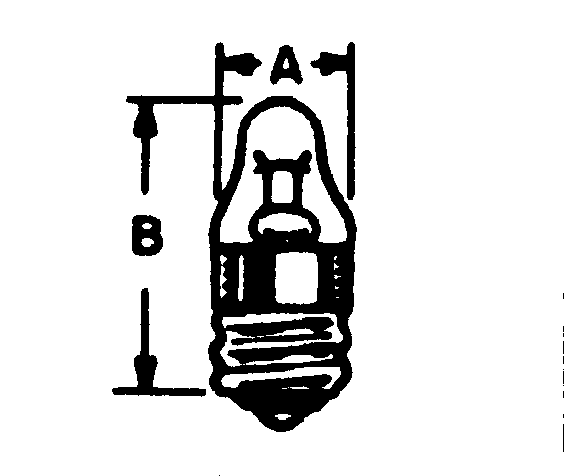

3/8" | --- | 15/16" | TL-3 |
Screw (Miniature) |
Pinched (Miniature) |
112 222 |
||
|
