How does an open base transistor affect collector voltage? Can you tell what's open in a transistor circuit by what's happened to the element voltages?

When you  work with tubes, you know that, if the plate voltage is the same as the supply voltage, the cathode resistor is almost certainly open. Why not learn the same diagnostics for transistors?

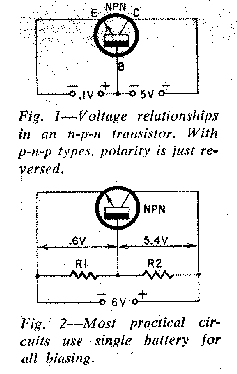

Look at Fig. 1. A basic n-p-n transistor circuit. Here, the collector voltage will always be the most positive, while the emitter voltage will be the most negative. The base will be biased so that it is slightly positive with respect to the emitter, and negative with respect to the collector.

The same relationship will hold true for the p-n-p transistor except that the polarity of the voltages will be reversed.

One battery supply

For simplicity, two batteries are shown in Fig. I. Most practical circuits use an arrangement like that in Fig. 2 to obtain the operating voltages from a single battery.

In this arrangement, the collector is connected to one end of the battery and the emitter to the other end. The base is forward-biased with respect to the emitter by tapping off a part of the battery voltage via RI and R2. Polarity depends on whether an n-p-n or p-n-p transistor is being used.

Most technicians find it easiest to measure voltages from ground to the various transistor elements. This is quite acceptable. However. when a power supply like the one in Fig. 2 is used, either end of thc battery may be grounded.

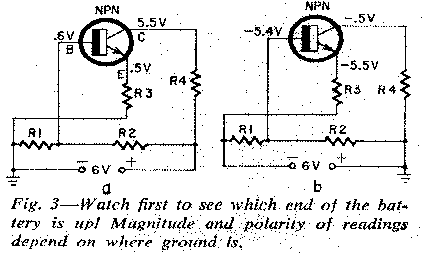

Fig. 3-a shows an n-p-n transistor circuit with the negative side of the battery grounded. Fig. 3-b shows the same circuit with the positive side grounded. The voltages measured at the various elements differ not only in value, but also in polarity, depending on which end of the battery is grounded.

For instance, the collector voltage in Fig. 3-a measures + 5.5 from ground. The collector voltage in Fig. 3-b measures -0.5 from ground. So be sure to note which end of the battery is grounded before you begin measuring.

##### Open base circuit

Fig. 4-a shows the effect an open  base circuit has on the operating voltages of an n-p-n transistor. The uncircled values show the normal operating voltages, while the circled values show the voltages measured from ground with the defect.

The collector voltage has increased. This happens because, with the base circuit open, the base-to-emitter bias disappears and the collector circuit stops conducting. When the collector is not conducting, no current flows through R4 and there is no voltage drop across it. As a result, the collector voltage rises to the battery voltage.

Since the collector has stopped conducting, there is no appreciable current flow through R3 and no voltage drop across it, either. Thus, the emitter voltage falls to zero.

The base voltage becomes zero because it is no longer connected to its operating voltage.

In the p-n-p circuit of Fig. 4-b, an open base resistor has quite a different effect on the operating voltages. The collector voltage has dropped to zero, and the base and emitter voltages have risen to the full battery voltage.

This is because the battery polarity has been reversed, compared to the n-p-n circuit of Fig. 4-a, to supply the proper operating voltages for a p-n-p transistor. As a result, when you measure between collector and ground, you are reading the drop across R4. With thc base circuit open, there is no drop across this resistor because there is no collector current, and you measure zero voltage.

When you put the probes from ground to emitter, the battery voltage, less the drop across R3, is being measured. But since the collector circuit has stopped conducting, there is no drop across R3. As a result, you find the full battery voltage at the emitter.

The base circuit is open and no longer connected to its operating voltage, yet it measures the same voltage as the emitter voltage. This happens because a transistor has a low internal resistance between base and emitter, so the base rises to the emitter voltage.

Open emitter circuit

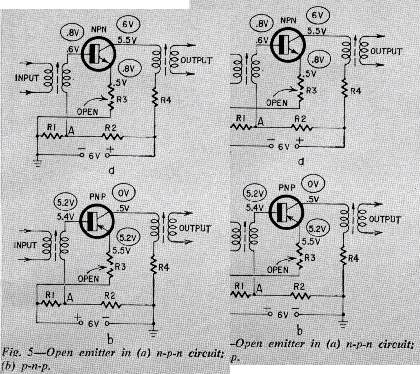

Fig. 5-a shows tile effect of an open emitter circuit. The collector stops conducting and there is no current in the collector circuit. This results in no voltage drop across R4. With no drop across R4, the full battery voltage appears at the collector.

The open emitter circuit also stops the slight current flow in the base emitter circuit. When this current flow is stopped, the voltage at point A rises slightly, causing the base voltage to rise also (go more positive).

The open emitter, because of the low internal resistance of the transistor, then assumes the base voltage.

In Fig. 5-b a p-n-p transistor with an open emitter circuit is shown. Here, the collector voltage is zero because there is no current flow in the collector circuit, and no voltage drop across R4.

The base voltage in this case has dropped slightly. As with the n-p-n transistor, a slight base-to-emitter current flows through RI. When the emitter--base circuit is open, this current flow stops and the voltage at point A drops slightly (goes less positive). This causes the base voltage to drop. The open emitter then assumes the base voltage.

##### Open collector circuit

Fig. 6 shows the effect an open collector circuit will have on the normal operating voltages of a transistor. In both the n-p-n and the p-n-p circuits, the emitter and collector voltages have become equal. The base voltage has changed very little.

Since the collector circuit is open, no current flows through it and the collector voltage rises or drops to the same voltage as the emitter.

Because of the large change in the collector voltage, and only a small change in emitter and base voltages, the defect is clearly in the collector.
