Tactical Interoperability Exercise
New Mexico Preparedness Area #1
Ham Radio “After Action Report”
Roswell/ Chaves County

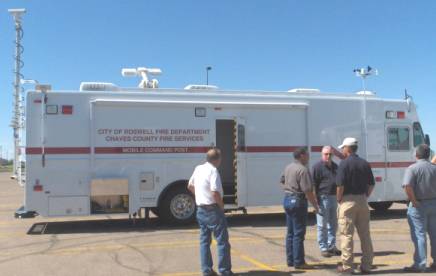

Mobile Command Post
ARES HF Net Control

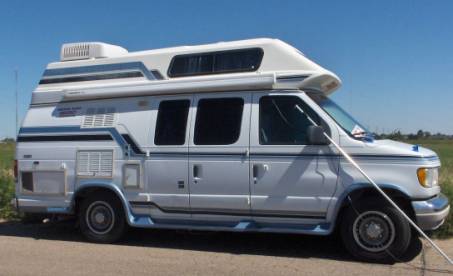

Vehicle – W5ALL
(NVIS antenna in field behind van)
ARES VHF/UHF Net Control

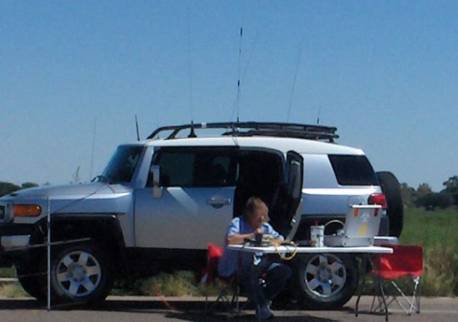

Vehicle – W5TIC
Date: Tuesday, 25 September 2007
Time: 1315 to 1445 MDT
Where: Nine-county area – Guadalupe, Quay, De
Baca, Curry, Lincoln,
Chaves, Roosevelt,
Eddy, and Lea Counties – plus the State EOC in Santa Fe.
Who: Hams from the nine-county area and the State EOC in Santa Fe --
plus some hams from
other New Mexico Counties, Texas, and Arizona.
W5TIC VHF/UHF net control
Roswell. W5ALL HF and digital data net
control, Roswell.
KKFXZ and K5RIC
Lincoln County net controls.
Plan: Scroll
down for plan.
Results: All
SOP ARES frequencies and repeaters were tested. A link between ARES VHF and
Public Safety VHF was
established using ACU -1000 equipment.
With one exception, the
ARES portion of the exercise went as planned.
The one exception was we
were unable to establish a direct MT63 data circuit between
Roswell and the Santa
Fe EOC on either 80 meters or 40 meters HF.
We were,
however, able to
establish an excellent 40 meter MT63 circuit between Roswell and
Aztec (in the
Four-corners area of New Mexico). Data
could presumably have been
relayed from Aztec to
Santa Fe by ham radio, Internet or other means.
As an alternative to the
MT63 mode, we sent data from Roswell to the State EOC using
145.01 MHz TelPac
packet and the WL2K system. We also
communicated with the
State EOC in Santa Fe
a number of times by voice, utilizing the Mega Link ham repeater system.
Problems:
Aside from the problem with HF
direct to the EOC, the only other problem was a very
high acoustic noise
level at the net control location. W5TIC had a hard time hearing.
There were five
generators and more than five air-conditioners making noise in the
immediate area. Plus, there were numerous conversations and
vehicle traffic.
Headphones with a
boom mike would have helped.
The 40 Meter SSB sub-band
was “long,” requiring a rely from a N5TW in Georgetown, TX.
Statistics: The
following tables delineate the hams who participated via the various repeater
systems and frequencies. There were a total of 186 check-ins to the
various ham radio
nets (a number of
hams checked into more than one net).
-------------------------------------------------------------------------
Participant Totals
Repeater Name |
Frequency |
Repeater Location |
No. of Participants |
|
|
|
|
Mega
Link Sys WA5IHL |
Various |
Various
throughout NM |
45 |
Capitan
Mtn. W5YFN |
146.610
MHz |
Top
of Capitan Mountain |
30 |
Caprock W8QD |
147.180
MHz |
KOB-R
tower near Caprock, NM |
29 |
Buck
Mtn. K5RIC |
146.980
MHz |
Top
of Buck Mountain |
26 |
FLETC W5COW |
444.975
MHz |
Approx.
7 Mi east of Artesia |
19 |
Roswell W5BLO |
146.940
MHz |
W.
Mc Gaffey Rd, Roswell |
11 |
75
Meter HF |
3939.00
kHz |
No
repeater used |
8 |
40
Meter HF |
7236.50
kHz |
No
repeater used |
14 |
40
Meter MT63 |
7103.50
kHz |
No
repeater used |
2 |
Telpac
Node W5ALL-9 |
145.010
MHz |
Estrellita
Dr, Roswell |
2 |
Details by Repeater/Frequency
Repeater Name |
Frequency |
Ham Callsign |
Ham Location |
County |
|
|
|
|
|
Buck Mtn. K5RIC |
146.980 MHz |
KE5IAY |
Lake
Arthur |
Chaves |
|
|
KE5IDY |
Mobile |
Chaves |
|
|
W0FOE |
Portable
Roswell |
Chaves |
|
|
W5ALL |
Roswell |
Chaves |
|
|
W5BLO |
Mobile
Roswell |
Chaves |
|
|
KB5UFU |
Artesia |
Eddy |
|
|
KE5YD |
Artesia |
Eddy |
|
|
W5COW |
Hope |
Eddy |
|
|
AB5JR |
Loma
Grande |
Lincoln |
|
|
K5FBK |
Roswell
(Mobile Command) |
Lincoln |
|
|
K5JWE |
Alto |
Lincoln |
|
|
K5OI |
Ruidoso |
Lincoln |
|
|
K5RIC/M |
Mobile |
Lincoln |
|
|
K5YQ |
Ruidoso |
Lincoln |
|
|
KA5SKF |
Mobile
Hondo |
Lincoln |
|
|
KD5NDK |
Ruidoso |
Lincoln |
|
|
KE5MWK |
Mobile |
Lincoln |
|
|
KE5MWM |
Mobile |
Lincoln |
|
|
KE5OIE |
Mobile |
Lincoln |
|
|
KK5XZ |
Ruidoso |
Lincoln |
|
|
W0ZW |
San
Patricio |
Lincoln |
|
|
W5ZIT |
Ruidoso |
Lincoln |
|
|
W6RQR |
Ruidoso
Downs |
Lincoln |
|
|
WA6IFF |
Cherry
Creek |
Lincoln |
|
|
N7DRB |
Alamogordo |
Otero |
|
|
W5GEM |
James
Canyon |
Otero |
Mega Link |
VHF/UHF |
KE5IHC |
Mobile |
Bernalillo |
|
|
NM5BC |
Albu.
Bernalillo Co EOC |
Bernalillo |
|
|
WX5ABQ |
Albuquerque
Nat.Weather Ser. |
Bernalillo |
|
|
K5FBK |
Roswell
Lincoln Co. MCP |
Chaves |
|
|
KC5MU |
Roswell |
Chaves |
|
|
KE5CWX |
Dexter |
Chaves |
|
|
KE5LEK |
Mobile
Roswell |
Chaves |
|
|
KE5LIY |
Roswell |
Chaves |
|
|
KF4WC |
Roswell |
Chaves |
|
|
N4ILQ |
Roswell |
Chaves |
|
|
N5MMI |
NMMI
Roswell |
Chaves |
|
|
N5UBK |
Mobile
Roswell |
Chaves |
|
|
W5ALL |
Portable
Roswell |
Chaves |
|
|
W5BLO |
Mobile
|
Chaves |
|
|
W5PSA |
Mobile
Roswell |
Chaves |
|
|
W5TIC |
Mobile
Roswell |
Chaves |
|
|
WS5A |
Dexter |
Chaves |
|
|
WA5TYJ |
Grants
Cibola Co. EOC |
Cibola |
|
|
KB0QNW |
Mobile |
Eddy |
|
|
KB5UFU |
Artesia |
Eddy |
|
|
KE5IAY |
Mobile |
Eddy |
|
|
KE5IDX |
Artesia |
Eddy |
|
|
KE5IDY |
Cottonwood |
Eddy |
|
|
KE5WLM |
Mobile |
Eddy |
|
|
KE5YD |
Artesia |
Eddy |
|
|
W5COW |
Hope |
Eddy |
|
|
WB5CFT |
Mobile
|
Eddy |
|
|
KD5ZYN |
Silver
City Grant Co. EOC |
Grant |
|
|
AH2AZ |
Hobbs |
Lea |
|
|
K5OI |
Ruidoso |
Lincoln |
|
|
K5RIC |
Mobile |
Lincoln |
|
|
K5YQ |
Ruidoso |
Lincoln |
|
|
KD5SKF |
Mobile
Hondo |
Lincoln |
|
|
W0ZW |
San
Patricio |
Lincoln |
|
|
W5ENF |
Deming
Luna Co. EOC |
Luna |
|
|
KE5NJG |
Mobile |
New
Mexico |
|
|
KE5AHU |
Mayhill |
Otero |
|
|
K5UT |
Portales
Roosevelt Co. EOC |
Roosevelt |
|
|
KE5ENR |
Mobile
Edgewood |
Santa
Fe |
|
|
KE5HVQ |
Santa
Fe State EOC |
Santa
Fe |
|
|
NM5EC |
Santa
Fe State EOC |
Santa
Fe |
|
|
KE5NKG |
Belen |
Valencia |
|
|
|
|
|
Caprock |
147.180 MHz |
K5FBK |
Portable
Roswell |
Chaves |
|
|
KE5CWX |
Dexter |
Chaves |
|
|
KE5DPI |
Roswell |
Chaves |
|
|
KE5LEK |
Mobile
Roswell |
Chaves |
|
|
KF4WC |
Mobile
Roswell |
Chaves |
|
|
N4ILQ |
Mobile
Roswell |
Chaves |
|
|
N5MMI |
NMMI
Roswell |
Chaves |
|
|
N5UBK |
Mobile
Roswell |
Chaves |
|
|
W5ALL |
Portable
Roswell |
Chaves |
|
|
W5BLO |
Roswell |
Chaves |
|
|
W5PSA |
Mobile
Roswell |
Chaves |
|
|
W5TIC |
Mobile
Roswell |
Chaves |
|
|
WB0QNW |
Mobile |
Chaves |
|
|
WS5A |
Dexter |
Chaves |
|
|
KB5CFT |
Mobile |
Eddy |
|
|
KB5UFU |
Artesia |
Eddy |
|
|
KE5IAY |
Mobile |
Eddy |
|
|
KE5IDX |
Artesia |
Eddy |
|
|
KE5IDY |
Cottonwood |
Eddy |
|
|
KE5NJG |
Mobile |
Eddy |
|
|
KE5WLM |
Mobile |
Eddy |
|
|
KE5YD |
Mobile
Artesia |
Eddy |
|
|
AH2AZ |
Hobbs |
Lea |
|
|
K5OI |
Ruidoso |
Lincoln |
|
|
K5RIC |
Mobile |
Lincoln |
|
|
K5YQ |
Ruidoso |
Lincoln |
|
|
KD5SKF |
Mobile
Hondo |
Lincoln |
|
|
W0ZW |
San
Patricio |
Lincoln |
|
|
KE5AHU |
Mayhill |
Otero |
|
|
|
|
|
Roswell W5BLO |
146.940 MHz |
KB0QNW |
Mobile
Roswell |
Chaves |
|
|
KE5DPI |
Roswell |
Chaves |
|
|
KE5IAY |
Mobile |
Chaves |
|
|
KE5IDY |
Mobile |
Chaves |
|
|
KF4WC |
Mobile
Roswell |
Chaves |
|
|
N4ILQ |
Mobile
Roswell |
Chaves |
|
|
N5MMI |
NMMI
Roswell |
Chaves |
|
|
N5UBK |
Mobile
Roswell |
Chaves |
|
|
W5ALL |
Portable
Roswell |
Chaves |
|
|
W5BLO |
Roswell |
Chaves |
|
|
W5TIC |
Mobile
Roswell |
Chaves |
|
|
|
|
|
TelPac Packet |
145.01 MHz |
N5RKE |
Albuquerque |
Bernalillo |
|
|
WA5WHN |
Albuquerque |
Bernalillo |
|
|
W5ALL |
Roswell |
Chaves |
|
|
|
|
|
Capitan |
146.610 MHz |
K9ARO |
Mobile
Saint Johns, AZ |
Arizona |
|
|
W7OTA |
Mobile
Show Low, AZ |
Arizona |
|
|
N5IRC |
Albuquerque |
Bernalillo |
|
|
KB0QNW |
Mobile |
Chaves |
|
|
KE5CWX |
Dexter |
Chaves |
|
|
KE5DPI |
Roswell |
Chaves |
|
|
KE5LEK |
Mobile
Roswell |
Chaves |
|
|
KE5NJG |
Mobile |
Chaves |
|
|
KF4WC |
Mobile
Roswell |
Chaves |
|
|
N0FOE |
Portable
Roswell |
Chaves |
|
|
N4ILQ |
Mobile
Roswell |
Chaves |
|
|
N5MMI |
NMMI
Roswell |
Chaves |
|
|
N5UBK |
Mobile
Roswell |
Chaves |
|
|
W5ALL |
Portable
Roswell |
Chaves |
|
|
W5BLO |
Mobile
Roswell |
Chaves |
|
|
W5TIC |
Mobile
Roswell |
Chaves |
|
|
WS5A |
Dexter |
Chaves |
|
|
KB5UFU |
Artesia |
Eddy |
|
|
KE5IAY |
Mobile |
Eddy |
|
|
KE5IDY |
Cottonwood |
Eddy |
|
|
KE5YD |
Mobile
Artesia |
Eddy |
|
|
W5COW |
Hope |
Eddy |
|
|
AB5JR |
Mobile |
Lincoln |
|
|
K5RIC |
Mobile |
Lincoln |
|
|
KD5SKF |
Mobile
Hondo |
Lincoln |
|
|
KE5MWK |
Mobile |
Lincoln |
|
|
KE5MWM |
Mobile |
Lincoln |
|
|
W0ZW |
Mobile |
Lincoln |
|
|
W6RQR |
Capitan |
Lincoln |
|
|
W5GEM |
Mobile
Cloudcroft |
Otero |
|
|
|
|
|
FLETC W5COW |
444.975 MHz |
KB0QNW |
Mobile |
Chaves |
|
|
KE5CWX |
Dexter |
Chaves |
|
|
KE5DPI |
Roswell |
Chaves |
|
|
KE5LEK |
Mobile
Roswell |
Chaves |
|
|
KE5NJG |
Mobile |
Chaves |
|
|
KF4WC |
Mobile
Roswell |
Chaves |
|
|
N4ILQ |
Mobile
Roswell |
Chaves |
|
|
N5MMI |
NMMI
Roswell |
Chaves |
|
|
N5UBK |
Mobile
Roswell |
Chaves |
|
|
W5ALL |
Portable
Roswell |
Chaves |
|
|
W5BLO |
Roswell |
Chaves |
|
|
W5TIC |
Mobile
Roswell |
Chaves |
|
|
KE5IAY |
Mobile |
Eddy |
|
|
KE5IDY |
Cottonwod |
Eddy |
|
|
KE5WLM |
Mobile |
Eddy |
|
|
KE5YD |
Artesia |
Eddy |
|
|
W5COW |
Portable
Hope |
Eddy |
|
|
WB5CFT |
Mobile |
Eddy |
|
|
KD5SKF |
Mobile
Hondo |
Lincoln |
|
|
|
|
|
75 Meter HF |
3939.00 kHz |
W5ALL |
Roswell |
Chaves |
|
|
KE5YD |
Artesia |
Eddy |
|
|
W5COW |
Hope |
Eddy |
|
|
AB5JR |
Nogal |
Lincoln |
|
|
K6YQ |
Ruidiso |
Lincoln |
|
|
W0ZW |
San
Patricio |
Lincoln |
|
|
N7DRB |
Alamogordo |
Otero |
|
|
W5GEM |
Mountain
Park |
Otero |
|
|
|
|
|
40 Meter HF |
7235.50 kHz |
KE5DPI |
Roswell |
Chaves |
|
|
W5ALL |
Roswell |
Chaves |
|
|
W5ROY |
Clovis |
Curry |
|
|
KE5YD |
Artesia |
Eddy |
|
|
W5COW |
Hope |
Eddy |
|
|
AH2AZ |
Hobbs |
Lea |
|
|
AB5JR |
Loma
Grande |
Lincoln |
|
|
K5RIC |
Mobile |
Lincoln |
|
|
K5YQ |
Ruidoso |
Lincoln |
|
|
N7DRB |
Alamogordo |
Otero |
|
|
W5GEM |
Cloudcroft |
Otero |
|
|
KA5BQG |
Brownfield,
TX |
Terry |
|
|
N5TW |
Georgetown,
TX |
Travis |
|
|
|
|
|
40 Meter HF MT63 |
7103.50 kHz |
W5ALL |
Roswell |
Chaves |
|
|
W5OXK |
Aztec |
San
Juan |
|
|
|
|
|
Telpac – WL2K |
145.010 MHz |
W5ALL |
Roswell |
Chaves |
|
|
State
EOC |
Santa
Fe |
Santa
Fe |
-------------------------------------------------------------------------
NM Preparedness Area #1 Tactical Interoperability Exercise
-- Ham Radio Plan --
Date: Tuesday, 25 September 2007
Time: 1315 to 1445 MDT
Where: Nine-county area – Guadalupe,
Quay, De Baca, Curry, Lincoln,
Chaves,
Roosevelt, Eddy, and Lea Counties.
Two Public Safety
Mobile Command Posts and two Ham Communication
Vehicles, in
the far northeast corner of the Roswell Mall rear parking lot.
The State EOC in
Santa Fe.
Who: Hams from the nine-county area, the State EOC in
Santa Fe, and
Area #1 FD,
PD, EMS, and EM personnel.
Stations
from other parts of New Mexico and West Texas are welcome to
check-in at
the end of each nine-county roll-call.
What: Ham radio operators will check-in with the Roswell
net control from wherever
they happen
to be. The hams will check-in with
their callsign only when their
county is
called -- then wait to be recognized.
They will be asked for
their name
and location. The net will then move to the next frequency and the
check-in
process will be repeated, with name and location requested only
from hams who
did not check-in on one of the previous frequencies.
There
will be no formal traffic passed, except for three or four messages
between the
Roswell Command Post location and the State EOC in
Santa
Fe.
Frequencies: We will test all of our SOP frequencies.
We
will start on the MegaLink at 1315, where we will quickly take check-ins
from all nine
counties and give instructions to all stations. We will move to
the 147.18
Caprock repeater and then on to the various other frequencies.
HF voice and data
traffic will be passed between the Roswell Command
Post location
and the State EOC in Santa Fe on 75/80 M and/or 40 M. If
stations in
the nine-county area want to join in on HF, they are welcome to do
so. Just remember, the HF nets are also
controlled nets.
The W5ALL-9 TelPac/WL2K node on 145.01 MHz will be
used to pass
messages
between the Roswell Command Post and “Blackberry Devices” at
the State
EOC.
Special: There will be an ACU-1000 class in
the Roswell Mall conference room at
1030 and a
demonstration will follow at one of the Command Posts in the
parking
lot. The ACU-1000 ties together radio
systems that are otherwise
incompatible. Sort of like tying ham radios into the
telephone system with
phone patches
or into the Internet with EchoLink.
This provides
“Interoperability.”
Summary: We will have a controlled net
of ten to twenty-five hams from the nine-
county area
-- with the net moving from one frequency to the next until we
have verified
our capability on all frequencies. The time spent on any one
frequency
will be just long enough for all the hams to check-in with their call-
sign, name,
and location.
Some
frequencies will have more hams participate than others because of
license,
equipment, and repeater coverage limitations. Net control will be
from a
self-sustained com van on generator power and a mobile "storm
chase"
vehicle on battery power – both parked near the Area #1 Mobile
Command Post.
We
ask the hams, where possible, to either use emergency power or
operate
mobile.
We
will demonstrate that hams from various jurisdictions (counties) have
in common the
necessary equipment and frequencies to reliably
communicate
on short notice. We will demonstrate our
capability to
communicate
directly with the State EOC from a mobile command post,
using ham
radio.
Background: This summer a Tactical Interoperability
Communication Plan was prepared
for the New
Mexico Department of Homeland Security & Emergency
Management
(DHSEM). This plan includes police,
fire, EMS, EM and Ham
radio
communication for the nine counties in Area #1. An Interoperability
Test is
required after these plans are completed.
