Setup:

  • 10, 15, and 20 meters (Click on thumbnail for full size image)

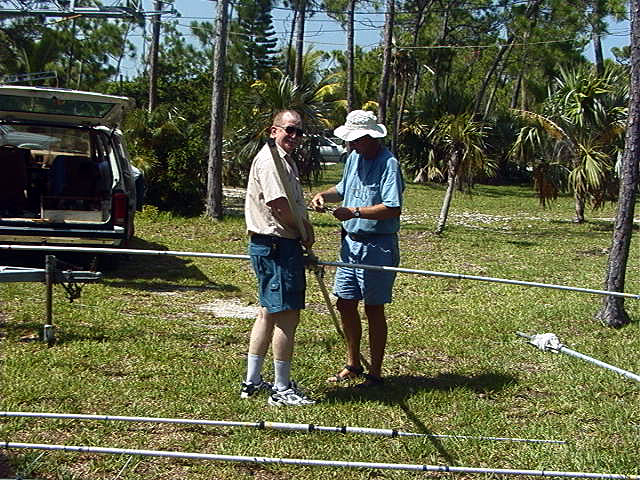

Assembly of the tri-bander




Attaching the rotator

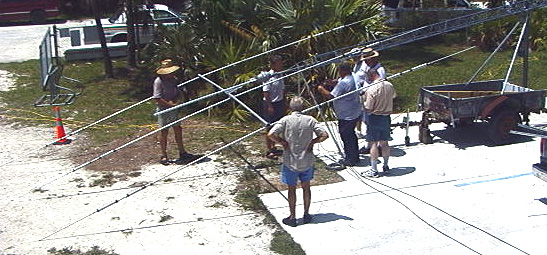

Attaching the Antenna to the mast




Time for prayer as the tower goes up

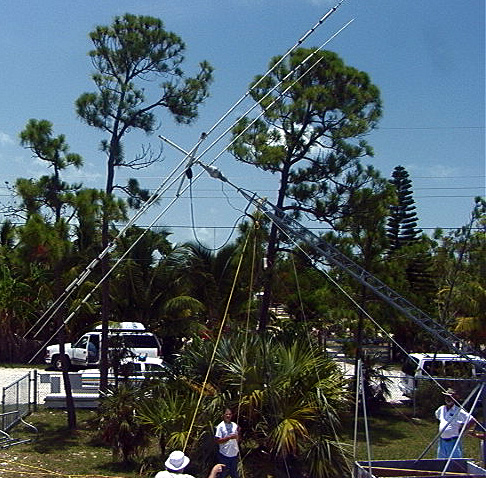

Tower going up!




Adjusting the guys




Partially up




Fully up.



  • 2 and 6 meters (Click on thumbnail for full size image)

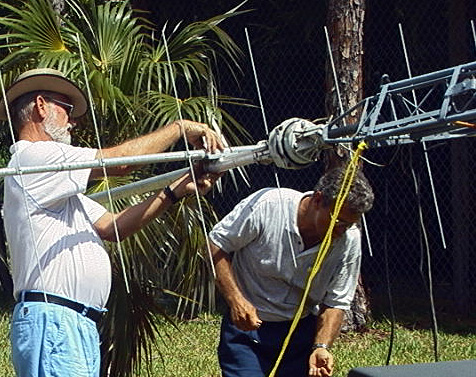

Attaching the antennas

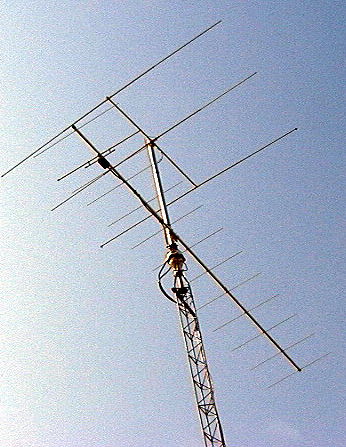

Antennas




Tower pray time




Tower going up




Tower up



  • 40, 80, and 160 meters (Click on thumbnail for full size image)

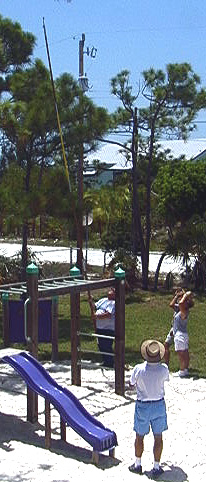

Getting those birds off the antenna




Maybe we can poke the birds off




All else having failed, L.T. supports the dipole for 24 hours while shaking it to get the birds off
