The Antennas

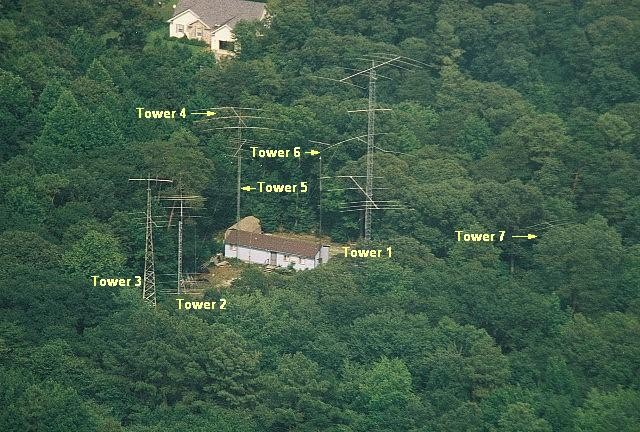

As you can see, W3PP is in a heavily wooded area. This arial photo does not show all the antennas, and some are at or below the trees. See notes.

Click on a tower button to see antenna pix


130' Rohn 65

5EL20 @ 132'
9EL440 @ 128
Ringo2 @ 115'
5EL20 @ 65'
3EL15 @ 47'
3EL20 @ 37'
4EL10 @ 27'


70' Hazer

5EL15 @ 80'
5EL15 @ 43'
2EL40 NVIS
@ 25'over 8'




60' Rohn SSV

4EL10 @ 65'
4EL10 @ 45'






85' Rohn 25

3EL40 @ 86'
160 1/2 Sloper
80 1/2 sloper





48' AB-577

6EL10 @ 50'








60' AB-621

10EL440 @ 65'
40 Delta
Loop @ 60'


60'AB-621

2EL40 @ 64'
80 Inverted
Vee @ 48'


48' AB-577

3EL20 @ 50'
(not shown)


48' AB-577

4EL15 @ 50'
(not shown)


20' Aluminum

10/15/20 GP
(not visible)



3EL 80 @ 85'
80 Cage GP
Beverages

650' NE
400' E/W
400' SSE
540' WSW
700' NNW

Current Notes:

     Lots of changes since this photo was taken.  The 2 El 40 was removed from Tower 1.  Tower 8 is located between Towers 1 and 3.  Tower 9 is between Tower 8 and the shack.  This summer will bring on more changes. I plan to make the 4/4 10M stack a 5/5 stack.
