SCR-584
The SCR-584
Army Mobile Radar Unit was one of the most versatile,
accurate, and successful hardware systems used in WWII.
The automatic tracking and fire control system and an M-9
gun director computer. It was designed to control a
battery of four 90-mm antiaircraft guns, and was also
used to direct blind flying bombers, fighters, and
reconnaissance planes in overcast weather, giving the
target, dive angle, and bomb release pointfrom the remote

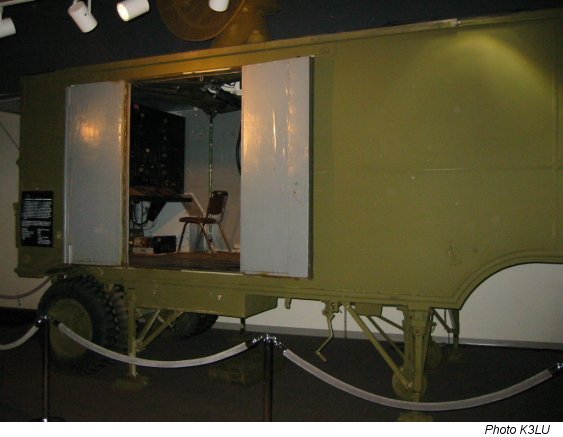

radar site. Trailer mounted, an elevator lowers the
antenna inside for traveling and the entire system can be
set up, or travel ready, in 30 minutes.
The SCR-584
played a vitalrole at the battle of Salerno, Italy, at
Anzio beachhead, in the coastal defense of England, on
D-Day in Normandy, in the Battle of the Bulge and in the
Pacific Theatre.
Frequency:
Pulse Power:
Maximum Range Search:
Maximum Range, Track:
Range Accuracy:
Angular Accuracy:
Weight:
Trailer:
|
2700-2900
megacycles 300 kW
40 miles
18 miles
+/- 2 yards
+/- 1 mil = 0.006 degree
18,500 lbs
10' height, 19.5' length; small
enoughto clear the hatch of a victory
ship
|
|
|
