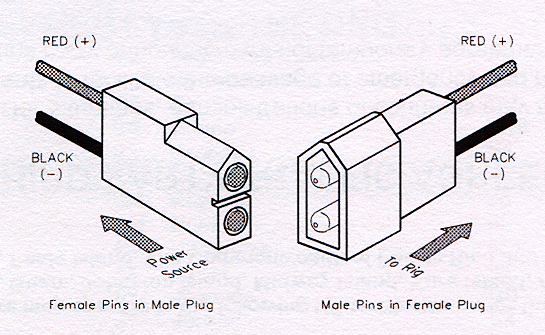

Old Style Molex DC Power Connector


Connector is Molex Series 1545.  Always check for proper polarity prior to connecting radio equipment to power supplies.

   Back to Emergency Communications Page
These images are from the ARES Field Manual, published by the American Radio Relay League, page 68.

(courtesy Mecklenburg County, NC, ARES)
