Philips Amateur Radio Club

Field Day 2004

Phil, W1PW, operated W1HP in Arizona as a 1B-Battery station, in White Tanks Mountain Regional Park, in Maricopa County.  Two antennas were used: a 30 foot vertical and an 80M Inverted V tunable for 40M and 20M, both held up by 30 foot fiberglass poles.

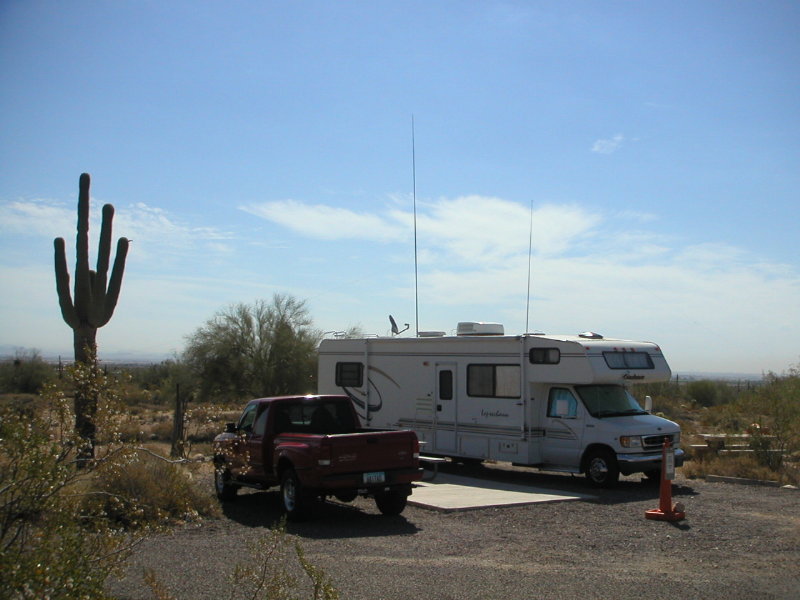

rv setup.JPG (84517 bytes)
Phil's Campsite

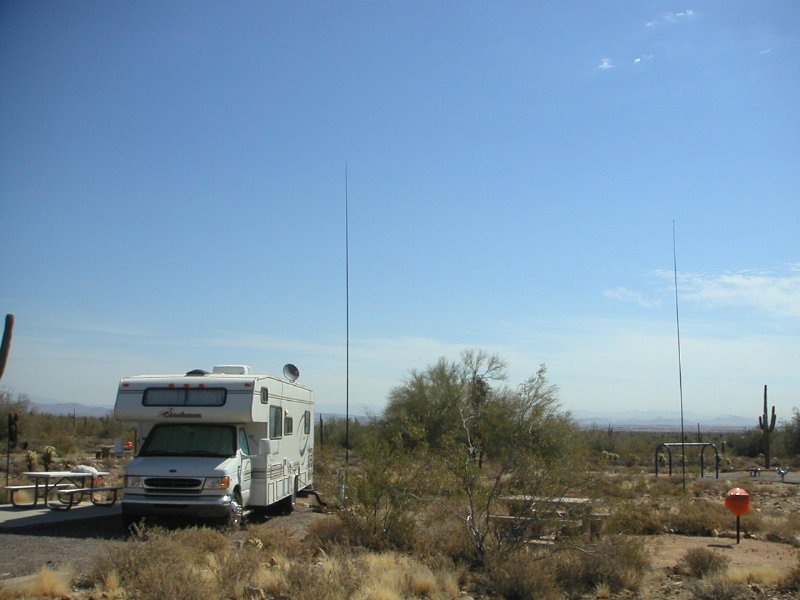

rv with both poles 3.JPG (77032 bytes)
The RV and the two poles

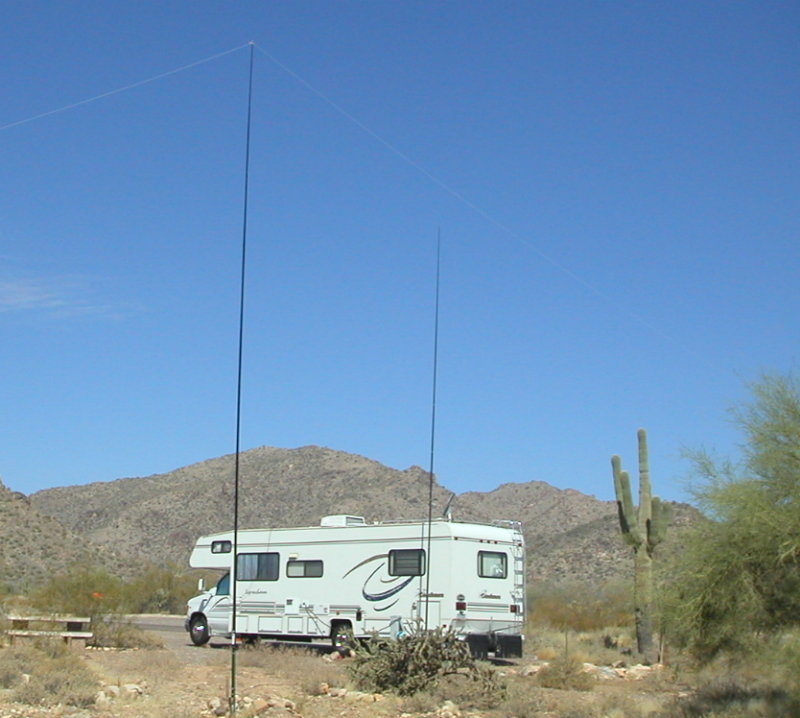

rv with both poles.JPG (89414 bytes)
Another shot of the desert setup

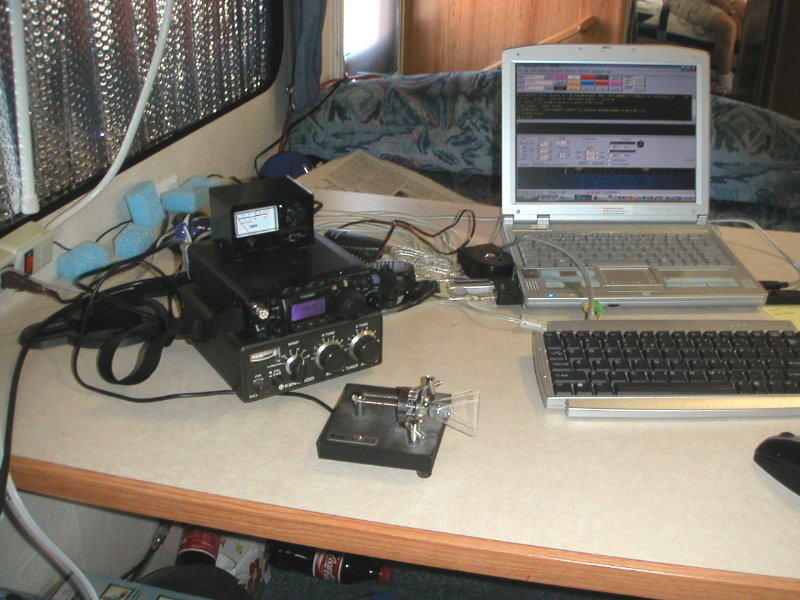

rigphoto 1.JPG (119906 bytes)
The Rig - an FT-817



solar charging 2.JPG (151882 bytes)
The solar charging system

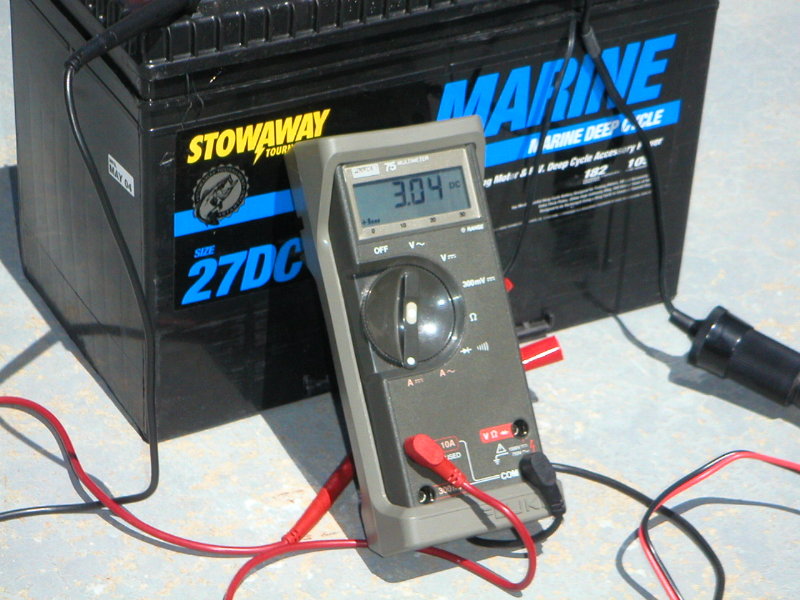

12 volts 3 amps.JPG (116451 bytes)
12 Volts at 3 Amps
