PRC-25/RT-505B VHF FM Military Radio

¡@

¡@

¡@

¡@

¡@

RT-505B/PRC-25 all solid state backpack transceiver, Frequency range from 30-76 MHz, 50 KHz spacing. Radio has two bands, low 30 to 52.95 MHz and high 53 to 75.95 MHz. Power output 1.1 watt to 2 watt, with squelch tone 150 Hz.

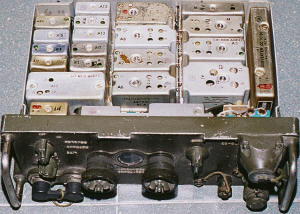

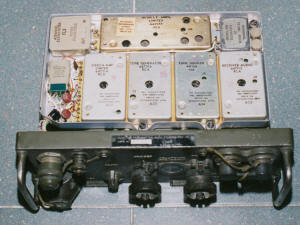

RT-505B/PRC-25 has modified A25 audio Module.

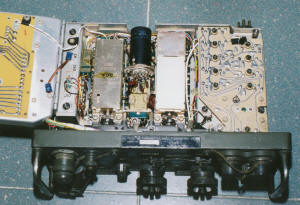

The radio is transistorized except 2DF4 tube in final amplifier. PRC25 was widely used in the1960s and was replaced by PRC-77 in the end of 1960.

¡@

¡@

¡@

Technical Specification:

Mode: FM (Voice)

Frequency Bands: 30-52.95MHz,

                           53-75.95MHz

Frequency Control: Master Oscillator

Antenna: Whip

Number of Channels: 920

Separation: 50KHz

Polarization: Vertical

Max Transmission Range: 5 Miles

Transmitter RF Output: 1 to 1.5 Watt

S/N Ratio: 50 dB

Selectivity: 200KHz Max, 38KHz Min

Sensitivity: 0.6 micro Volt

Power Supply: 12.5 Volts

Temperature Range: -40 to -70C

Weight: 24lb

¡@
