The  Vee  Beam  Antenna

If  you're  lucky  enough  to  have  the  room,  perhaps  you  may  like  to  put  up  a  multiband  Vee  Beam  antenna  for  the  HF  bands.

The  dimensions  of  this  antenna  were  provided  by  Nick,  VE3OWV...  Each  leg  is  300  feet  in  length...  I  used  galvanised

   fencing  wire  with  the  ends  spaced  170  feet  apart...  This  is  an  unterminated  Vee  Beam  which  can  be  used  as  a

  bidirectional  antenna...  If  each  end  is  connected  to  earth  through  a  600  ohm  non  inductive  resistor  the   antenna  is  called  a

  terminated  Vee  Beam  and  the  front  to  back  ratio  approaches  about  3 S  points...  Even  so  the  gain  is  slightly  less  than

  the  unterminated  type...



The  layout  of  the  antenna  and  a  radiation  pattern  of  an  unterminated  Vee  Beam...





For  ease  of  construction,  I  sloped  the  antenna  because  of  the  height  of  the  trees...  The  trees  here  are  not  very  high  so  the

antenna  runs  from  about  28  to  5  feet  in  height..  The  direction  in  which  the  antenna  runs  must  be  carefully  considered  as  it

  has  a  narrow  beamwidth,  especially  on  the  higher  bands...

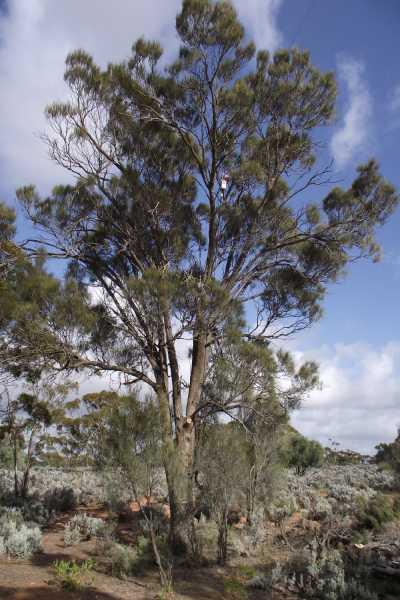

The  tree  in  which  the  feedpoint  is  located...



  If  the  ends  are  not  terminated  but  left  open,  the  SWR  is  higher  across  the  HF  bands  and  an  external  tuner  and  tuned

  feeders  may  be  needed  to  match  it  to  the  transmitter  on  all  bands...

  The  feedpoint  impedance  is  about  600  ohms,  so  I  used  a  600  to  50  ohm  balun  (12  to  1)  at  the  feedpoint  and  ran

  50  ohm  coax  to  the  radio...

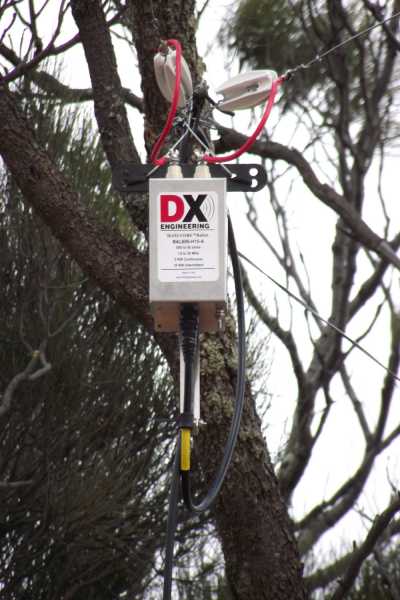

The  600  ohm  (12  to  1)  balun...





In  my  case  the  SWR  on  the  40  and  80  metre  bands  is  very  high  and  on  the  30  metre  band  about  4  to  1...

  On  the  20, 17, 15, 12  and  10  metre  bands  the  SWR  of  the  antenna  is  about  2  to  1  or  less  and  the  inbuilt

antenna  tuner  of  my  transceiver  (an  Icom  IC-7600)  is  able  to  match  it  to  the  radio..



One  end  of  the  antenna  wire...



 Even  though  the  SWR  of  the  antenna  on  the  lower  bands  is  very  high,  the  internal  ATU  of  the  IC-7600  is  still  able  to  match

  it  to  the  radio  so  operation  on  all  HF  bands  is  possible  here...  This  may  not  be  the  case  with  some  other  radios  though...

My  other  radio,  a  Yaesu  FT-450  with  an  inbuilt  ATU  is  not  able  to  match  the  antenna  on  the  three  lower  bands...



An  antenna  wire  support  pole...



As  the  frequency  of  transmission  is  increased  the  effective  length  of  the  antenna  is  also  increased  giving  better  performance.

Construction  of  the  antenna  is  straight  forward...  Of  course  the  higher  in  the  air  you  can  get  the  wire  the  better...

  If  you  have  the  room  it  would  be  well  worth  your  while  giving  an  antenna  like  this  a  go...

73  -  Rob  -  VK5SW
