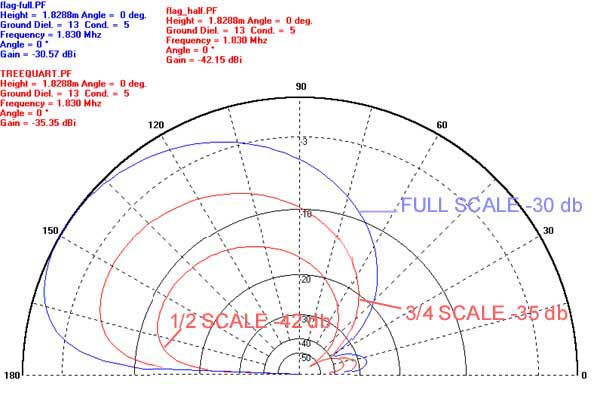

| Zenith pattern
comparisons for scaled flags: Full size: 14'X29', Three quarter size:
22'X11', and Half size: 7'X14.5'.
All models terminated with 1000 ohms, 6 ' high, at 1.835 Mhz. F/B appears to be preserved at all sizes. |
 |
