 MODIFICATIONS TO THE GBC LAMINATING MACHINE FOR PCBS
    MACHINE_FRONT

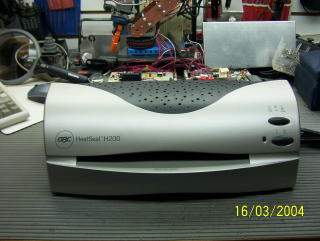

GBC MODEL 95P OR 200 LAMINATING MACHINE

MACHINE REAR       MACHINE_OPEN

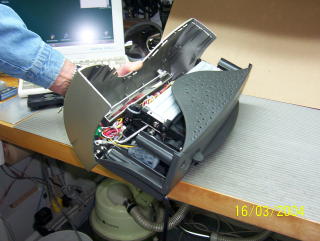

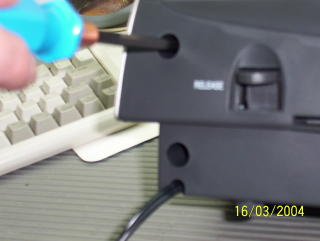

Remove the 4 screws at the back.                                    Lower the front while openning.

MACHINE ROLLERS       MACHINE ROLLERS
Remove the cover.                                                          Remove the rollers, 1 screw on the top.

MACHINE COVER      MACHINE OPEN ROLLERS

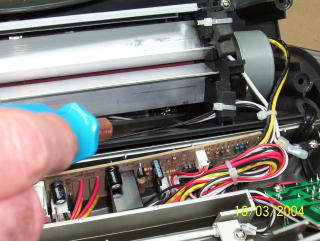

Also 2 screws on the bottom.                                          Do not pull on the bottom wires.

MACHINE SPRING       MACHINE MOTOR

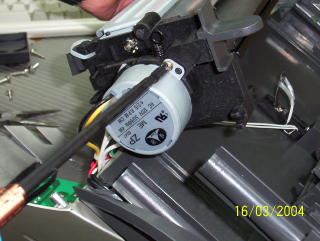

Unhook the motor spring.                                                Remove the 2 screws holding the motor assembly
                                                                                       and the motor.

MACHINE GEARS       MACHINE TAB

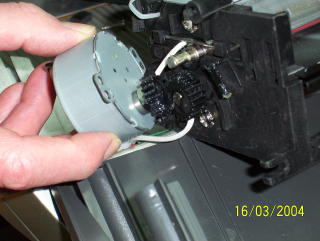

Remove the motor and exchange the gears. The               Cut part of the top tongue of the motor assembly.
flange goes toward the motor.

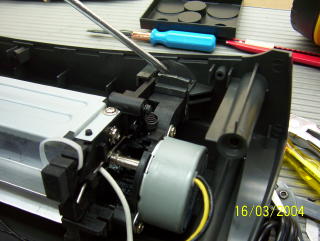

MACHINE GUIDES       MACHINE SLOT
Remove the plastic stoppers on each side of the               Remove 1/8" from the top of the openning.
top of the motor assembly guide.

MACHINE STOPPERS


Remove a small part of the top of the motor assembly guide.


The exchange of the gears will slowdown the rollers to put
more heat on the PCBs.

The others mods are needed to mesh more fully the gears.
Make shure that the motor gear is fully engaged in the roller
gear.
