VE2DWE SATELLITE AMATEUR RADIO STATION  **UNDER CONSTRUCTION**
                           **EN CONSTRUCTION**

YOU LISTEN/ VOUS ECOUTEZ

FIRST EVER RECORDED SATELLITE DSTAR TRANSMISSION ON AO-27 MADE BY MYSELF ON SEPTEMBER 5 2009

PREMIER ENREGISTREMENT  DE MA PREMIÈRE TRANSMISSION DSTAR VIA SATELLITE  SUR AO-27 LE 5 SEPTEMBRE 2009



Back in time forum discussion on:

http://forums.qrz.com/archive/index.php/t-217189.html

http://www.amsat.org/amsat/archive/amsat-bb/200707/msg00037.html

Matthias dd1us web site is also reporting the event plus a lot more:

http://www.dd1us.de/spacesounds%202c.html




















1332Z ao-51 pass Nov-12-2008

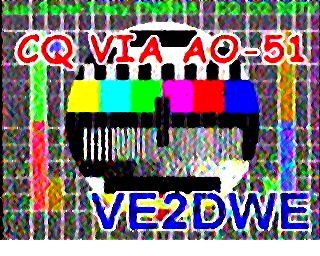

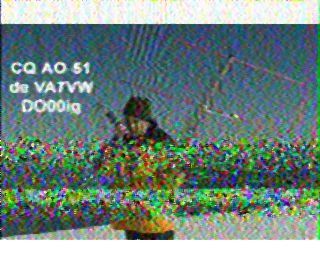

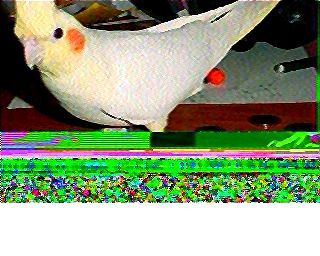

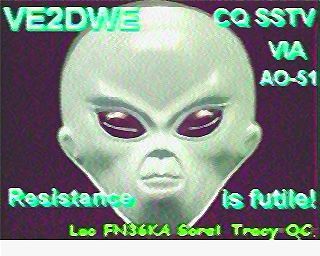

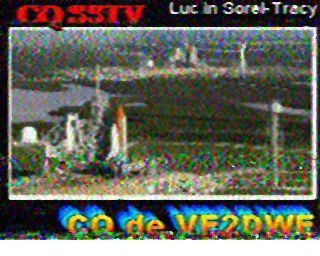

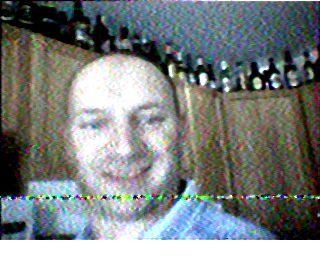

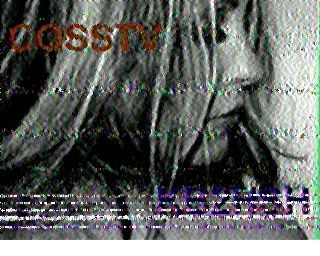

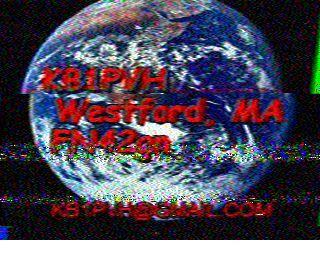

2008-11-12 2318Z AO-51 SSTV RECEPTION



 type="application/x-shockwave-flash" width="425" height="350"> </embed> </object>

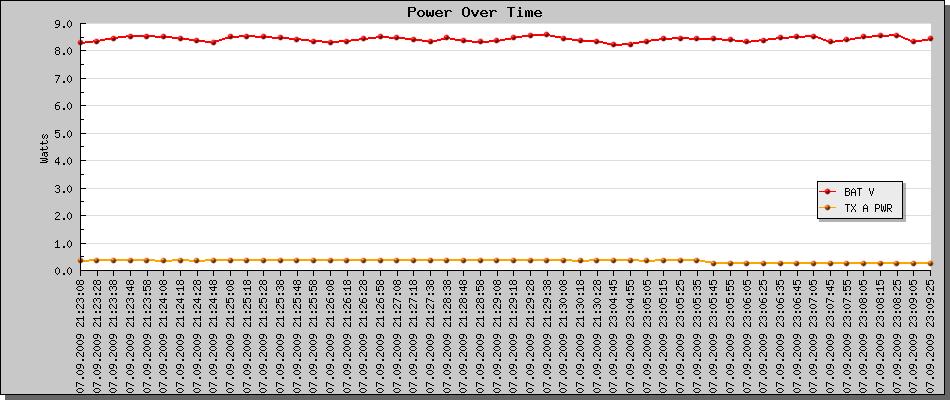

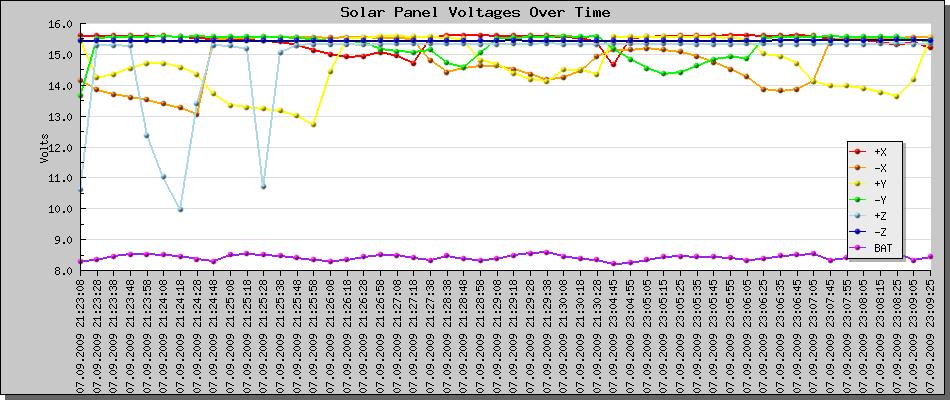

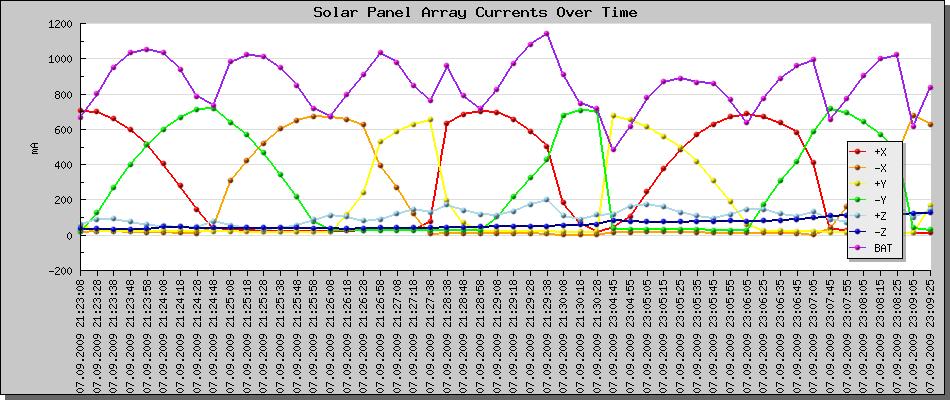

AO-51 GRAPH FROM TELEMETRY CAPTURE GO ON :http://www.youtube.com/watch?v=aRHPcruySfs TO SEE TLMECHO PROGRAM

To E-MAIL click on icon / pour courrier électronique cliquer sur l'icone (replace the A by a @)(remplacer le A par un @)



  • Images are long to download, you will have to make some refresh to get them all.
  • Pour obtenir toutes les images appuyez sur le bouton actualiser

Images/Thumbnails:

En cliquant sur une image une nouvelle page s'ouvrira avec l'image pleine grandeur. Clicking on any thumbnail will open a new browser window with the full size picture.

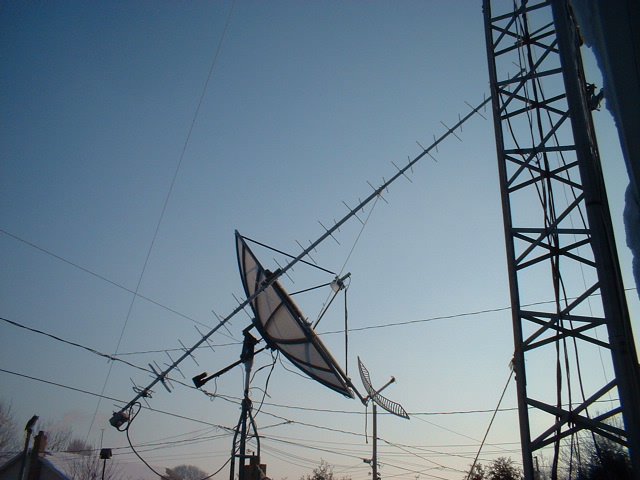

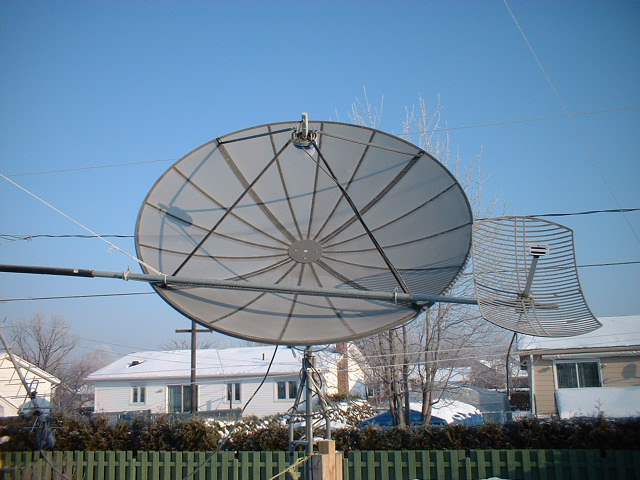

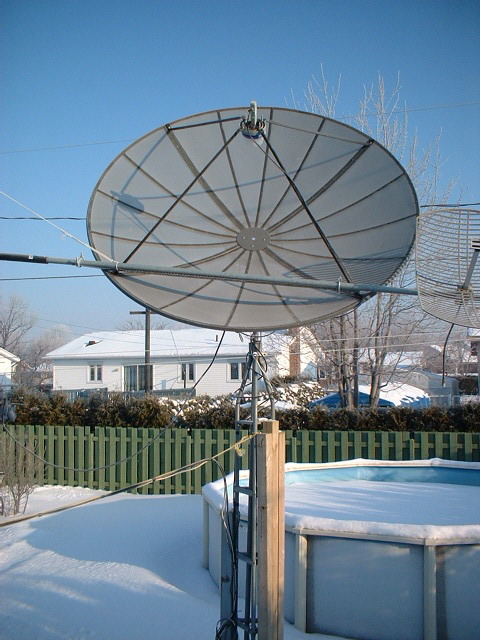

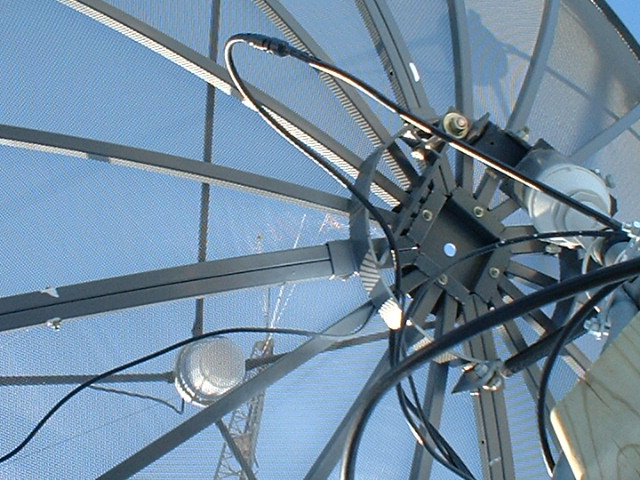

Once you get it (TVRO DISH) the hard part come, how to install it!/La partie difficile l'installation (dish size/dimension parabole 2.2M-7½fts)
Below pictures of tri band patch feed assembly (UHF-1296MHZ-2,4GHZ) s Ci-dessous source trois bandes (UHF-1296MHZ-2.4GHZ)

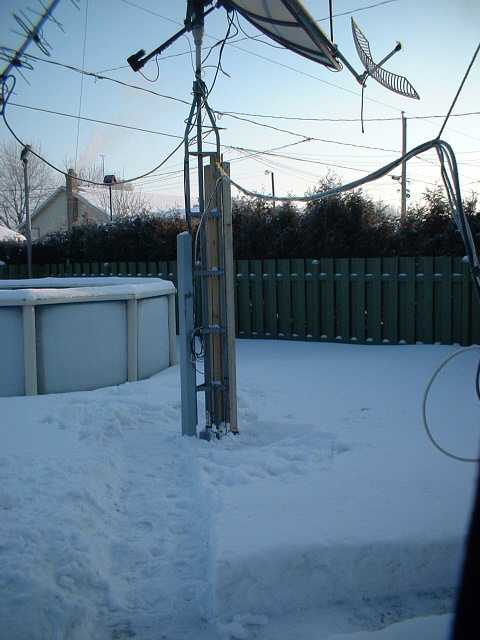

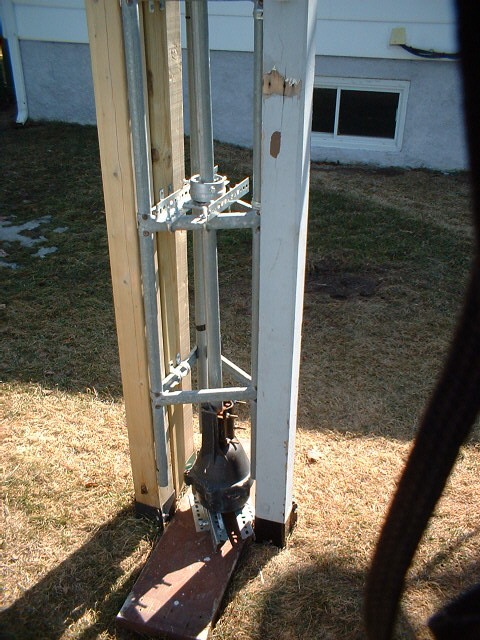

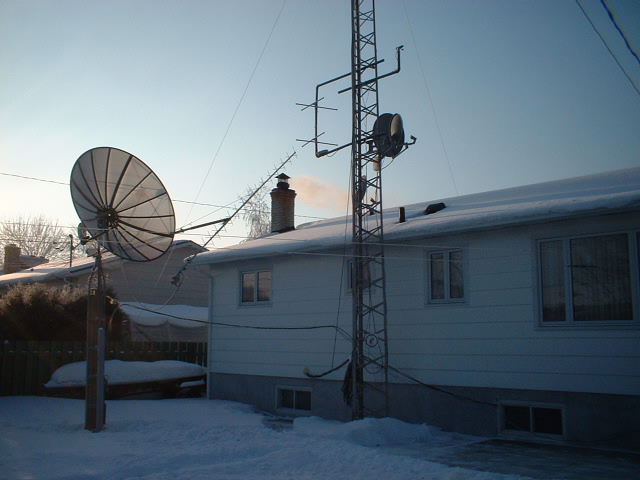

MOUNTING STRUCTURE/PYLONE AUTOPORTANT.

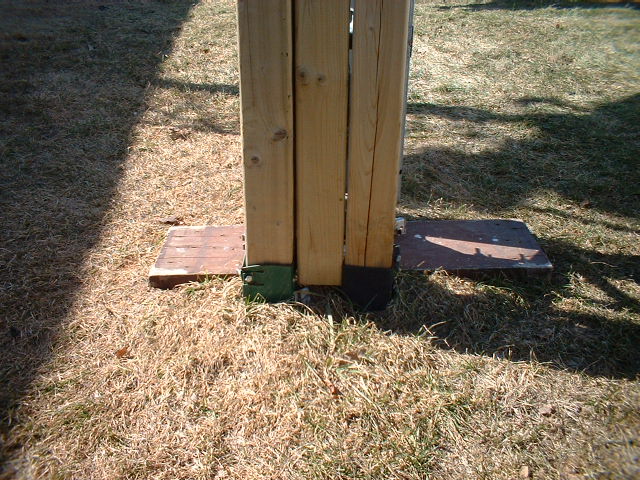

The mounting structure is made of 4"X4" wood post 8' long on three metal spike driven in the earth. As you can see in the pictures the middle post is attached to a to tubular tower top section. This middle post is attached to the others post by a bottom bolt permitting the whole assembly to be swing up and down by pulleys (One man operation system). When the whole assembly is raise a fourth post is installed to one of the tower tubing to reinforce the structure. As of today this assembly has been hit by numerous winter storms with winds peaking up to 61 KM per hour.



Le pylone de support est composé de poteaux de bois de 10X10 cm d'une longueur de 264 cm qui sont ancrés dans le sol par des pointes métalliques. Le poteau central en bois auquel est fixé une section de bout d'un pylone métallique, est attaché à la base aux autres par un boulon qui permet de lever et d'abaisser la structure ( par un seul homme) par un système de palan à cordes. Un quatrième poteau vient consolider la structure en étant attaché au tuyau de la section du pylone métallique. La structure a résisté à des tempêtes hivernales et à des vents de 61 KMH.

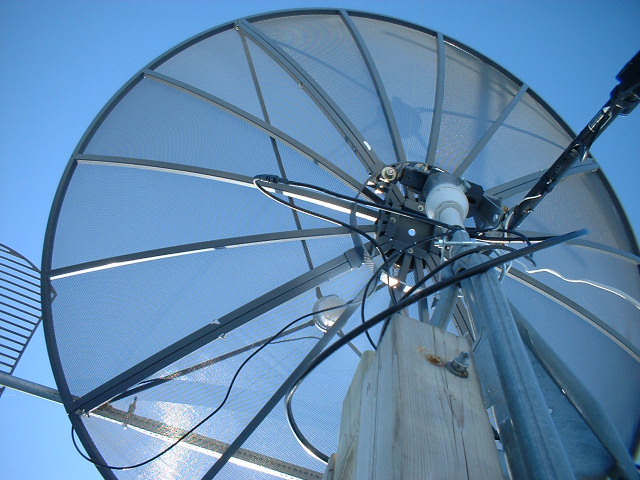

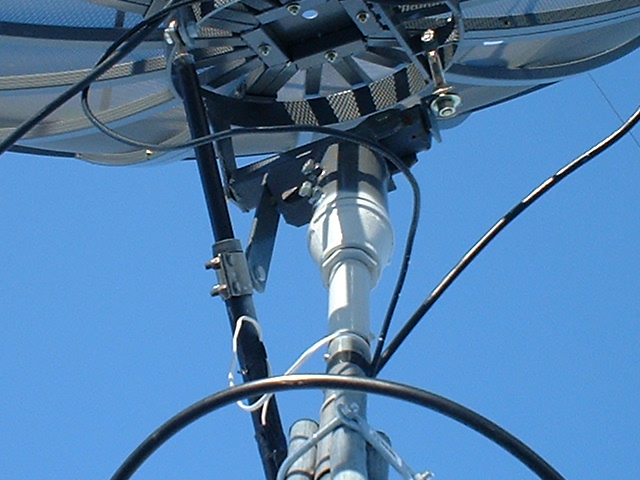

DISH TO MAST MATCHING SYSTEM/ SYSTÈME ADAPTEUR PARABOLE VS MAT

Inside the 6"OD dish mounting pipe a steel plumbing reducer kit fit a 10"X2½"(od)¼" thick wall pipe. Inside this 2" fit half of a 10" taper steel pipe the other half fit taper into a standard 1½" TV aluminium mast.Two metal screw secure the pipes sections. Note: The clarke belt tracking offset has been cancelled.

Au tube de montage de la parabole de 15cm de diamètre, un adapteur en acier de plomberie adapte un tuyau en acier de 26cm et d'un diamètre extérieur de 5cm (parois 6mm). A l'intérieur de ce tuyau s'ajuste la moitié d'un tuyau de 26cm l'autre moitié s'ajuste à l'intérieur d'un tuyau en aluminium (mat TV) de 4cm. Deux vis à métal fixent les tuyaux. NB: le décalage pour la poursuite de la ceinture de clarke a été annulé.






La région de Sorel-Tracy  (Le Lac St-Pierre et le fleuve St-Laurent).Au Québec l'été et l'hiver

The Sorel-Tracy area (Lake St-Pierre and the St-Lawrence river)  and in Québec summer VS winter




Cliquez sur le lien suivant. Click on the following link
- APRS MOBILE STATION   MA STATION APRS MOBILE
- APRS STATION   MA STATION APRS
-AMATEUR RADIO BALOON LAUNCH IN FRONT OF MY QTH/ LANCEMENT D'UN BALLON RADIOAMATEUR DE MON QTH

-video of a capture session of AO-51 telemetry with TLMECHO program/Video de la réception de la télémétrie d'AO-51 avec le programme TLMECHO

Carte météo satellite centré sur Sorel-Tracy
