Crystal Radio (Mystery Crystal Set)

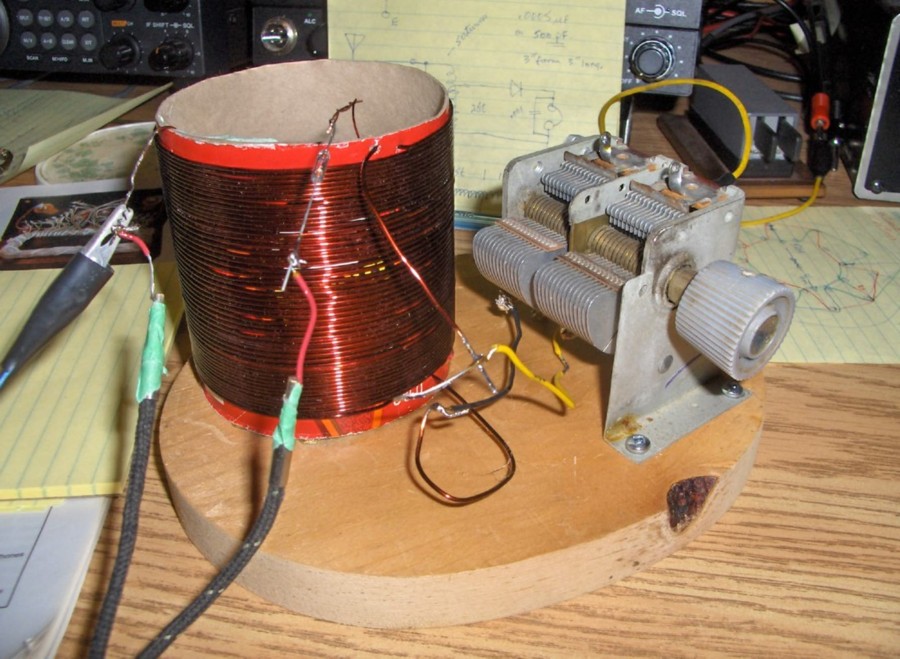

"Mystery" crystal radio. There's not much to it; a coil, capacitor, a 1N34A germanium diode (detector) and a pair of Hi-Z headphones. Apparently named because it's a mystery why it works so well. It actually works so well, it's a bit loud on the ears! The quality is quite good; you really have to hear it to appreciate it. You can find out more here.

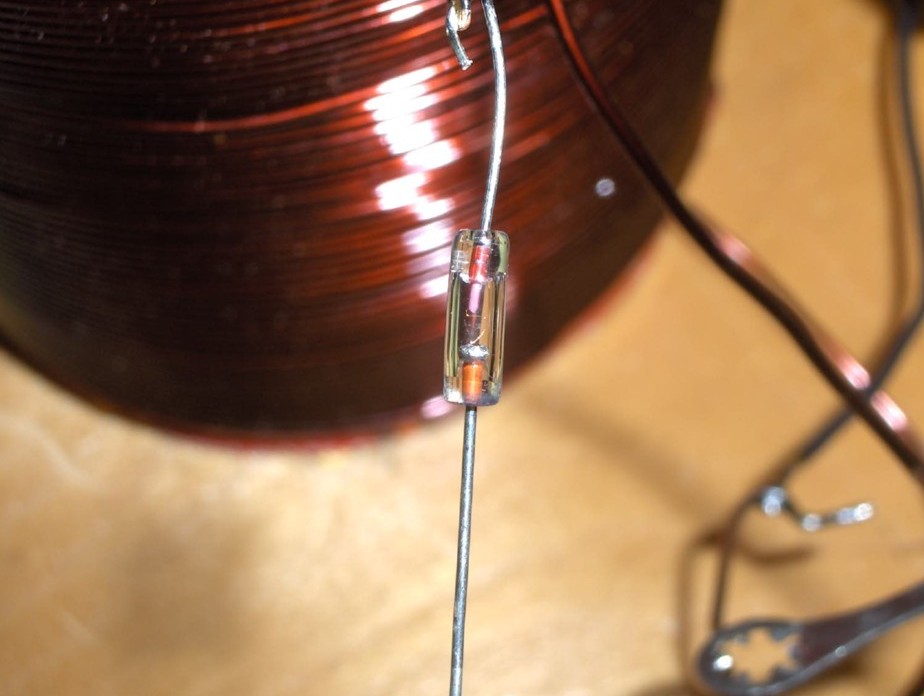

The detector.

Hi-Z phones - made by Tower Manufacturing Co. of Boston Mass.

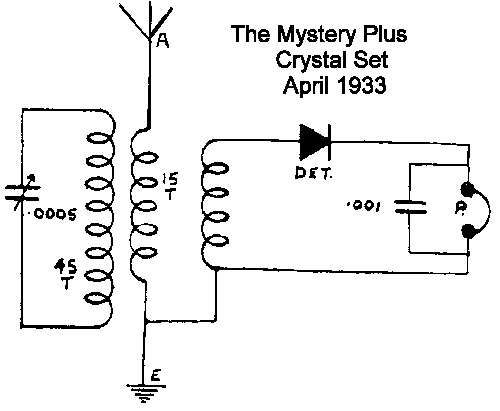

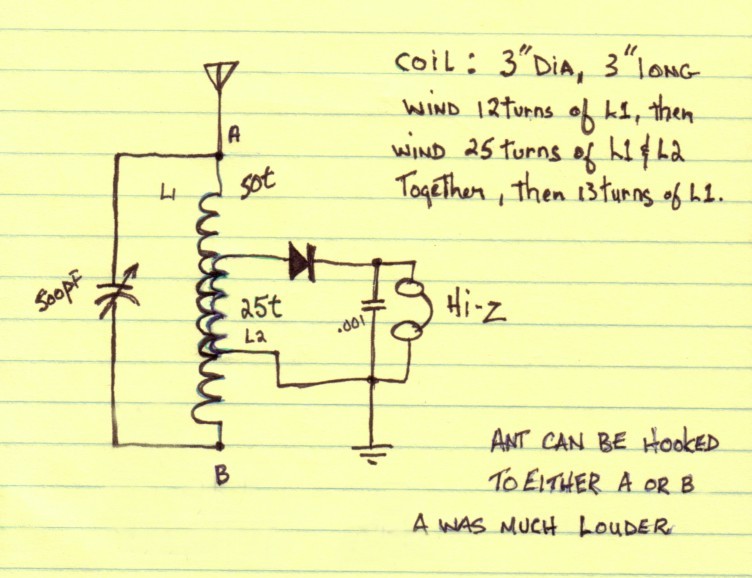

The schematic.

This the latest change

More information on building this coil can be found here.

This is the honey comb coil I built. More information on building this coil can be found here.

I measured it to be 127 uH.

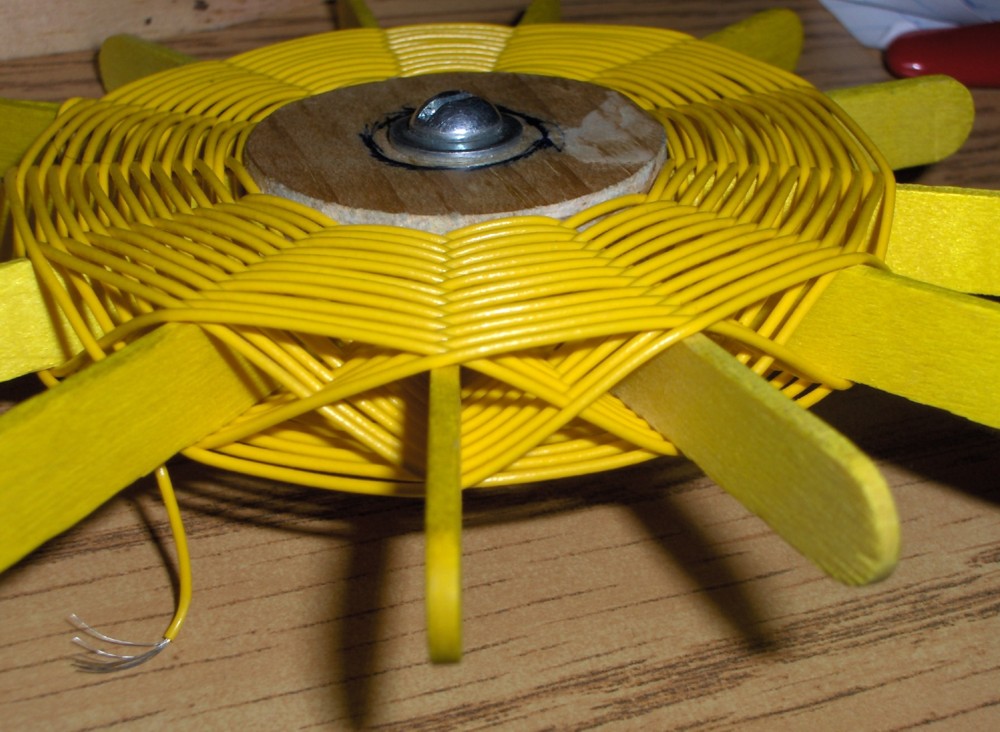

Basket weave coil.
