Link Coupled Transmatch

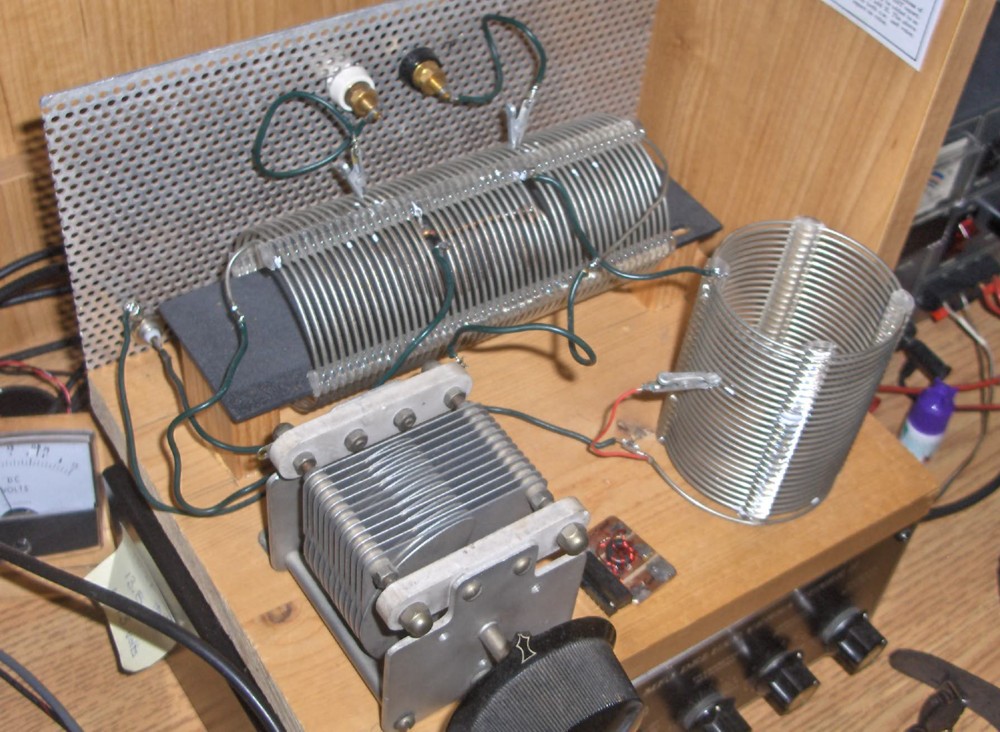

This is the link coupled matching network I built. It works very well and I usually leave it set for 160. The original design I used came from 1987 ARRL Handbook (page 34-19, fig. 37), but then I modified it little, leaving out all the switches and adding a second tapped coil (seen in the front), and removing a capacitor.

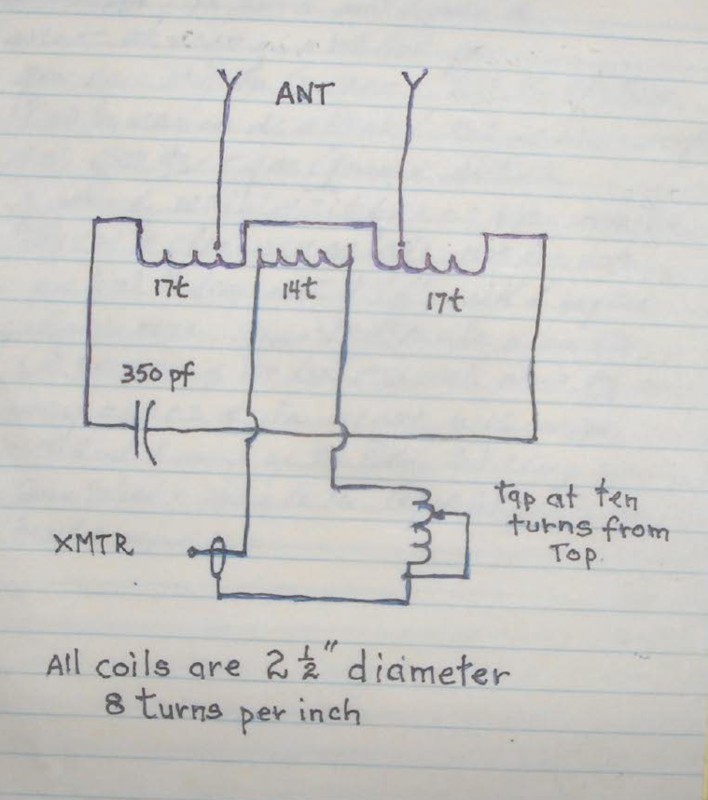

Here is the schematic of my modified transmatch.
