Engine�
Type: V-8 water cooled, cast iron block and heads,�
5 main bearings�
Bore x Stroke.................. 4.25 x 3.76 in, 108.0 x 95.5 mm�
Displacement......................................427 cu in, 7000 cc�
Compression ratio.........................................11.0 to one�
Valve gear....Pushrod operated overhead valves,��
mechanical cams�
Power (SAE)..................................435 bhp @ 5800 rpm�
Torque (SAE)................................460 lb-ft @ 4000 rpm�
Specific power output....1.02 bhp/cu in, 62.2 bhp/liter Drive Train�
Transmission.................................4 speed , all-synchro�
Final Drive Ratio............................................3.70 to one�
Suspension�
F: Ind., unequal length wishbones, coil springs, anti-sway bar�
R: Ind., single trailing arms, fixed length half shafts��
and lateral links, multi-leaf transverse spring, anti-sway bar�
Dimensions And Capacities�
Wheelbase.............................................................98.0 in�
Track F/R.....................................................58.7 / 59.4 in�
Length..................................................................182.5 in�
Width......................................................................69.0 in�
Height.....................................................................47.8 in�
Ground Clearance...................................................6.0 in�
Curb Weight.......................................................3450 lbs�
Weight Distribution F/R............................51.5 / 48.5 %�
Battery Capacity............................12 volts, 62 amp / hr�
Alternator Capacity.........................................504 watts�
Fuel Capacity.......................................................20.0 gal�
Oil Capacity...........................................................5.0 qts�
Water Capacity...................................................22.0 qts Steering�
Type........Recirculating ball gear with linkage booster�
Turns lock - to -lock.....................................................3.2�
Turning circle curb - to -curb...................................35 ft�
Brakes�
F: ..............................11.75 in vented disc, power assist�
R:...............................11.75 in vented disc, power assist
Wheels and Tires�
Wheel Size........................................................15 x 8.0 in�
Wheel Type..................................Stamped steel, 5 bolt�
Tire make and size..............................Goodyear F70-15�
Tire type............................................................Tubeless�
Test inflation pressures, F/R.........................24 / 24 psi�
Tire load rating......................1280 lbs per tire @ 24 psi Performance�
Zero to:�
30mph......................2.2 secs�
40mph......................3.2 secs�
50mph......................4.2 secs�
60mph......................5.3 secs�
70mph......................7.0 secs�
80mph......................8.6 secs�
90mph....................10.7 secs�
100mph..................12.6 secs
Standing �-mile.......13.8 secs @ 106.8 mph�
Top Speed (estimated).....................138 mph�
80-0 mph....................................235 ft (0.91 G)�
Fuel Mileage...9.5 - 14 mpg on premium fuel�
Cruising Range................... ....190 - 280 miles

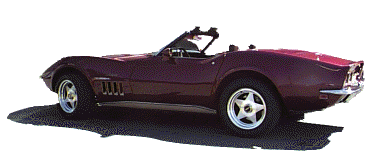

- * There were 16,633 Corvette Roadsters, and 22,129 Coupes produced for the 1969 Model year.
- * The word Stingray reappears on the side above the "gills". Unlike the earlier models Stingray is now one word. * First year Corvette used a 350ci engine.
- * Although the 1969 Corvette looks very similar to the '68 model year some common sizes were changed such as the headlight covers.
- * Exterior colors for the 1969 Corvette were:o Burgundy o Can-Am White o Cortez Silver o Daytona Yellow o Fathom Green o LaMans Blue o Monaco Orange o Monza Red o Riverside Gold o Tuxedo Black
- * Suggested Interior Colors were Black, Red, Bright Blue, Green, Gun Metal, & Saddle.
- * The '69 vette weighed in at roughly 3,245lbs.
- * The '69 vettes had 300hp to 435hp depending on the options chosen.
- * The base price of the'69 Corvette was $4,781 for the Coupe and $4,338 for the Roadster.
- * 1969 Options: o Leather Seats o White Stripe Tires F70x15, nylon o White Letter Tires F70x15, nylon o Red Stript Tires F70x15, nylon o Turbo Hydro-Matic Transmission o Transistor Ignition System o Auxiliary Hardtop o Power Windows o Soft ray tinted glass (all windows) o Engine block heater o 4-Speed Manual Transmission o 4-Speed Manual Transmission, close ratio o 4-Speed Manual Transmission, heavy duty o Heavy Duty Clutch o Air Conditioning o Vinyl Covering for hardtop o Headrest o Shoulder Belts o Front Fender Louver Trim o Deluxe Wheel Covers o Power Steering o Speed Warning Indicator o Tilt Telescopic Steering Column o AM-FM Radio o AM-FM Radio, Stereo o Alarm System o Power Brakes o Off Road Exhaust System o Positraction Rear Axle o Special Front and Rear Suspension o Special Heavy Duty Brakes o Rear Window Defroster o 350ci, 350hp Engine o 427ci, 390hp Engine o 427ci, 400hp Engine o 427ci, 430hp Engine o 427ci, 435hp Engine o Aluminum Cylinder Heads with L71 o Special L88 aluminum block
- * A 300hp, 327ci engine, with three speed Manual transmission was included in the Base Price.
