PROPAGATION  BEACON





 VA2MGL/B3





6 meter

50,038 Mhz



  SPECIFICATIONS OF TH E RADIO BEACON



         Frequency                              50,038 Mhz

Transmitter                            Designer Michel VE2MJ

Power                                     5 watts

Modulation                             A1A

Antenna                                  Quad-Turstile omnidirectionnal

CW generator                         Jackson Harbor PK-3

Location                                 La Malbaie, Québec , Canada

Grid square                            FN47uq

        Geographic coordinates           Latitude :  47° 40’ 08’’

                                               Longitude :  70° 17’ 15’

Altitude                                   370 meters

Trustee                                    Marc Gagnon   VA2MGL



  Beacon messages

VA2MGL/B2  QTH  FN47UQ  ANT  QUAD  5  W

VA2MGL/B2  WWW.QSL.NET/VA2MGL

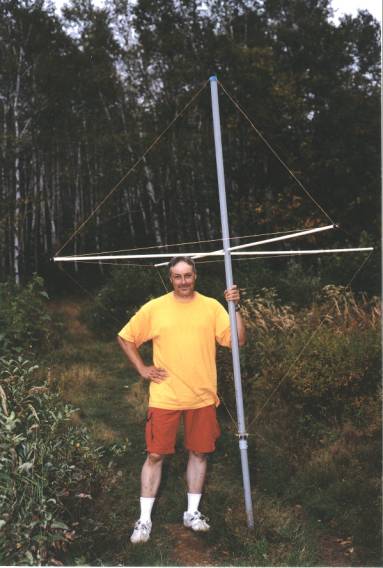

OM with the new Quad-Turnstile Antenna

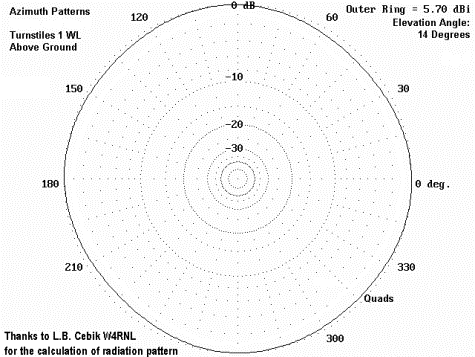

Horizontal radiation pattern

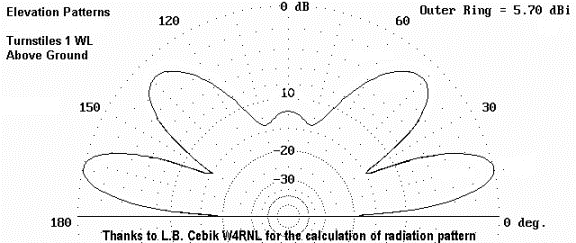

Vertical radiation pattern



The main lobe  is 14° above  horizon



  QSL Card

To receive my QSL card, send me a reception report by

bureau, or by mail with a prepaid self addressed envelope

for the return.



                                  My address :         Marc Gagnon

36 Ruisseau des Frenes

La Malbaie, QC

Canada  G5A 2C8

                                          E-mail :        [email protected]
