PROPAGATION  BEACON











VA2MGL/BCN10 metres

28,196 Mhz



SPECIFICATIONS  OF  THE  RADIO  BEACON



               Frequency                           28.196 Mhz

               Transceiver                         Realistic HTX-100

               Power                                  2 watts

               Modulation                         A1A

               Antenna                              Dipole TURNSTILE

               CW generator                     Jackson Harbor PK-2

               Location                              La Malbaie, province de Québec,Canada

              Grid square                          FN47uq

              Geographic coordinates      Latitude :       47° 40’ 08’’

                                                            Longitude :    70° 17’ 15’

               Elevation                             370 meters

               Trustee                                Marc Gagnon   VA2MGL





Beacon messages (CW)

VVV  DE  VA2MGL/BCN  QTH  FN47UQ  TURNSTILE  2  W

VVV  DE  VA2MGL/BCN  WWW.QSL.NET/VA2MGL

Dipole TURNSTILE Antenna

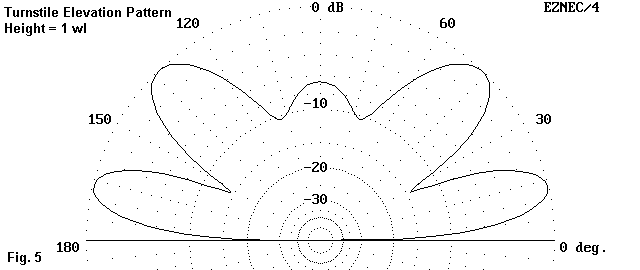

 RADIATION  PATTERN



                     Calculation mape by L.B. CEBIK W4RNL

                        There are two main radiation lobes, one at 14 ° for Dx

and second at 45° to take advantage of short skip.





Calculation made by L.B. CEBIK W4RNL

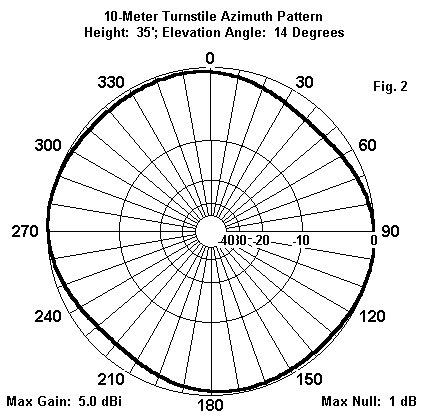

HORIZONTAL RADIATION PATTERN





QSL card

                          To receive my card QSL, send me a reception report by bureau,

                           or by mail with a prepaid self addressed envelope for the return.



                                               My address :                Marc Gagnon

36 Ruisseau des Frenes

La Malbaie, QC

Canada  G5A 2C8

E-mail :       [email protected]
