CQ India - VHF Collinear Super J Antenna: Calculator

Click to enlarge

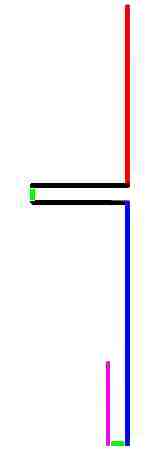

  Single Copper tube bent in this shape- >
Use 6 Nos Elbow's at the bents
for neat construction








Five Turns , 4 Inch Dia, RG58u Coax at the bottom of feed point.

Matches SWR 1:1



  Inches Copper Tube 1/2 Inch Dia.
Inches Inches  X  2 pieces
Inches Inches
MHzEnter Frequency of Operation




Inches



  Feed Point Appox.
Inches From Bottom

  Antenna made using Brass rod :

Would appreciate your feedback , and results of construction to enhance this page.


  De VU2UKR
