UA4RZ station setup (1997)
HF: Transceiver - IC-756. |
Home made PA (GU - 84B with g.g.) |
Modems - PK-232 MBX, Hamcomm. |
Computer - 486 DX 80 Software - PLUSV3! Logbook, PK GOLG, WF1B, N6TR, K1EA, ... |
VHF: FT-2500M & FT-530 plus
6 el. Yagi. All for local communication with car, summer house ...
Repeater: UA4RZ/R - 145.750/145.150, |
Antennas - Interlaced 4/4el. Yagi - 15/20 m. 4 el. Yagi - 10 m. (over 15/20 m) 2 el. phased Qubical Quad (W/E) - 40 m. 2 el. phased Inv.Vee (W/E) - 80 m. Inv.Vee - 160 m., GP for WARC bands ( All antennas are on the roof of 9 st. building with 179 neighbours - brrr). |

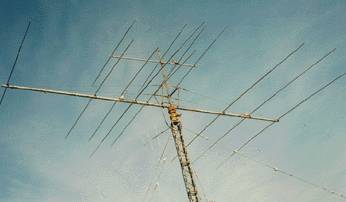

Photo of 5 el. yagi for 20m and 4 el. quads for 10/15m on the same boom (1987-1988)

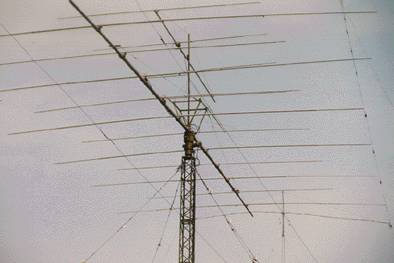

Photo of 6/5 el yagy for 20/15m and 4 el yagy for 10m (All W6SAI) 1988...1998
Photo of 4/4 el yagi for 20/15m and 4el yagi for 10m (K6STI/W4RNL design) 1998...
