Ten Tec Models

Click on the small picture for a larger one (if available)
Click on the Model Number for a SPEC sheet
1001 Universal Low-Noise Broadband RF Preamp Kit, Untuned
1054 Regenerative 4-Band SWL Receiver Kit, includes front panel, no enclosure.
1056 "Any Band" Direct-Conversion SSB/CW Receiver Kit, No enclosure
1125 DC Circuit Breaker (10A) for Argosy
1126 Linear Switch Kit for Argosy
114 Audio Filter for Argosy II
1140 Circuit Breaker
1170 Circuit Breaker 7amp $8.75 when new
1179 DC Circuit Breaker, Century 22
120 HF-SSB Manpack Tranceiver, Available in three modeks that operate in 3-5mhz, 5-8mhz or 8-12mhz bands. 20 watts PEP with self-contained rechargeable ni-cad. Built-in Antenna. 10lbs. Channelized operation.
1200 2m Amplifier
1202 HF/VHF SWR Bridge/Wattmeter (1202A wired Version), 1.8-30mhz, 20 and 200 watt scales, HF and VHF antenna connections, $49
1203 300 watt Dummy Load Kit, $24 ($27.95 assembled)
1208 20m to 6m Transverter Kit (1208A wired version), up to five watts of drive for 8-10 watts out, all modes supported by the exciter, $99 (kit)
1209 2m to 6m Transverter Kit
1210 10m to 2m Transverter Kit, 4 watts in for 10 watts out on 2m, $139
1220 2m Transceiver Kit, FM and DATA, 5 or 35 watt versions, 15 memories, MARS and CAP capable, $195 (35 watt amp $64)
1222 35 Watt Amplifier for 2m Kit, 5 in 35 watts out, $64
1225 G5RV Antenna Kit
1230 220 Transceiver Kit
1251 RF Counterpoise, Artificial Ground, $49
1252 Audio Amplifier Kit, Hi and Lo Z input, 1.5w output, 12 volts, $44
1253 9 Band SW Receiver Kit, AM, SSB, CW reception from 1.8 to 22mhz, 9 tuning ranges, requires 12 volts, $59
1254 SWL Receiver 100hz to 30mz., Digital Dial, 15 memories, internal speaker, $195
1260 6m Transceiver Kit, 5 watts out, FM, 15 memories, CTCSS, $195
1320 QRP Kit for 20m
1330 QRP Kit for 30m
1340 QRP Kit for 40m
1380 QRP Kit for 80m
150 HF-SSB Tranceiver, 100 watts, 2-12mhz. Channelized. 12/14VDC
1550 Utility Audio Amplfier Kit, 1.5 watts of audio, includes 10db preamp.
1551 Microphone Speech processor Kit
1552 Active Antenna for Receivers Kit, No Enclosure
200 VFO 80-10m, 120VAC, 7.25x7.25x4.75in.
205 Tuner (used with the 509), $9.95 when new
206 Calibrator (used with the 509) $26.95 when new
206a Pulsed Crystal Calibrator (used with the 515) 25 and 100 KHz. 12 VDC $26.95 when new
207 Ammeter
208 2 pos. CW filter for the 509, $29 when new
208A 3 pos. CW filter with notch for the 515
209 Dummy Load (300w)

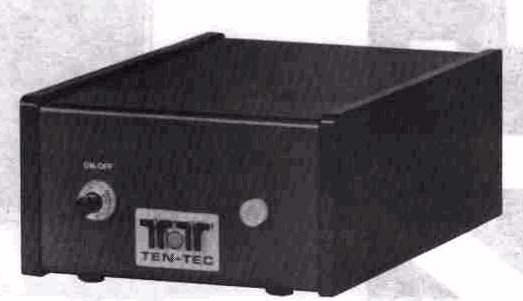

210 Power Supply 1amp, $27.50 when new
210A Power Supply 1amp, $27.50 when new
212 Crystal, 29.0
213 Crystal, 29.5
214 Electret Microphone for Argosy and Delta 580 Series $39 when new
215 Ceramic Microphone, $17-29.50 when new
216 500 Hz 6 Pole FSK Filter, 9mhz (for 562/ 563/ 564 narrow position; 546) $89
217 500 Hz 8 Pole Ladder Filter, 9mhz (for 562/ 563/ 564 narrow position; 546) $89
218 1.8 Khz 8 Pole Ladder Filter, 9mhz (for 562/ 563/ 564 narrow position; 546) $89
219 250 Hz 6 Pole Ladder Filter, 9mhz (for 562/ 563/ 564 narrow position; 546) $89
220 2.4 Khz 8 Pole Ladder Filter, 9mhz (for 562/ 563/ 564 narrow position; 546) $89
221 250 hz 9 Mhz Filter 6 Pole, Passband centered at 500hz.
222 Mobile Mount for Argosy
223 Noise Blanker for Argosy II (525D). 223A for models with Serial Numbers over 824.
223A Noise Blanker (Plug-In) for Argosy
224 Audio CW Filter for Argosy
225 Power Supply 9amp
226 Internal Calibrator for Argosy
227 300 watt Tuner for Argosy I, Delta 580 and others $79 when new
228 200 watt tuner with SWR meter

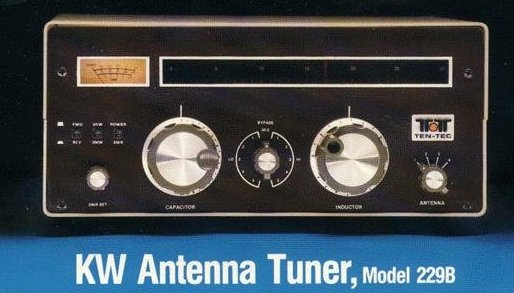

229 2KWAntenna Tuner (Matches Corsair/Omni A)
23-227 Variable Capacitor, 1-207pF @ 1kv, as used in Model 291, $21
234 RF Speech Processor, 4-pole filter, 12 VDC $124 when new
235 CW filter for Model 315, $14.95 when new

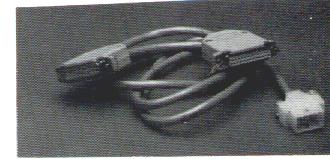

236 Remote Control Cable, combination "Y" (25pin "D") and 4ft extension cable for connecting Hercules II for remote control from a Paragon, Omni V, Omni VI or Omni VI Plus. Provides 2nd connector for a computer. $49
238 2KW Tuner/SWR Bridge 1.8-30Mhz. (Matches Paragon/Omni V/VI), meter for forward and reflected, 4 SO-239 connectors selected by front panel, one position can be used for ladder line, Bypass mode, modified "L" network $395
239 Dummy Load (300w) Grey $27.95

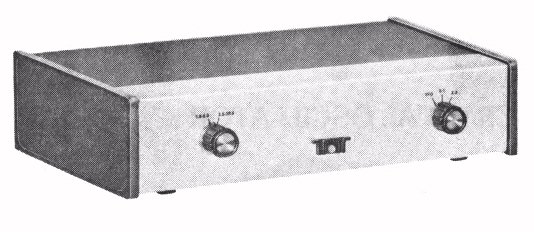

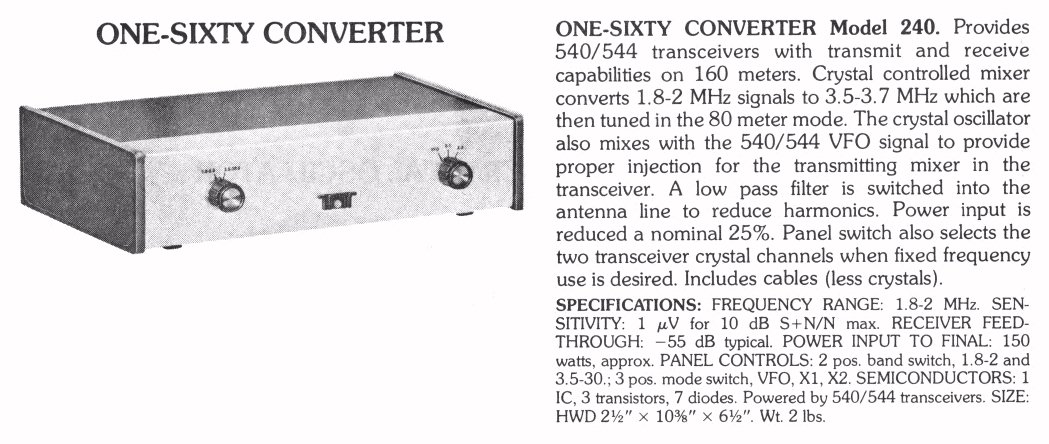

240 Converter, 160m
241 Crystal Oscillator
2410 430-450 Amplifier (100w)

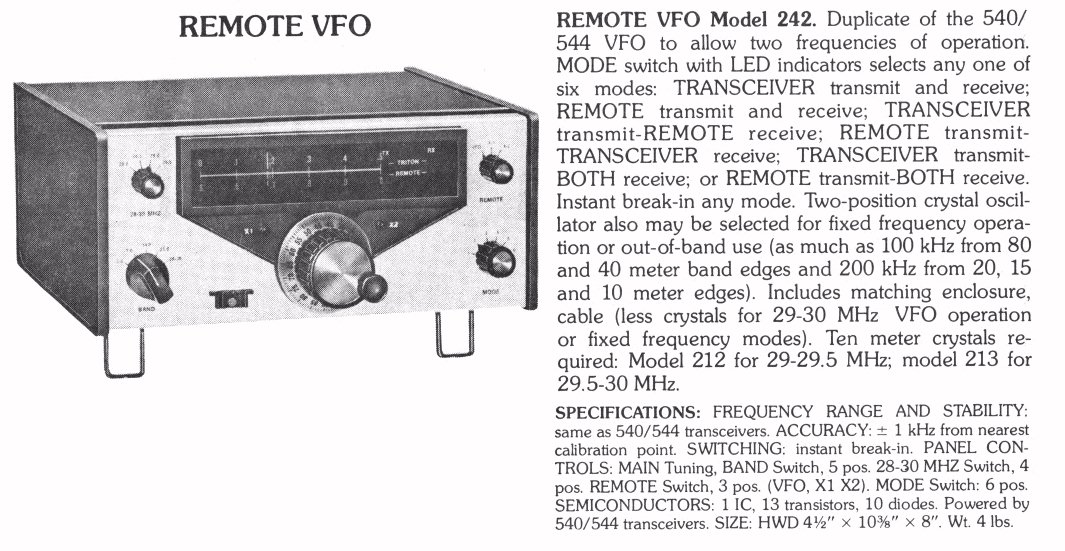

242 Remote VFO [Triton IV]
2425 2m Amplifier (30w)
243 Remote VFO [Omni D]

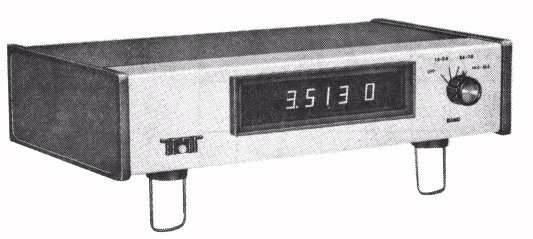

244 Digital Readout

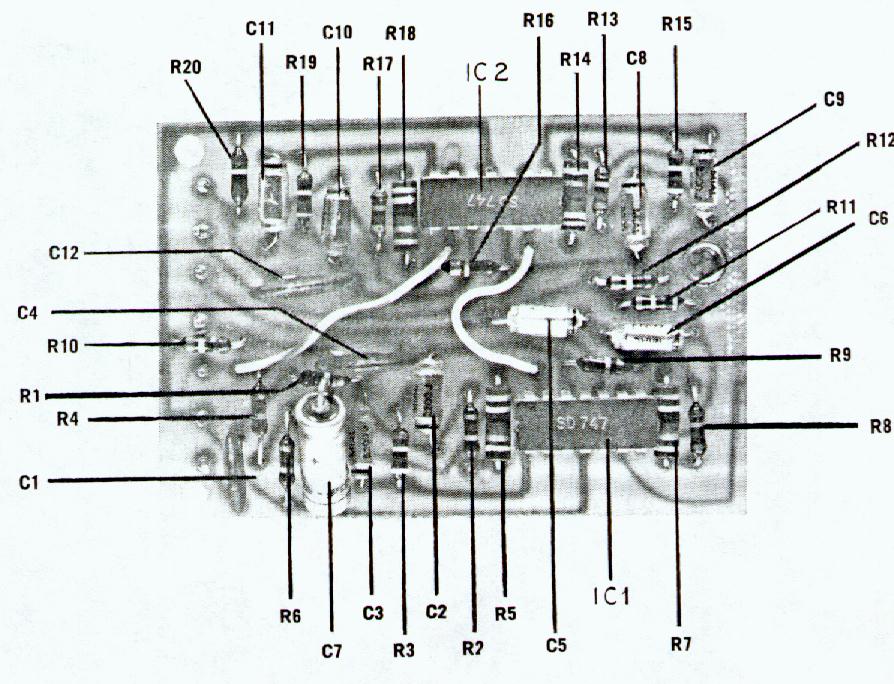

245 CW Audio Filter Board

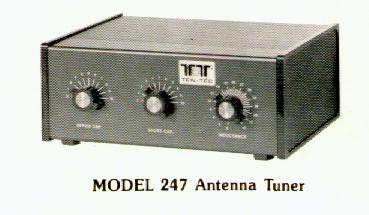

247 Tuner (100w)
249 Noise Blanker Board
251 Power Supply for Triton I, 10amp, $69 when new
2510 440 Satellite Transceiver
2510B Mode B Satelite Transverter
252G Power Supply for Triton II, 20 amp, $89 when new
252M Power Supply for Triton II with meter, 20 amp, $89 when new
253 Tuner, Automatic 2KW
254 Antenna Tuner (200 watt, meters)

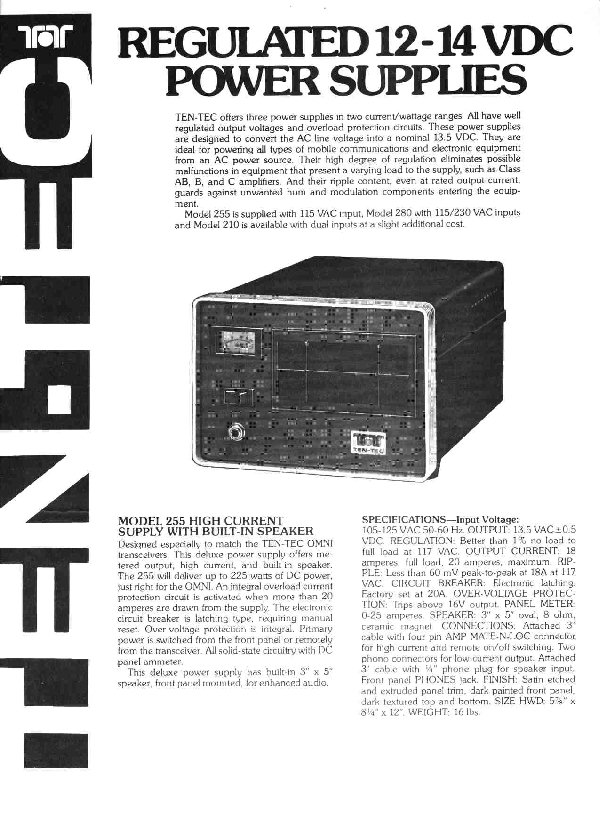

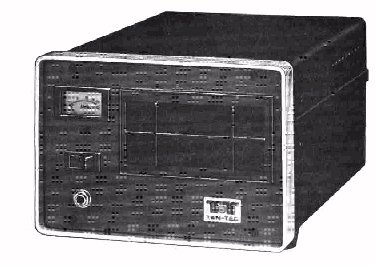

255 Deluxe PS/Spk 20 Amp
256 Paragon I (585) FM Board
257 Voice Synthesis Board, Works with Paragon/Omni Series Tranceivers (562/ 563/ 564/ 585/ 586) $95
258 RS-232 Board for Paragon 1 (585)
259 ALC Annunciator $34
2591 2m HT
260 Power Supply (Generally used with Corsair II)
262G Power Supply with VOX or Triton
262M Power Sup/Vox with meter

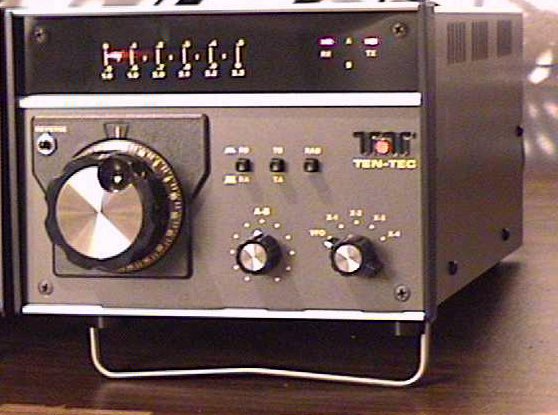

263 Remote VFO for the Corsair I (560), provided simultaneous receive on two frequencies, balance control, 160-10m w/WARC, four crystal sockets, reverse button
263G Remote VFO for the Corsair II (561), provided simultaneous receive on two frequencies, balance control, 160-10m w/WARC, four crystal sockets, reverse button
264 Cable Expansion, combination "Y" (Molex connectors) and 4ft extension cable for adding a second device to the automatic band select information line. Required, in addition to 236 cable, if both Hercules II and Model 253 tuner are used. $36
268 Cable, 536 to 420
269 Cable, 536 to 420, 422
271 Crystal, 21.0
272 Crystal, 29.0
273 Crystal, 28.5 for Century 21 $5 when new
274 Digital Mod Kit for Century 21 $90 when new
276 Century 21 Calibrator $29 when new
277 200 watt Antenna Tuner $85 when new

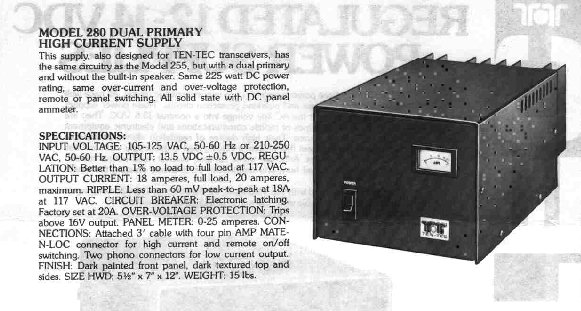

280 Power Supply, 20 Amp, for Delta 580, $149 when new
282 250 Hz 6 Pole Ladder Filter, 6.3mhz $89
283 Remote VFO [Delta] $179 when new
285 500 Hz 6 Pole Ladder Filter, 6.3 Mhz $89
287 Mobile Mount
288 1.8 Hz 8 Pole Ladder Filter, 6.3 Mhz $89
289 Noise Blanker Board

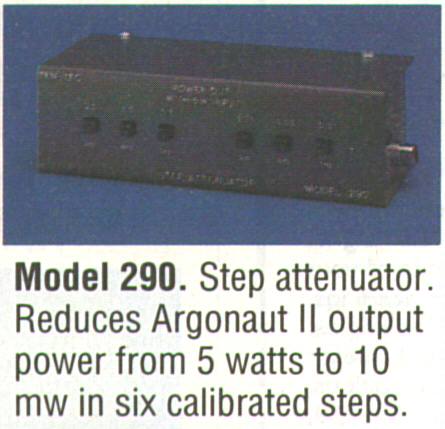

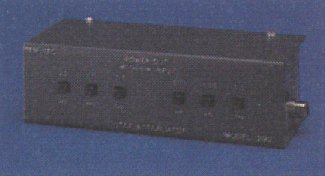

290 Step Attenuator for Argo II

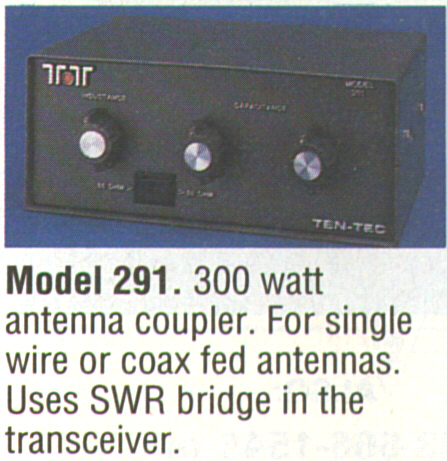

291 Antenna Tuner (200w). "T" network, rated 200 watts, no meter, SO-239 in and out, long wire connection $89
293 Mobile Mount
296 Mobile Mount for Scout (555/556) $15
297 Noise Blanker for Scout (555/556) $19.50
299 Talking Frequency Counter
2991 Extra 450 mAH Battery Pack for Model 2591/TT920 $43
2991 HT Battery Pack, 450mAH for Model 2591/TT920
300 Cable, Extension
3001 20-80 Meter Mobile Matcher
301 Remote Tuning Knob for Omni V
3010 Mobile Matcher
302 Remote Encoder/Keypad for Pegasus Transceier
303 Fan Kit
306 Plug Adapter, 4-pin power Supplies to 2-pin 535 or 536 $5.00
3101 42' top stinger
3101L 49' top stinger
3110 10 Meter Antenna
3115 15 Meter Antenna
3120 20 Meter Antenna
3130 30 Meter Antenna
3140 40 meter Antenna
315 Receiver, Solid state 80-10m receiver, PTO, 9mz crystal filter, builtin speaker, Calibrator, 115v AC, $229 when new (1972)

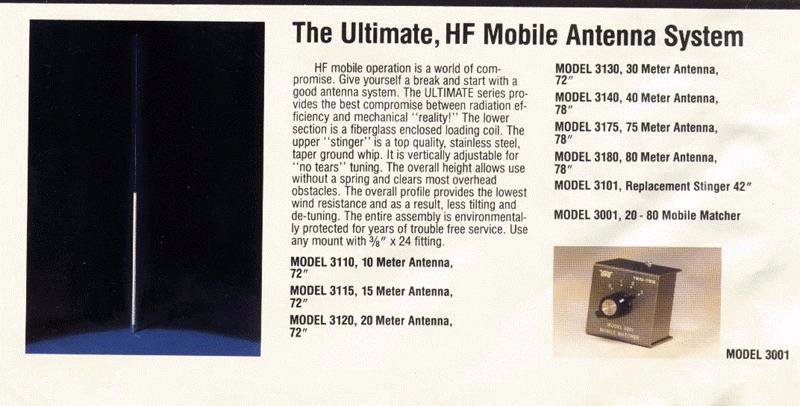

3175 75 Meter Antenna
3180 80 Meter Antenna

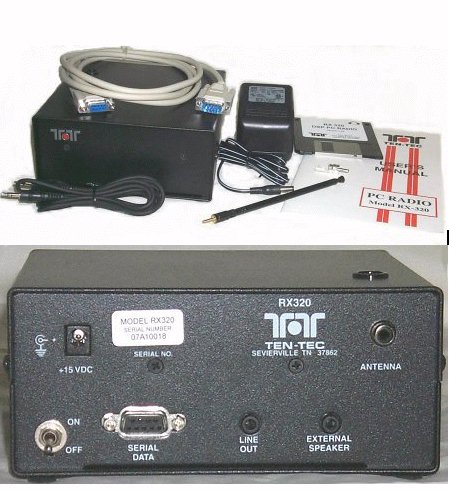

320 PC Radio, AM, SSB, CW, 100hz to 30mhz, Connects to PC Serial Port, Windows 3.1/Win 95 Software for Control, $295
3229 Balun Kit for 229 Tuner
35057 4 pin Microphone Connector, $3
4010 10 meter mobile whip
4012 12 meter mobile whip
4015 15 meter mobile whip
4017 17 meter mobile whip
4020 20 meter mobile whip
4030 30 meter mobile ship
4040 40 meter mobile whip
405 50 watt linear Amp for the Argonaut, 80-10m, 50w with 2w drive, CW and SSB, 2 meters for power and SWR, no band switch, 12v, $149 when new (1972)
4075 75 meter mobile whip
4080 80 meter mobile whip
411 Centaur Linear Amplifier, 600 watts with 100 watts of drive, 160-10m, Built-in Power Supply, (411E denotes Export Model) $749
416 Titan II, 1500w on SSB and CW, QSK, 4CS1600B. New for January 98 $2990
420 Hercules II Amplifier (500w), 160-10m, 65-80watts for 500w out, Solid State with eight (8) MRF458s as finals, 100% duty cycle, 13.5 volts $1395

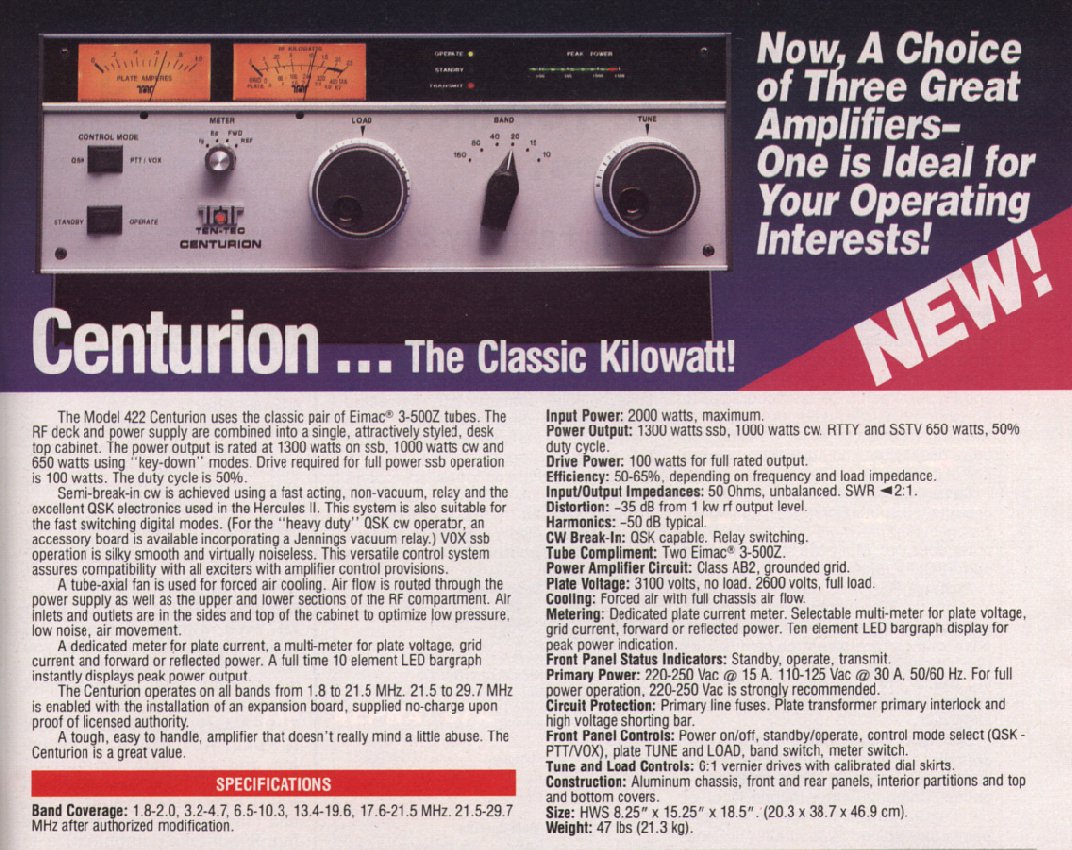

422 Centurion Amplifier, 160-10M, 1300w SSB, 1000w CW, 650w RTTY, Two 3-500Z tubes, Built-in Power Supply $1795
425 Titan Amplifier (1500w), 160-10 (including WARC), 60-80w in for 1500 out, 50-65% eff., Two 3CX800A7 tubes, 220 VAC
444 Hercules I Amplifier (500w)
505 Argonaut, 80-10m, 5w CW output, Solid state, 9mz crystal filter, sidetone, AF and RF gain controls, AC or Lantern battery, SIZE (4.5 x 13 x 7) $288 when new (1971)
5060 Filter, Hi Pass TV/FM
5061 Filter, Lo Pass 2KW+B70
509 Argonaut, 80-10m, 5w QRP Tranceiver, $329 when new
510 Triton I, 80-10m (No WARC), 100w Solid State CW and SSB Tranceiver, Plug in circuit boards, Illuminated dial, SWR/S meter, $519 when new
515 Argonaut 515 QRP Rig, 80-10m, CW, $429 when new
516 QRP Transceiver, 20 watts

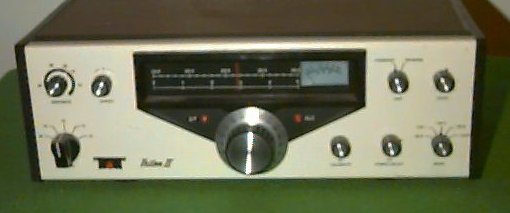

520 Triton II, 80-10m (No WARC), 200w Solid State CW and SSB Tranceiver, plug in circuit boards, illuminated dial, SWR/S meter, $606 when New (200w version of the Triton I)
525 Argosy, 100 watt Analog Tranceiver, CW, SSB, 10w low power position, Optional CW filters, $549 when new
525D Argosy II Digital, 5 or 50 watt, CW, SSB, 80-10m (No WARC), 3 optional filters, Notch Filter, Audio CW filter
526 NEW, UNRELEASED, 6/2meter DSP All-Mode Base, 20 watts, approx 100 memories, 30 selectable filters [The above is PRELIMINARY data from TenTec dated 2/12/99]
535 Argonaut II
536 Delta II
540 Triton IV
544 Triton IV Digital
545 Omni A

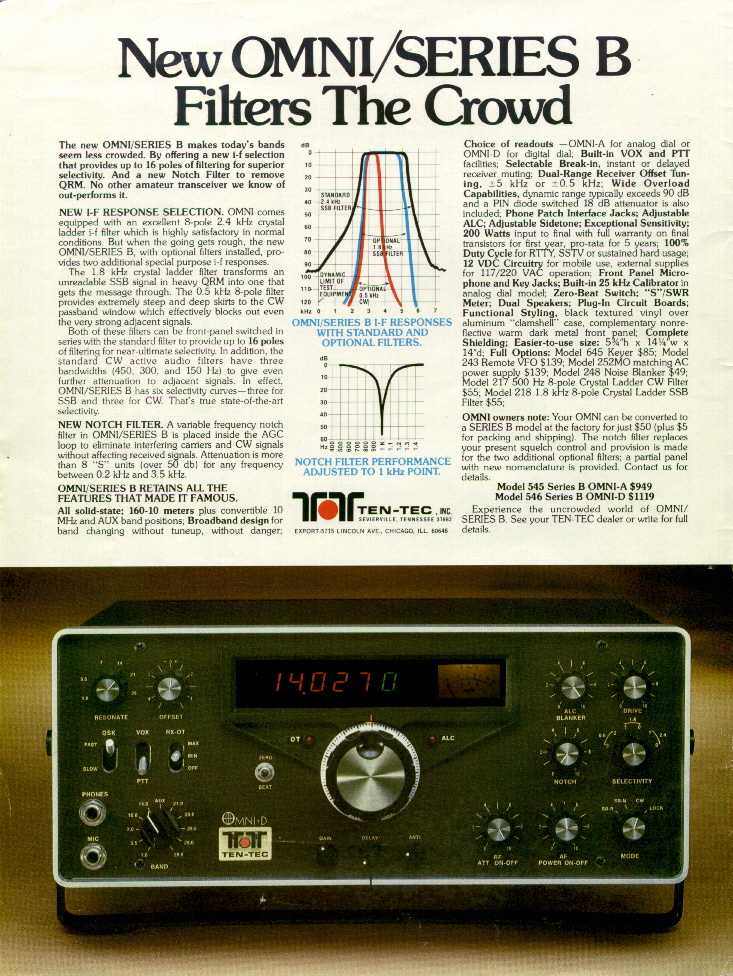

545B Omni A Series B, 100 watt Analog CW and SSB Tranceiver, Notch Filter, 3 Filters plus 3 CW audio filter positions, $949 when new
546 Omni D, 100 watt CW and SSB Tranceiver
546B Omni D Series B, 100 watt CW and SSB Tranceiver, Notch Filter, 3 filters plus 3 position CW audio filter, $1119 when new
546C Omni D Series C, 100 watt Digital Tranceiver, 160-10m (WARC Capable), CW, SSB, positons plus 3 active audio CW filter, $1289 when new
550 Pegasus DSP Tranceiver, 160-10m, 100 watts, CW, SSB, FM, AM (receive only). Computer Front Panel, Software Driven
555 Scout, 160-10m with single band modules (includes one band module), 50 watts, Jones filter, requires 12v at 10amps, $549
556 ARGO (QRP version of the Scout), 5 watts, 160-10m with band modules
560 Corsair I

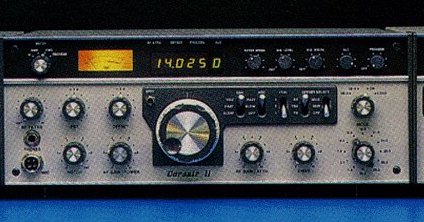

561 Corsair II, 100 watt Digital Tranceiver, 160-10m + 10mz

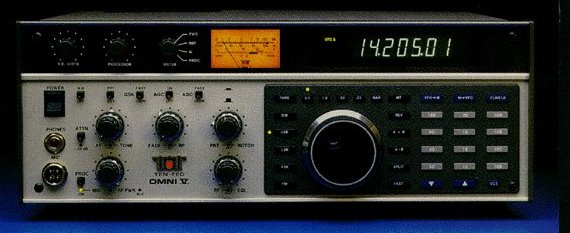

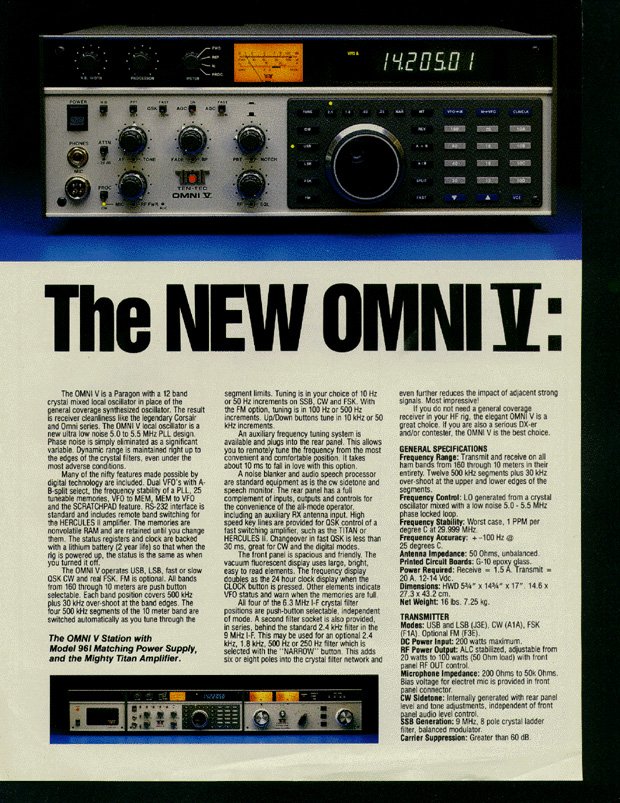

562 Omni V, 100 watt, 160-10m, CW, SSB, FSK, Optional FM, 25 memories, Total of 6 filters, Clock
563 Omni VI, 100 watt Digital tranceiver, CS. SSB, FM, FSK, 100 memories, Noise Blanker, Speech Processor, Clock, $2385 when new

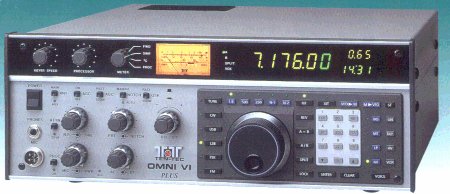

564 Omni VI+, 100 watt, 160-10m, including WARC, DSP Noise Reduction, can use 3 6.3mz IF filters as well as 2 9mz IF filters, USB, LSB, CW, FSK or AFSK, FM, $2585
570 Century 21 Analog CW Tranceiver, 70 watts, Built-in AC Supply, $299 when new

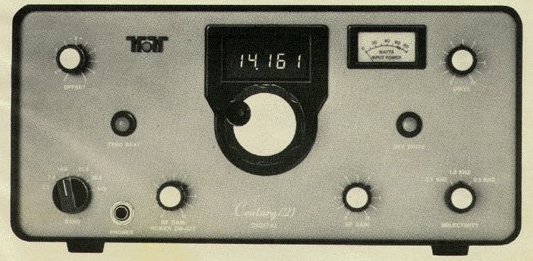

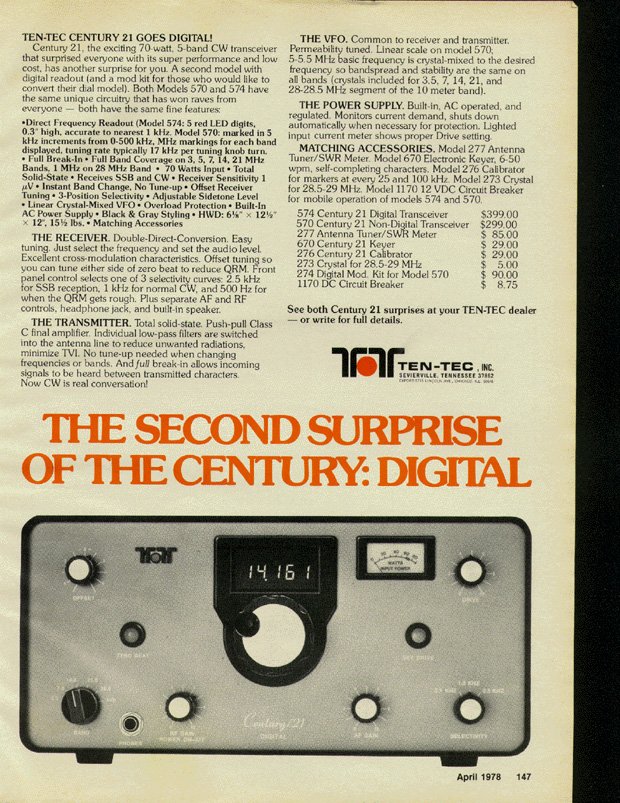

574 Century 21 Digital CW Tranceiver, 80-10m (No WARC), 70 watts, Solid State, Built-in AC Supply, Double-Direct Conversion Receiver $399 when new
579 Century 22, 50 watt Analog CW rig, 80-10m, No WARC
580 Delta, 200 watt, 160-10m (including WARC), Digital, CW and SSB, QSK, VOX, PTT, ALC $849 when new
585 Paragon, Digital, 100 watt, 160-10m, SSB, CW, Optional FM, 5 filter positions, 62 memories, Speech Processor, Noise Blanker, Dual VFOs, Clock, Optional RS-232 and Voice Board

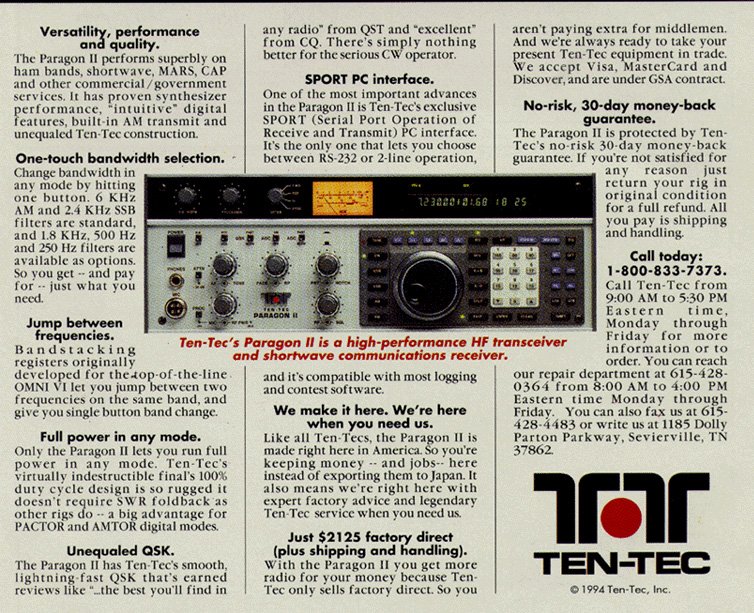

586 Paragon II, Digital, 100 watt, 160-10m, 5 filter positions, SSB, CW, FM, FSK, RS-232, Speech Processor, Noise Blanker, Meemories, Dual VFOs, clock, $2125 when new.
603 Dual Paddle (also know as the KR1B)
604 Dual Paddle Keyer
605 Single Paddle Keyer (Also know as KR-5), $34.95 when new
606 Single Paddle Keyer (Curtis)
607 Key (Single Lever Paddle) $39
645 Dual Paddle Keyer (Matches Omni C/D) $85 when new
670 Century 21 Keyer (Single Paddle) Also use for Delta 580 and others $29 when new
679 Electronic Keyer Board for Century 22 (internal)
700 Hand Microphone. The 700A is for the Argosy, Omni A/C/C and Delta rigs. The 700C is used for the newer Omni V/VI and Paragon rigs.
701 Hand Microphone, Coiled cord and 4-pin Connector (535/ 536/ 561/ 562/ 555/ 563/ 564/ 585/ 586) $24

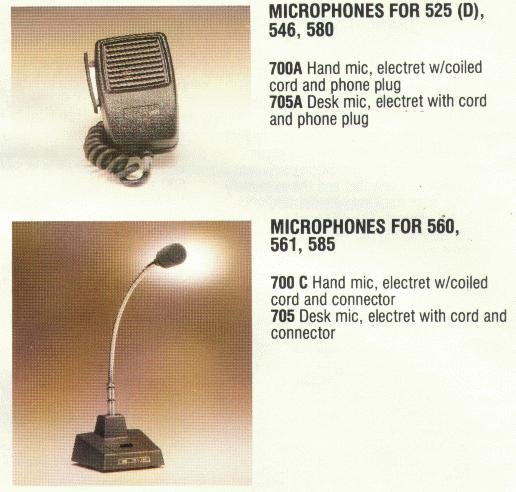

705 Desk Microphone. The 705A is used on the Argosy, Omni A/B/C/D and Delta radios. The 705C is used by the newer serices OMNI, Paragon, etc. $79.95
80-402 Tapped Inductor, 47 step, 0.1-20pf @ 1kv as used in Model 291 $24
80-572 Spare, 4-pin DC Connector $3.00
80-573 Spare, 2-pin DC Connector (for 555/ 535/ 536) $3.00
80-858 Variable Capacitor, 40-500pf @ 3.5kv, as used in the Mopdel 238 $58
801 160m Scout (555/556) Module $29
802 80m Scout (555/556) Module $29
803 40m Scout (555/556) Module $29
804 30m Scout (555/556) Module $29
805 20m Scout (555/556) Module $29
806 17m Scout (555/556) Module $29
807 15m Scout (555/556) Module $29
808 12m Scout (555/556) Module $29
809 10M Scout (555/556) Module $29
81-040 Roller Inductor, 0.1-19ph, silver plated as used in the Model 238 $62
86034 DC 2 Pin Cable for 535, 536, $5
86055 DC 4 Pin Cable as used with 563, 564, 585, 586, $5
86067 DC Cable for Model 555 Scout Only, $5

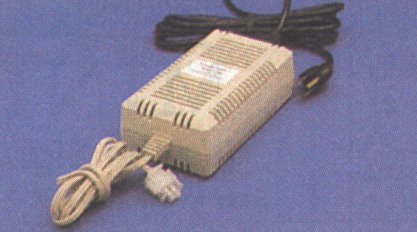

935 Power Supply 3 Amp
936 Power Supply 22 Amp
937 Power Supply, 115/230 VAC, 13.8 VDC, 11amp intermittant, 7amp continuous (made by Astron?) for SCOUT (555/556) $79
938 Switching PS for Scout (Made by Duracom), 3lbs, $79
939 Power Supply for Century 22
9420 Hercules II 115/220 Power Supply, 80amps for amplifier and 20amps for exciter, 6ft power cable, $749
9421 Spare DC Power Connector for 420 Hercules $8.50
9422 Cable, DC power adapter, 14inches with 12 pin Molex connector and heavy duty terminal lugs, normally used with Hercules II $20
9423 Hercules II Remote Control Head, On/Off, Band Select, LED Power indicator, QSK/PTT/VOX control, with 12ft cable $135
960 PS/Spk
961 Deluxe PS/Spk 22 Amp
962 Power Supply, 115/230 VAC, 13.8 VDC, 22amp, built-in speaker (for 561/ 562/ 563/ 564/ 585/ 586) $275
979 115vac Power Supply for the Century 22
AC-4 SWR Meter for PM3/PM3A
AC-5 Tuner for PM3/PM3A
FR-4 Audio Filter
JT-11 Internal Antenna Tuner for Jupitor Transceiver. Made by LDG Electronics. Available as a kit for $209
KR1B Dual Paddle/Keyer (also known as the 603), 6-14 VDC, Creme Color
KR20 Double Lever Keyer/Paddle
KR20A Single Lever Keyer/Paddle, 117 VAC, Aluminum case and color

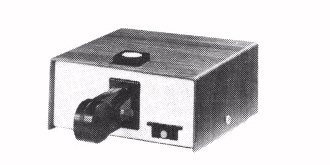

KR2A Single Lever Paddle, Cream Color
KR40A Dual Paddle keyer

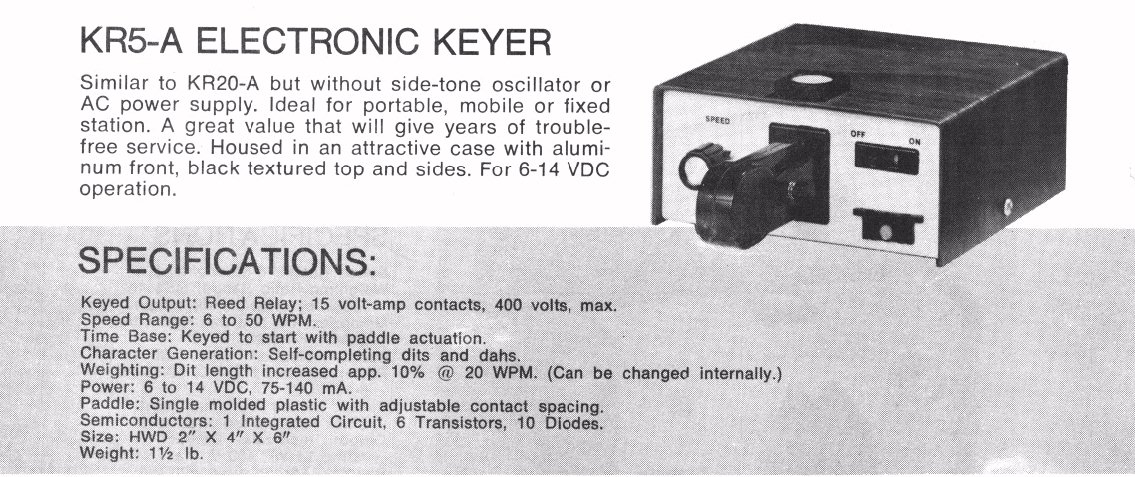

KR5 Single Paddle/Keyer (also know as 605) $34.95 when new

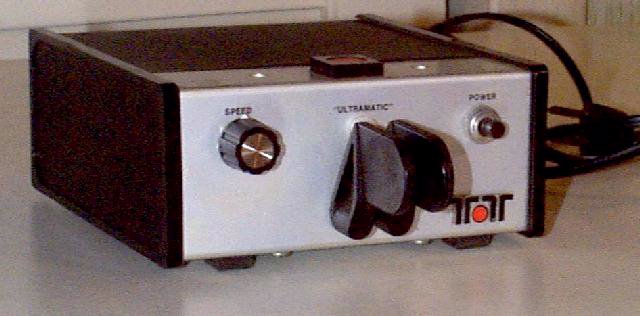

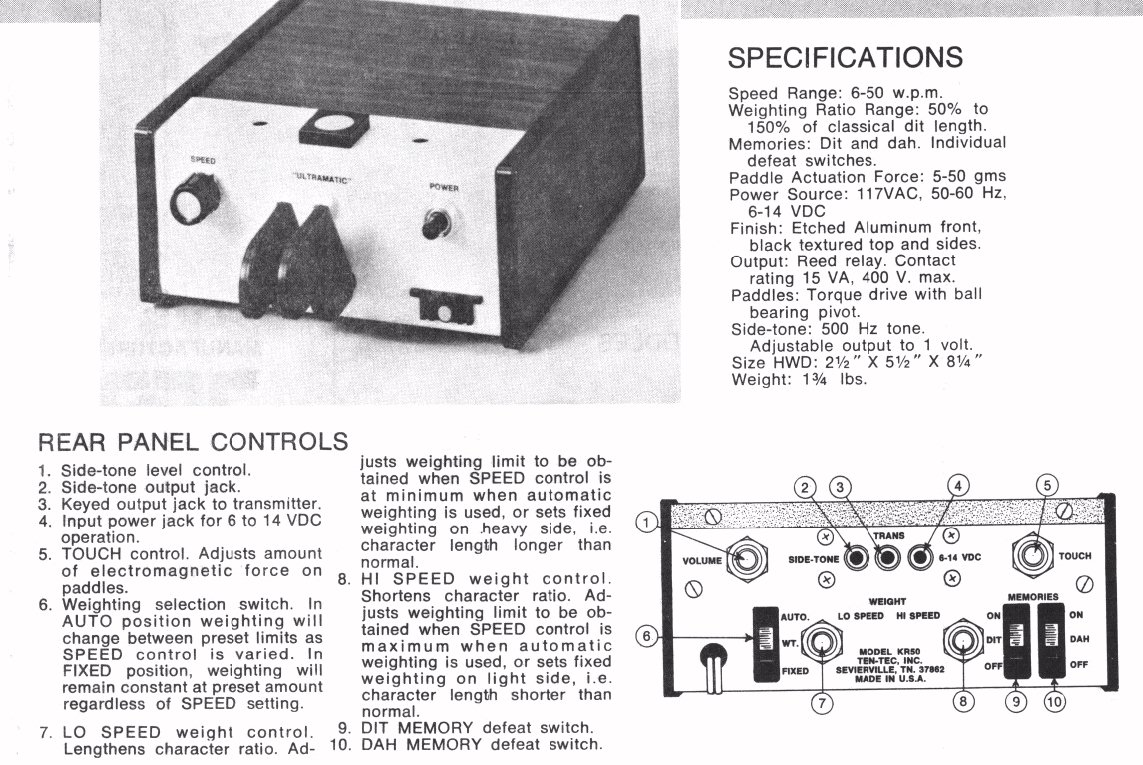

KR50 Ultramatic Paddle/Keyer

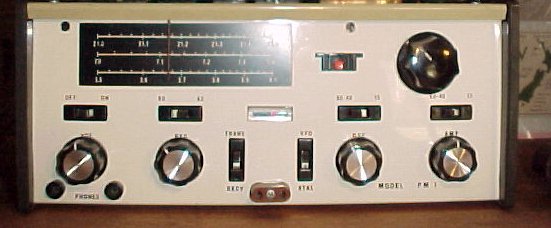

PM1 Powermite 1, QRP CW rig (2w), 80 and 40 meters, Synchronous direct conversion receiver (receives CW, SSB and AM), solid state, 12v DC Size (4.5 x 10.5 x 6.5) (no Case) $49.95 when new (1969-70)

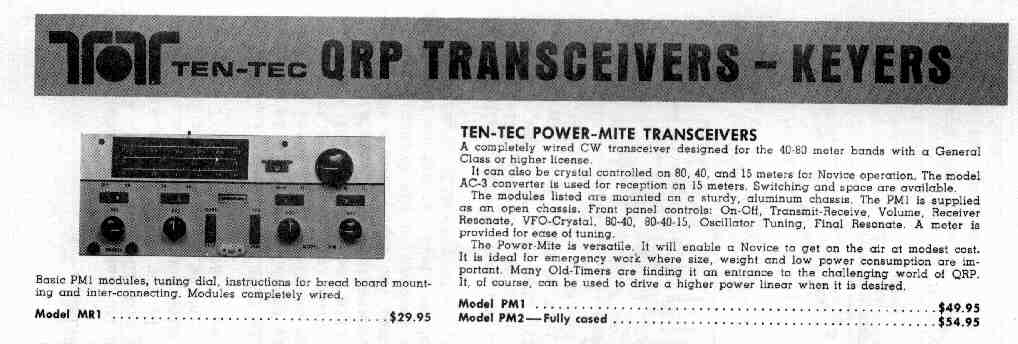

PM2 Powermite 2, Same as PM1 with baked enamel, walnut grained end panel case, $54.95 when new (1970)
PM2A Powermite 2, Same as PM2 with sidetone, $59.95 when new (1970)
PM2B Powermite 2B, Same as PM2 with sidetone and 20m, $65.95 when new (1970)

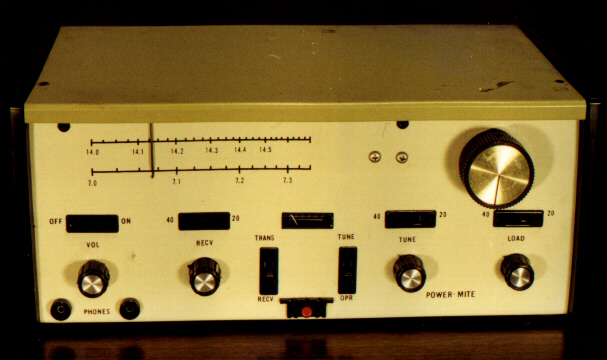

PM3 Powermite 3, QRP CW Tranceiver, 5w on 40 and 20m (80 and 40 available as option), Synchronous direct conversion receiver with dual-gate MOSFET, slide-rule dial, 12v, $69.95 when new (1970)
PM3A Powermite 3A Same as PM3 with break in keying, $79.95 when new (1970)
R320 PC Radio, AM, SSB, CW, 100hz to 30mhz, Connects to PC Serial Port, Windows 3.1/Win 95 Software for Control, $295
RM-238 Rack Mount for Model 238 Antenna Tuner $24
RM-253 Rack Mount for Model 253 Antenna Tuner $24
RM-420 Rack Mount for Hercules II $24
RM-425 Rack Mount for Titan 425 $24

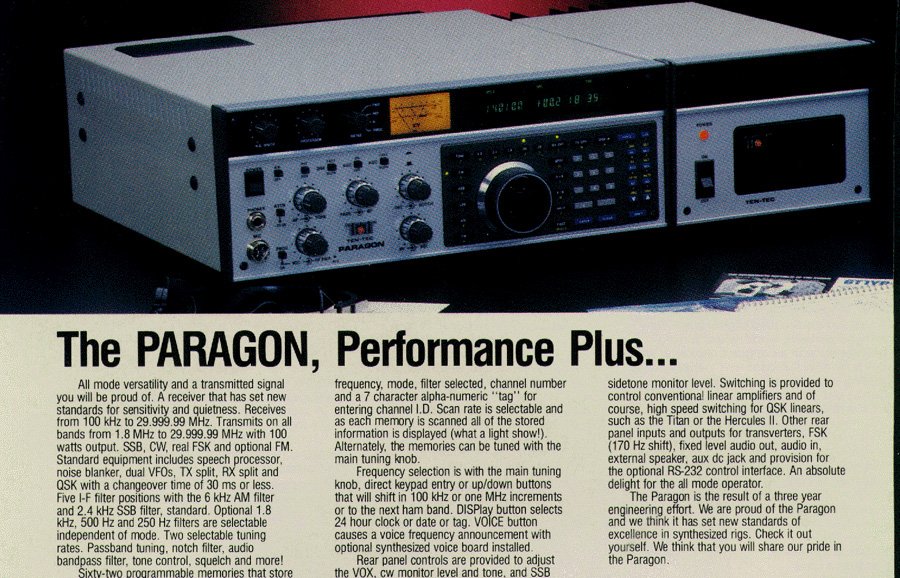

RM-500 Rack Mount for Omni V, Omni VI or Paragon $24
RX-10 Receiver, 80-15m, USB, LSW, CW and AM modes, push button band selector, built-in code practice occillator, 12 or 120v operation, Size (10.5 x 4.5 x 6.5), $59.95 when new
RX315 Receiver, Solid state 80-10m receiver, PTO, 9mz crystal filter, builtin speaker, Calibrator, 115v AC, $229 when new (1972)
RX320 PC Radio, Receives 100KHz to 30MHz, Unlimited memories, Serially connects to PC and Sound Card, 12VDC, 1998, $295
RX325 Receiver
RX330B Multi-Mode DSP HF Receiver, 10kHz to 30mhz, 100 memories
RX331 Receiver, .5 to 30mz., multimode, Rack Mount, designed for remote controlled operations. RS-232 Interface. Same as RX-330 exept for AGC specifications.

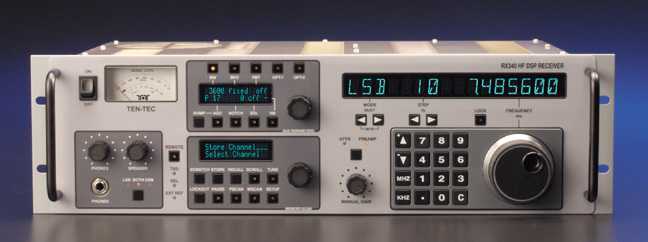

RX340 Rack Mount .5 to 30mhz Commercial Receiver.
RX350 General Coverage DSP Receiver, 100khz to 30mhz, 128 memories, LCD Display
T100 Rare Tube Transmitter, Specs unknown
