MY NEW ANTENNA SYSTEM

After 8 years of trouble free, my home made 2 el Quad began to show
its age. I had 2 broken wires in one month.
In August 2003 I installed my new antenna system.

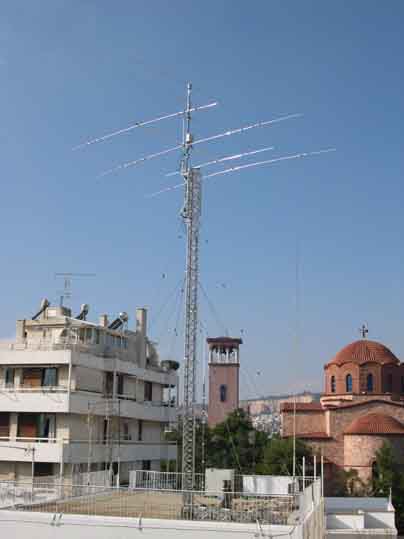

My new antenna is the popular 3 el yagi A4S by Cushcraft with the
40 meters kit and three home made dipols (by fishing rods) for
17, 24 and 6 meters band.

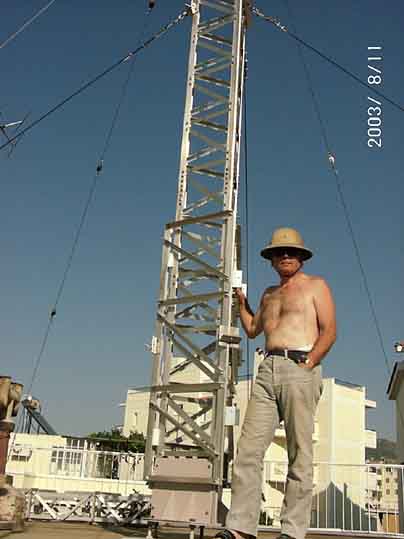

The aluminium tower, with a tram system,
is a Home Made 12 meters high, Designed,
Constructed and Erected only by One person: SV1QN
(For this reason I call it One Man Tower)
It consits by 7 pieces 1,8 meters each, and I used the "gin pole".

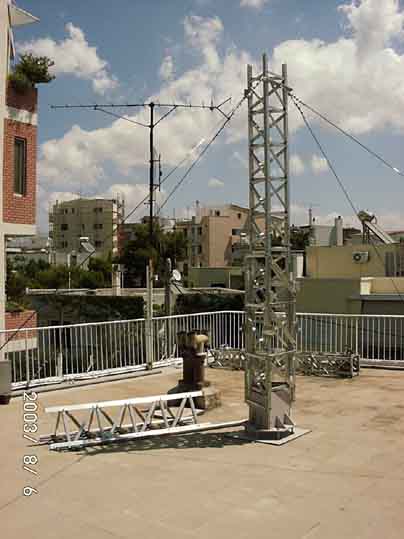

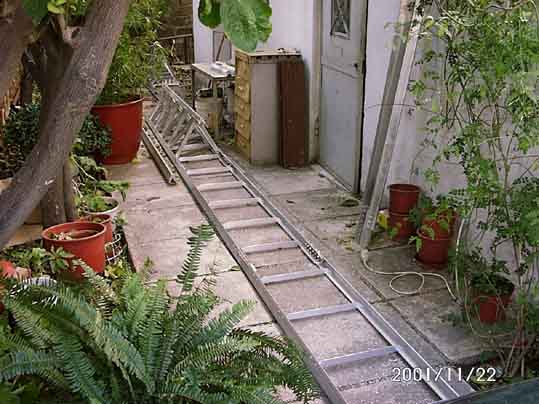

The construction of the tower in my backyard

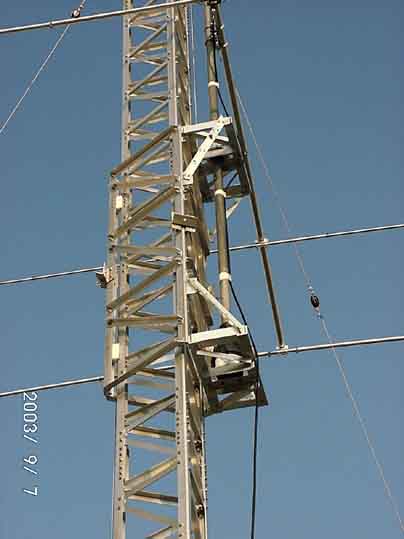

The step by step erection of my home made Tower

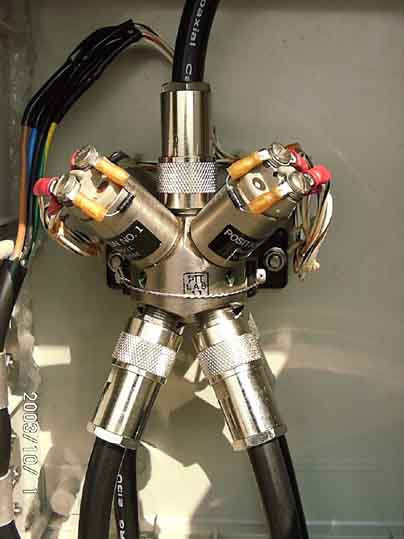

The Relay Box for the Cushcraft and the three Dipols

******

******

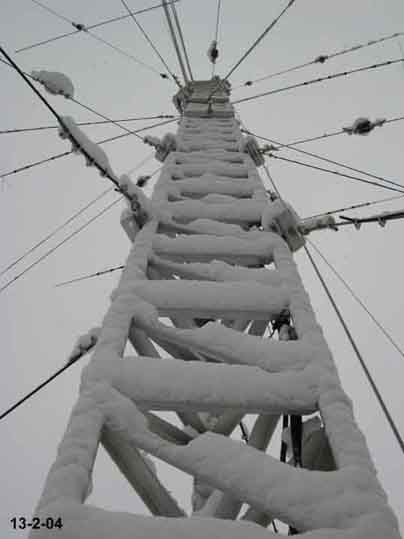

Winter 2003

******
