On the 1200 AFSK AX25 protocol, there is not any problem to "set" the TH-D7 with UiView, just by using the TNC-section of D7. Unfortunately, there is not the same into 9600 BPs ! TH-D7 seems to can not co-operate with UiView, for unknown reasons.
Manos SV1DAY, he found what happens... the problem its a small file into "CMD" Folder (UiView\Cmd).
By modifying few lines of this file, now is possible to activate the TH-D7 as TNC with UiView on 9600 bPs.
The new modified file its the D7-9k6.cmd.
First, you must "Download" this by "click-ing" the link below:
After "Downloading", put the file <( "D7-9k6.cmd") into UiView\Cmd Folder
...

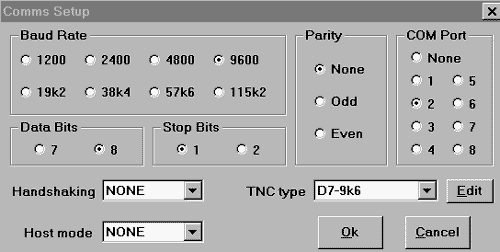

Now with TH-D7 connected into ComPort of your Computer, you must "set" the ComPort Setup like the picture below:
The TNC-type which appears in the picture above, is the new setting depending upon new file (D7-9k6.cmd)
Keep in mind, if you havn't the D7-9k6.cmd file into "UiView\Cmd Folder, this choise doesn't appears !
Finally, try a test like 1200 bPs baud-rate.... by activating the TNC of TH-D7 together with UiView APRS program, TH-D7 must be easily works on 9600 BPs.
"D7-9k6.cmd" file, was modified by SV1DAY ! Tks Manos !
Good Luck and have fun with "9600" !
Makis SV1BSX
...are you looking for UiView "Home"? click here to "DownLoad" ->>> |
Have fun with APRS & PacketRadio!
for any problem, E-mail me
...
Makis SV1BSX Oct 2002
