Kenwood TS-430S oraz automatyczna skrzynka antenowa
![[Rozmiar: 25305 bajtów]](sprzet/ts-430s.jpg)
| Type: | Amateur HF transceiver |
| Frequency range: | TX: 10-160 m + WARC RX: 0.150-30 MHz |
| Mode: | All-mode |
| RF Power output: | 100 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: 1.2 A TX: Max 20 A |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | 270*96*275 mm |
| Weight: | 6.5 Kg |
| Manufactured: | 1983-19xx |
| Other: | |
| Related documents: | User manual (2.3 MB) |

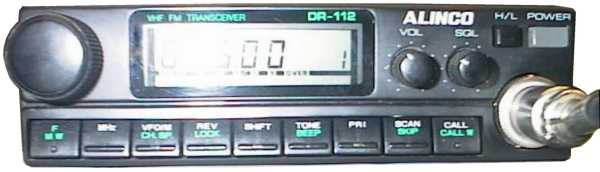

Alinco DR-112
| Frequency range: | 144-148 MHz |
| Mode: | FM |
| RF Power output: | Hi: ? W, Lo: ? W |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max ? A, TX: Max ? A? |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | ? mm |
| Weight: | ? gr |
| Manufactured: | 19xx-19xx |
| Other: | |
| Extras: |

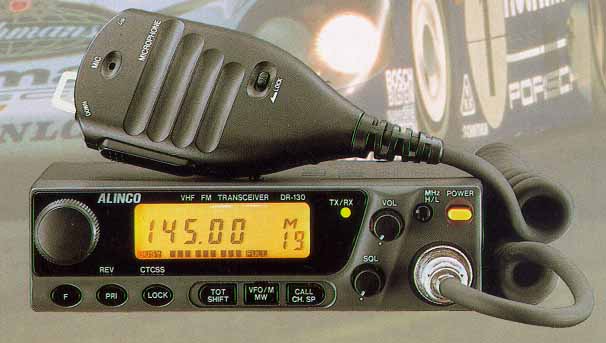

Alinco DR-130
| Type: | Amateur VHF transceiver |
| Frequency range: | 144-146 MHz |
| Mode: | FM |
| RF Power output: | Hi: 50 W Lo: 5 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max 800 mA TX: Max 10.5 A |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | 140*40*155 mm |
| Weight: | 860 gr |
| Manufactured: | 19xx-19xx |
| Other: | CTCSS, 20 memories |
| Related documents: |
Icom IC-706MKIIG
![[Rozmiar: 71578 bajtów]](sprzet/ic706mk2g.jpg)
| Type: | Amateur HF/VHF/UHF transceiver |
| Frequency range: | TX: 10-160m + WARC / 50-54 / 144-146 / 430-440 MHz
(Europe) TX: 10-160m + WARC / 50-54 / 144-148 / 430-450 MHz (USA) RX: 0.03-200 / 400-470 MHz all-mode incl WFM |
| Mode: | AM/FM/SSB/CW/RTTY |
| RF Power output: | 100/100/50/20 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: 1.8-2.0 A TX: Max 20 A |
| Impedance: | 50 ohms, SO-239 (HF/6 m), SO-239 (2 m/70 cm) |
| Dimensions (W*H*D): | 167*58*200 mm |
| Weight: | 2.45 Kg |
| Manufactured: | 1999-200x |
| Other: | |
| Related documents: | User manual (2.3 MB). Service manual (13.3 MB) |
Na wyposażeniu mamy również: radiostację KF DROZDOW konstrukcji radzieckiej,
radmor 3001 z syntezą i kilka sztuk 3001 z kwarcami,
na pasmo CB dwie sztuki Cobra oraz Midland.
Posiadamy dwa radiotelefony PMR
Anteny: KF to W3DZZ, CB 5/8, 145MHz to orginalna antena firmy Radmor 3x5/8, i wiele innych.
Jesteśmy w stanie wypożyczyć urządzenia dla zainteresowanych lokalnych radioamatorów w celu szkolenia i nasłuchów na pasmach radiowych. Zapraszamy do współpracy.
