State of California OES prescribes the Anderson Powerpole as the standard dc power connector for use
by State ACS/RACES personnel, and recommends its use by County and City RACES personnel as well.
County of Orange RACES and other RACES groups throughout California and the United States have now
adopted this connector. This standard, highly reliable connector allows quick and easy
installation and substitution of radios, power supplies, batteries, and other equipment.
Either the 15-ampere (PP15), 30-ampere (PP30), or 45-ampere (PP45) sizes may be used, and any of those sizes mate with each other. The plastic parts are the same for all three sizes. The barrel area (which holds the wire) of the 15-ampere silver-plated contact is smaller than that of the 30-ampere contact, which is smaller than that of the 45-ampere contact, but the contact area is the same. The connectors dovetail together into a compact unit.

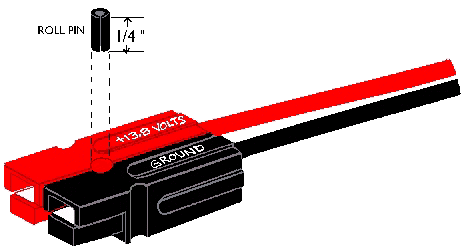

Housings should be mated according to the diagram above, viewing from the contact side (opposite the wire side), tongue down, hood up, RED on the LEFT, BLACK on the RIGHT. Use a 3/32-inch-diameter roll pin, 1/4 inch long, to keep the housings from sliding apart.
Highly conductive silver-plated copper contacts allow minimal contact resistance at high currents. Self-wiping action on make and break keeps conducting surfaces clean. Contact dents keep connectors mated in high-vibration applications and provide quick-break, snap action upon disconnect.
Noncorrosive stainless-steel leaf springs maintain constant contact pressure—ideal for frequent connections/disconnections and intermittent overloading. Durable, high impact-resistant, polycarbonate housing with UL94V-2 flammability ratings comes in many colors for circuit traceability and coding.
Identical connector halves are genderless—making assembly quick and easy and reducing the number of parts stocked. Molded-in dovetails allow for a customized harness in a variety of configurations. When the connectors are disconnected, no metal parts are exposed.
The 15-ampere contacts are designed for 16-20 AWG wire, the 30-ampere contacts are designed for 12-16 AWG wire, and the 45-ampere contacts are designed for 10-14 AWG wire. The contacts can be soldered or crimped to wires. An expensive crimping tool (#1367G1) is available from Anderson. Other, less expensive, crimping tools are available from other sources. After a contact has been attached to a wire, it should be installed into the housing so that the housing spring mates with the underside of the contact.
To remove a contact from the housing, use Anderson insertion/extraction tool #111038G2. You may also substitute a very small blade (jeweler's screwdriver or X-acto knife) to depress the spring, allowing the contact to be removed.
Here are the Anderson part numbers:
15 A Black Red |
Complete Connector |
Housing Only |
Contact Only |
30 A Black Red |
Complete Connector |
Housing Only |
Contact Only |
45 A Black Red |
Complete Connector |
Housing Only |
Contact Only |
The connectors can be panel mounted with clamp receptacles, consisting of two aluminum plates (Anderson part #1462G1), notched to hold the plastic housings when they are dovetailed together.
The plastic housings come in other colors also. Red and black are suggested for standard dc connectors (red as positive and black as negative).
