WA5IYX Navaid RealAudio Files

The following were made using a 1950's vintage Narco Omnigator receiver
and a 6-element Archer 15-1636A FM antenna at 20 feet AGL.
(CST = GMT - 6)

May 28, 1998
AHN 109.6 (VOR) Athens, GA (950 miles) - 1505 CST
IGRI 111.9 (ILS) Grand Island, NE (795 miles) - 1839 CST
YKN 111.4 (VOR) Yankton, SD (930 miles) - 1843 CST
ISLN 108.9 (ILS) Salina, KS (647 miles) - 1900 CST

Due to the rapid QSB it would be nice if they all had idents as fast and frequent as ISLN above!
(The simultaneous voice weather tape loop on AHN didn't help IDing it either.)
The VOR's may run up to 100 watts with their omni/sweeping-antenna pattern while the ILS's use highly-directional fixed antennas fed with as little as 15-w.

August 6, 1998
MYS 108.2 (VOR) Mystic, KY (917 miles) - 1128 CST
CCT 109.8 (VOR) Central City, KY (851 miles) - 1131 CST
OWB 108.6 (VOR) Owensboro, KY (870 miles) - 1133 CST
HNB 109.2 (VOR) Huntingburg, IN (901 miles) - 1134 CST
IPAH 108.5 (ILS) Paducah, KY (772 miles) - 1136 CST
MTO 109.4 (VOR) Mattoon, IL (905 miles) - 1146 CST
DNV 111.0 (VOR) Danville, IL (973 miles) - 1148 CST
CMI 110.0 (VOR) Champaign, IL (934 miles) - 1150 CST
MWA 110.4 (VOR) Marion, IL (794 miles) - 1152 CST
IIKK 109.7 (ILS) Kankakee, IL (1004 miles) - 1155 CST

The above have examples (MTO, DNV, and MWA) of VOR's that use voice and Morse tone for identification. Very often the only part of the voice ID that comes thru clearly will be "VOR" - leaving a lot to the imagination!

For an Es plot display of this event.

(K9SE E-Layer Propagation Assessment Page)

June 11, 2000
AYS 110.2 (VOR) Waycross, GA (965 miles) - 0752 CST
UIA 110.2 (VOR) Andalusia, AL (739 miles) - 0754 CST
HEY 110.6 (VOR) Ozark, AL (783 miles) - 0759 CST
ITOI 108.9 (ILS) Troy, AL (767 miles) - 0803 CST
EUF 109.2 (VOR) Eufala, AL (819 miles) - 0808 CST
MGM 112.1 (VOR) Montgomery, AL (753 miles) - 0820 CST
IMGM 109.9 (ILS) Montgomery (751 miles) - 0824 CST

Animated Plot of Event
June 21, 2000
IFTY109.1 (ILS) Atlanta, GA (881 miles) - 1853 CST
DCU 112.8 (VOR) Decatur, AL (771 miles) - 1854 CST
RQZ 112.2 (VOR) Huntsville, AL (791 miles) - 1900 CST

July 5, 2000
ICKF 108.9 (ILS) Cordele, GA (899 miles) - 1731 CST
LSF 111.4 (VOR) Columbus, GA (831 miles) - 1734 CST

July 6, 2000
BMI 108.2 (VOR) Bloomington, IL (935 miles) - 1057 CST
DPA 108.4 (VOR) Du Page, IL (1030 miles) - 1116 CST
PNT 109.6 (VOR) Pontiac, IL (960 miles) - 1121 CST
JOT 112.3 (VOR) Joliet, IL (1013 miles) - 1125 CST
IRNX 110.55 (ILS) Peoria, IL (922 miles) - 1126 CST
IJX 108.6 (VOR) Jacksonville, IL (885 miles) - 1133 CST
DDC 108.2 (VOR) Dodge City, KS (583 miles) - 1141 CST
ISPI 109.5 (ILS) Springfield, IL (877 miles) - 1146 CST
IHKH 111.5 (ILS) Chicago (Midway), IL (1044 miles) - 1156 CST

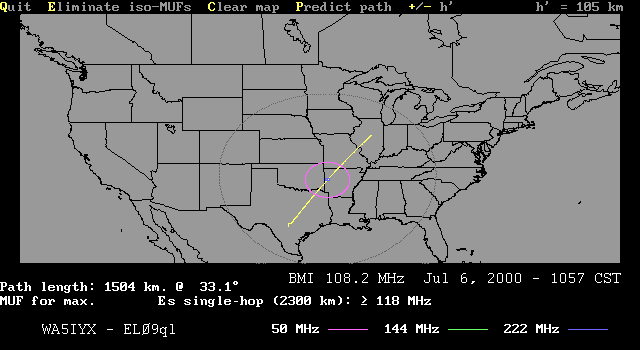

Animated Plot of Event
July 10, 2000
FFM 110.4 (VOR) Fergus Falls, MN (1168 miles) - 1927 CST
ILNK 109.9 (ILS) Lincoln, NE (793 miles) - 1948 CST

July 16, 2000
RIL 110.6 (VOR) Rifle, CO (866 miles) - 2010 CST
EVW 110.0 (VOR) Evanston, WY (1073 miles) - 2023 CST

July 26, 2000
SXW 109.2 (VOR) Eagle, CO (848 miles) - 1831 CST
VEL 108.2 Vernal, UT (971 miles) - 1832 CST


Coordinate Source

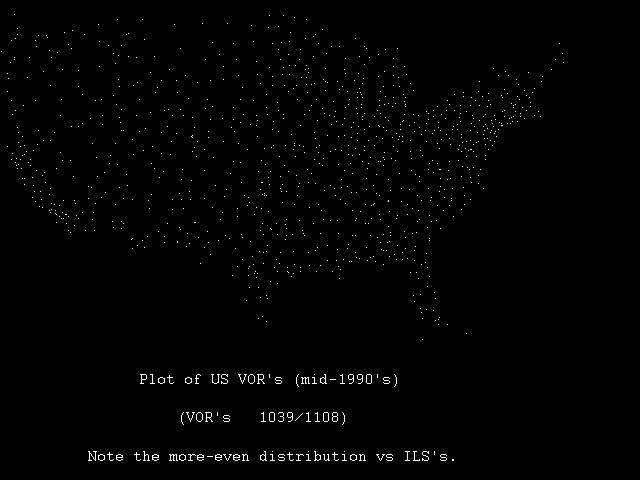

Mass Plot of US VOR's

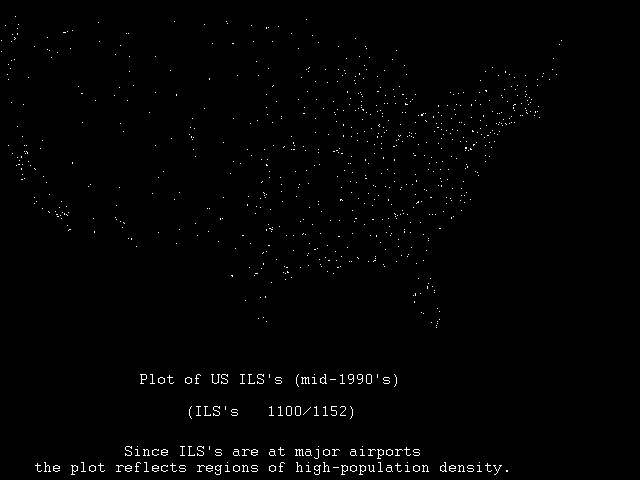

Mass Plot of US ILS's
