P3e MODE-UV transponder

(Flight-Model under construction).

Last update: 25 March 2005



This web page I made for all amateurs and people who donated to the P3e satellite project, and to people who didnít but might be convinced to do a donation after seeing my work J



All the work is done at night times, after finishing my daily QRL work, dinner and shower J



I am sorry for the small text but my free time is very little and lot of work has to be doneÖ

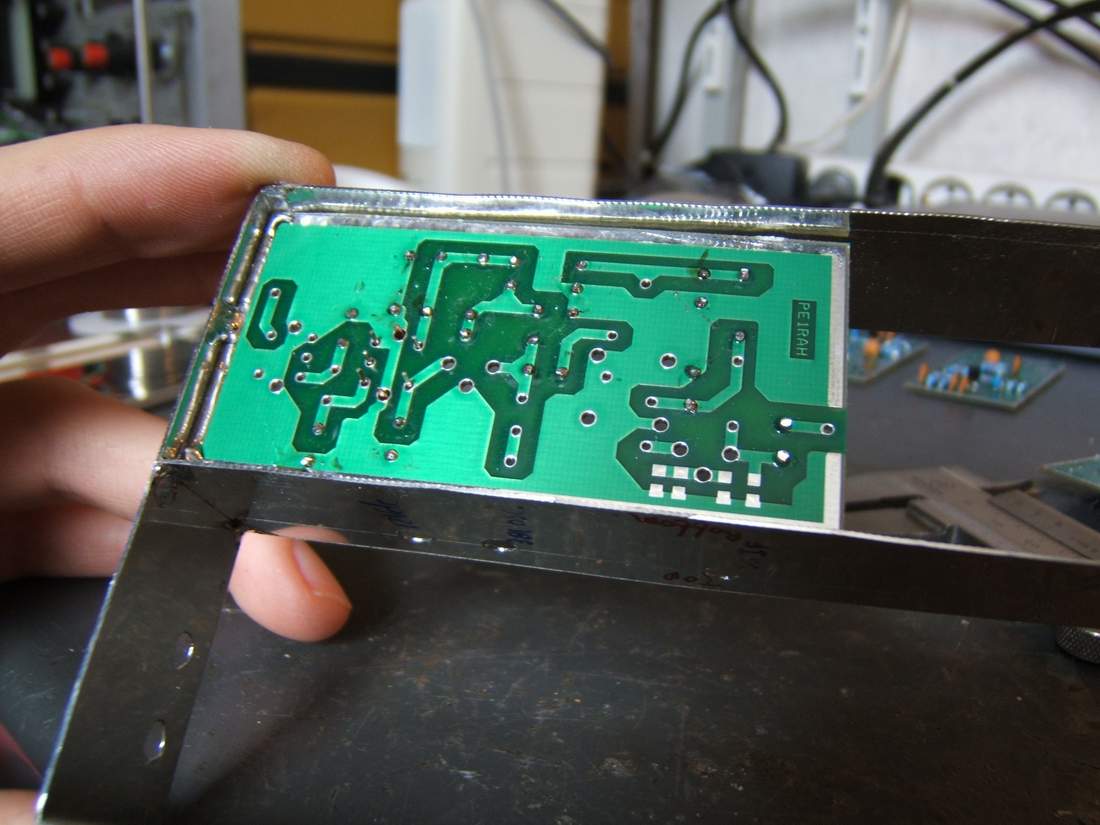

Making the metal box ready, and test if the PCBs fit.

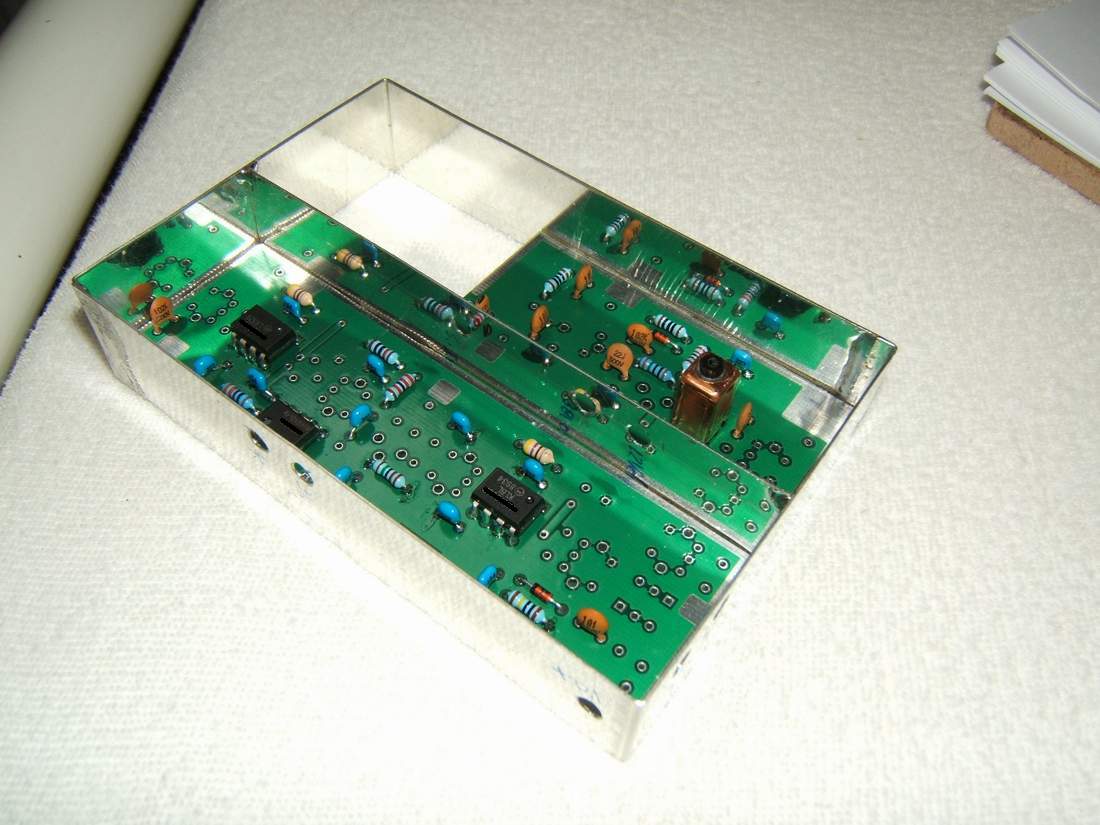

PCB seems to fit J

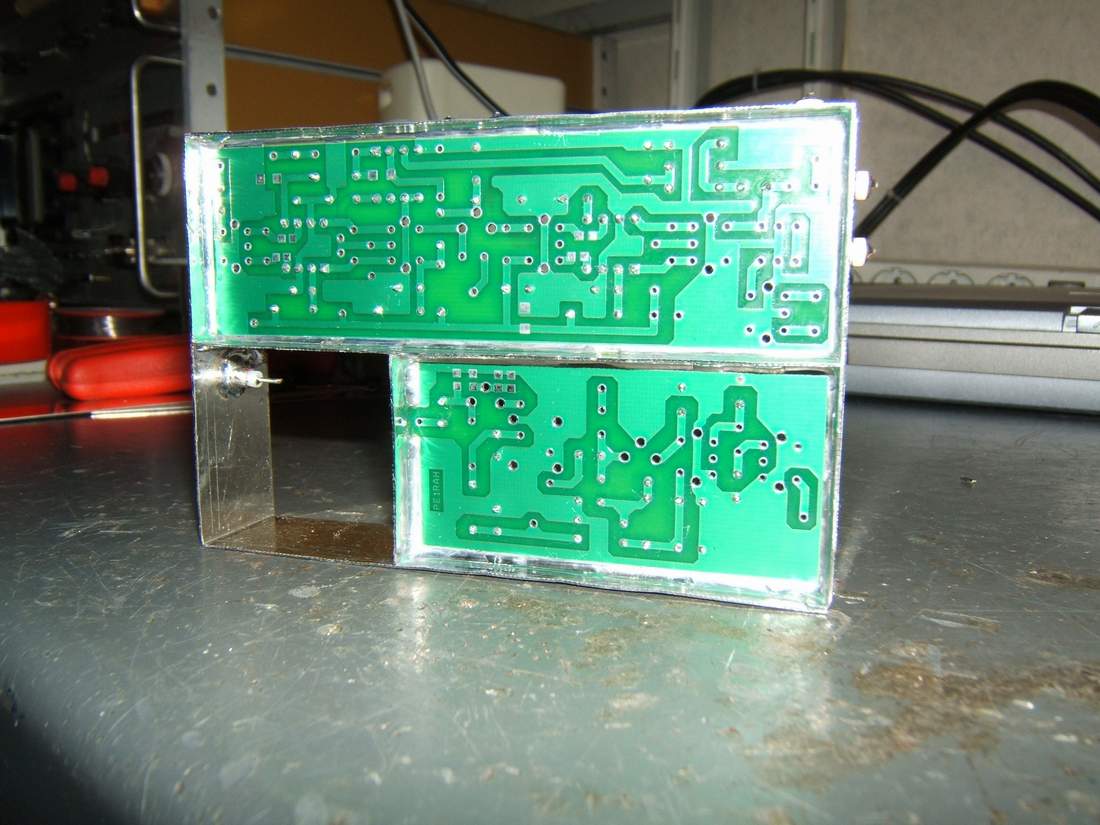

All PCBs in the metal box, ready to be soldered

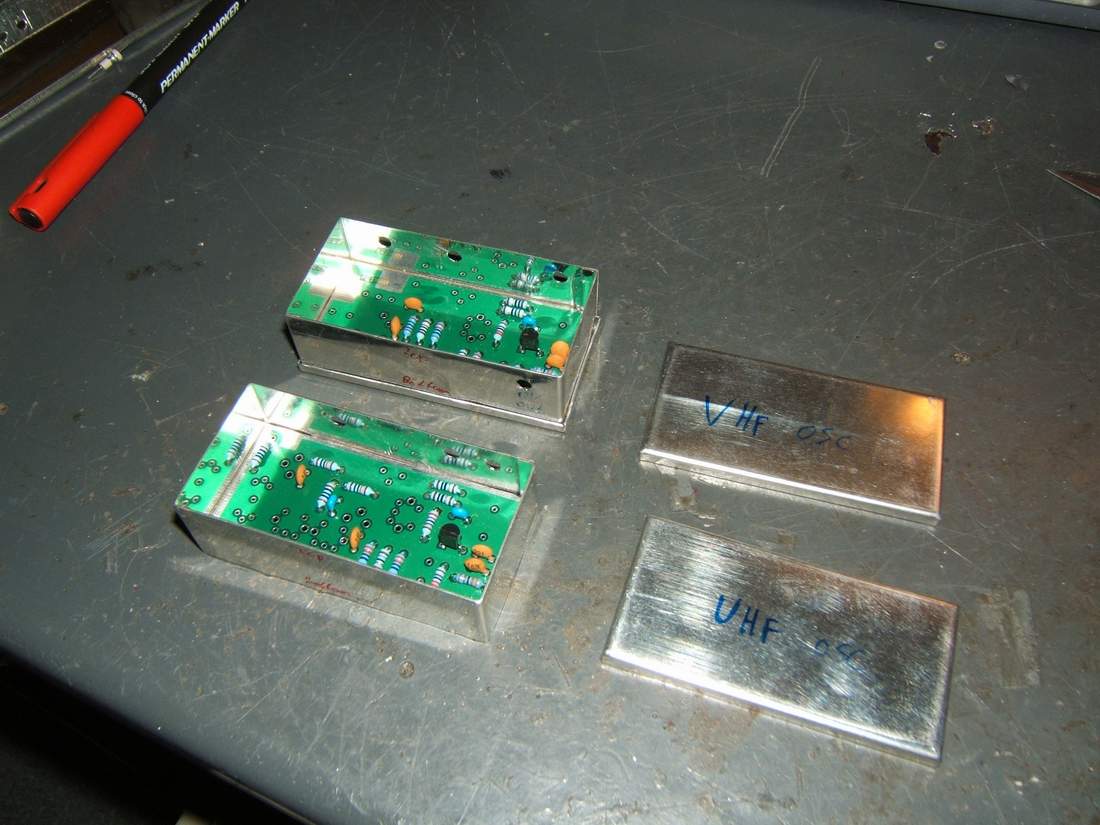

I also checked the oscillator PCBs if they fit in the box.



PCBs and all feed through soldered.

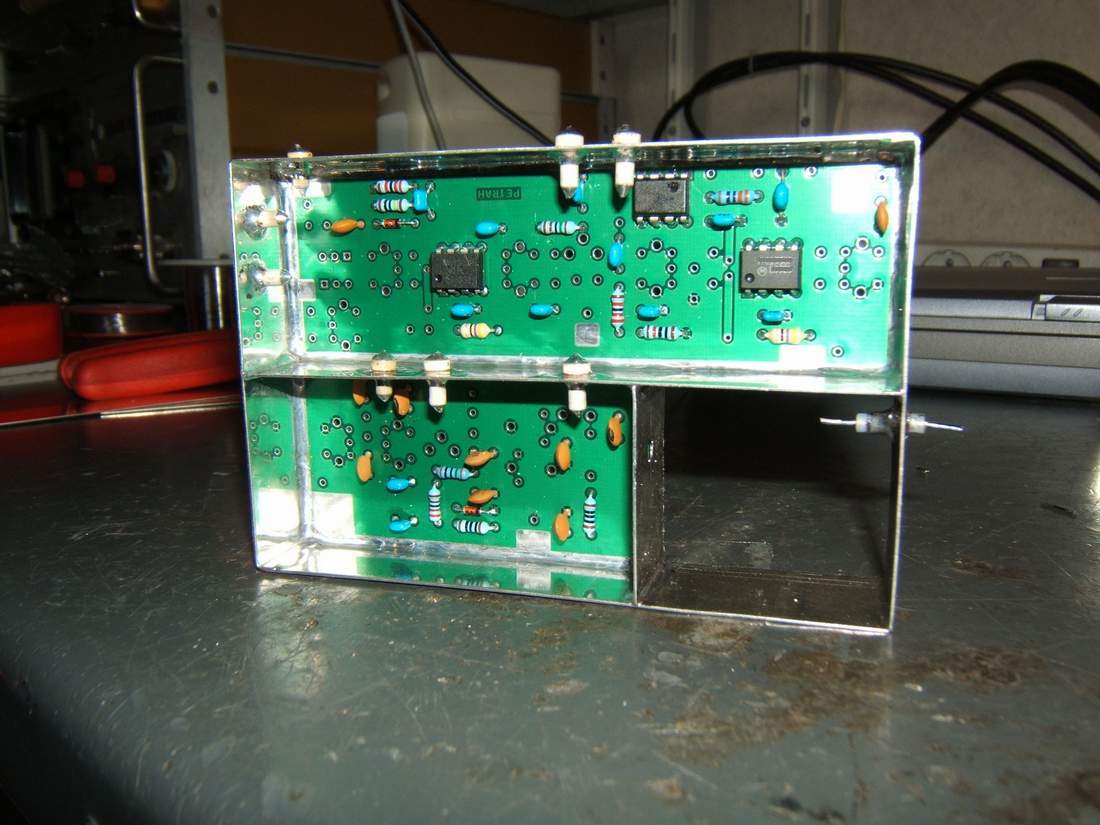

Backside view.

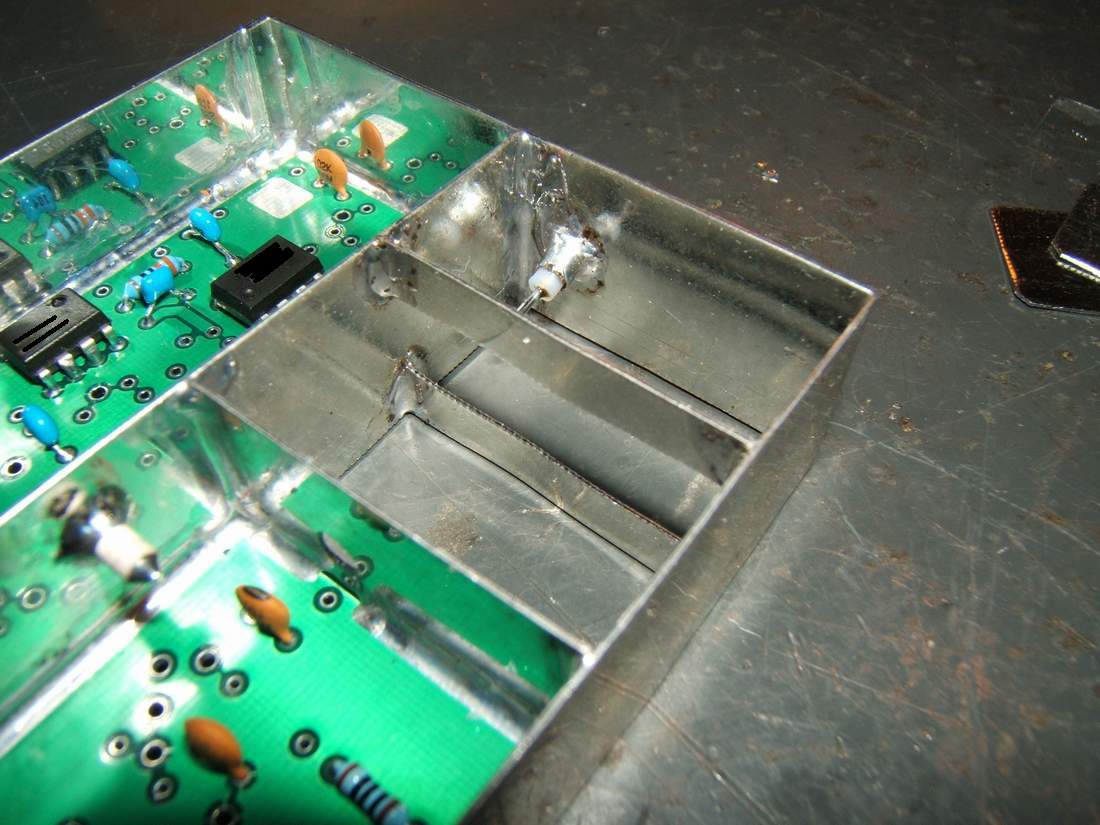

Go on with constructing the 70cm RX filter.

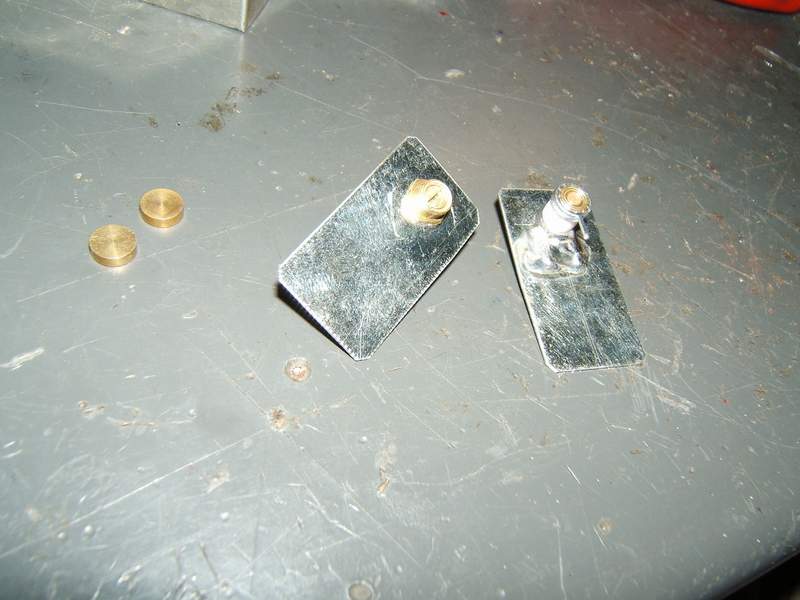

The variable capacitors to tune the filter.

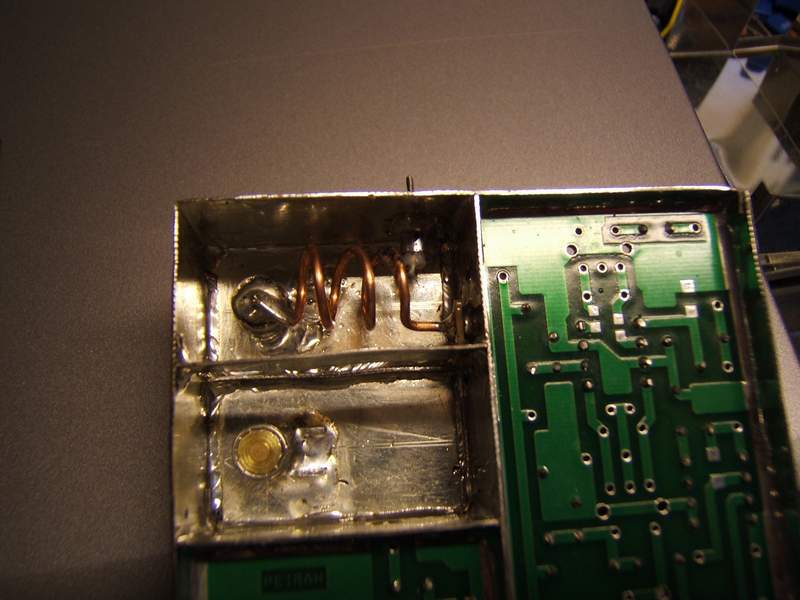

One side ready.

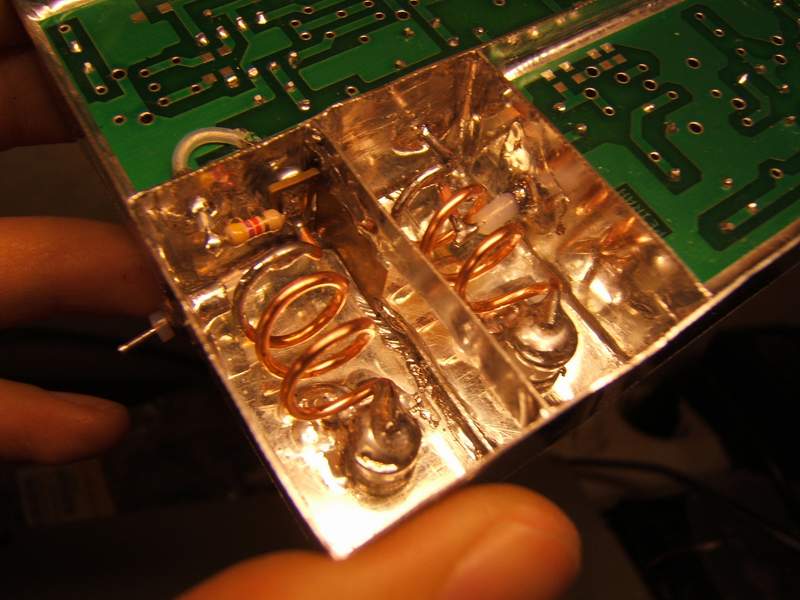

Filter complete ready. Last time we can look at the inside.



Top side view of the filter.

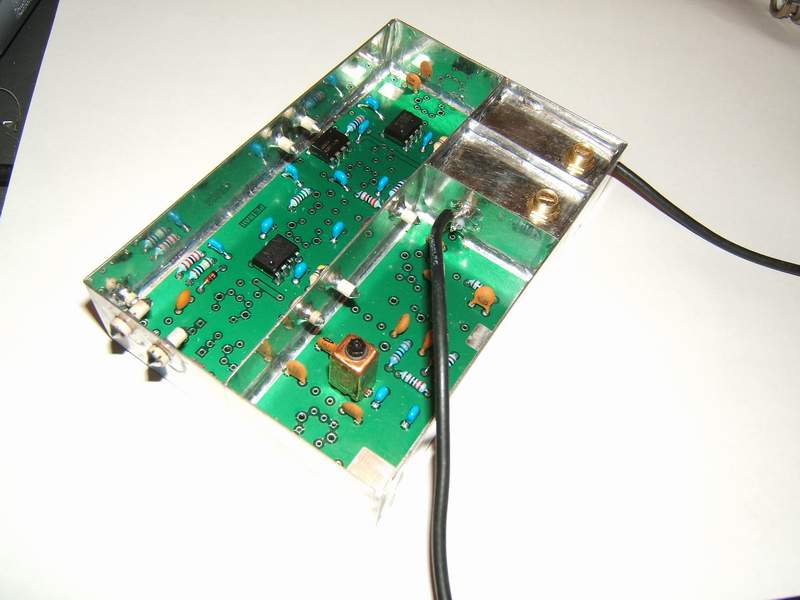

Filter under test.



Thatís it for today, maybe tomorrow I will go onÖ

It all depends on the little free times J





73 de PE1RAH, William Leijenaar.
