My transponder on

HAMSAT (aka VUSAT)



An improved version of my MODE-B transponder design will fly as a secundary payload on board of the Indian HAMSAT, or in amateur world better known as VUSAT (VU = Prefix of India).



The satellite was scheduled to be launched into space on 15 october 2003 on board the Indian PSLV-C5 Mission as an auxiliary satellite. Unfortunatly the satellite has not been launched because problems have been found during the final tests.



I can and do not give any information about the situation of the satellite right now, but to the world I want to show some pictures of the my transponder that has been choosen to fly on the HAMSAT.





This is a picture of me with the MODE-B flight-model in my hands.

The picture is taken at the day I send the transponder to ISRO.





The MODE-B flight model under final test at my home in The Netherlands.

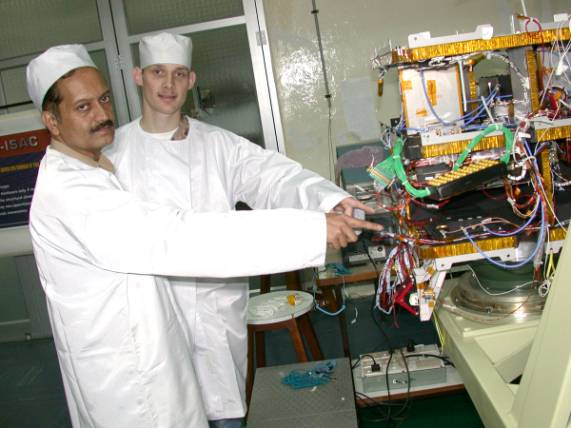

On this picture you can see Mr.Nagesh (VU2NUD: Founder of AMSAT-India) and me in front of the HAMSAT, at ISRO in Bangalore, India.





The little black-painted box we are pointing at is my MODE-B flight-model.

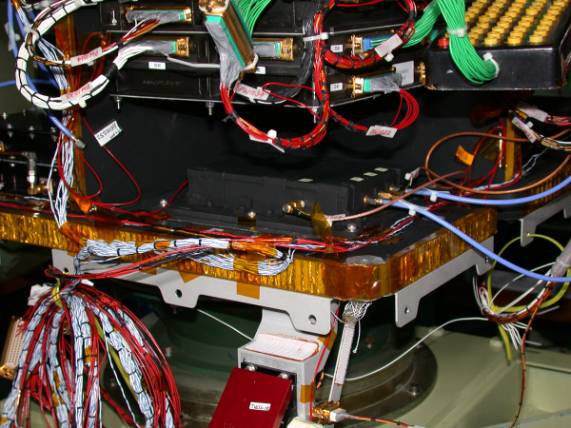

A more close view of my transponder, integrated in the Indian HAMSAT.





For more information about the HAMSAT (aka VUSAT) please look at AMSAT-India webpage.



About my transponder:

Type            : Lineaire (all mode) MODE-UV (ex. MODE-B) transponder

Uplink         : 70cm

Downlink    : 2m with max. 1W PEP

Bandwidth   : 50kHz

Beacon        : CW pre-programmed message beacon on 145.860MHz. (~20mW)

Sensivity     : –106dBm for max. power output

Weight        : ~1kg

Supply         : Transponder 12Vdc , final PA 28Vdc





73 de PE1RAH, William Leijenaar.
