Simple&Cheap 9600bd FSK modem with driver for Atari ST or PC
develloped by OE5DXL
This is HAMWARE
(c) OE5DXL commercial usage prohibited!
Resident multi-port AX.25 driver for IBM compatibles or Atari ST
- 9600bit/s FSK with G3RUH-compatible scrambler, powered from
serial port.
Terminal-Interface with WA8DED-Hostmode.
This is my homebrew 9600bd packet-modem for Atari ST, i know it looks very
experimental, but hey.........it works ;-)
BTW. the IC's used in this modem are nothing special, only a 74HC123 and a TL064!
If you're interested in the L2STX modem/driver (for Atari
Computers) :
L2STXDUO.ZIP (240KB)

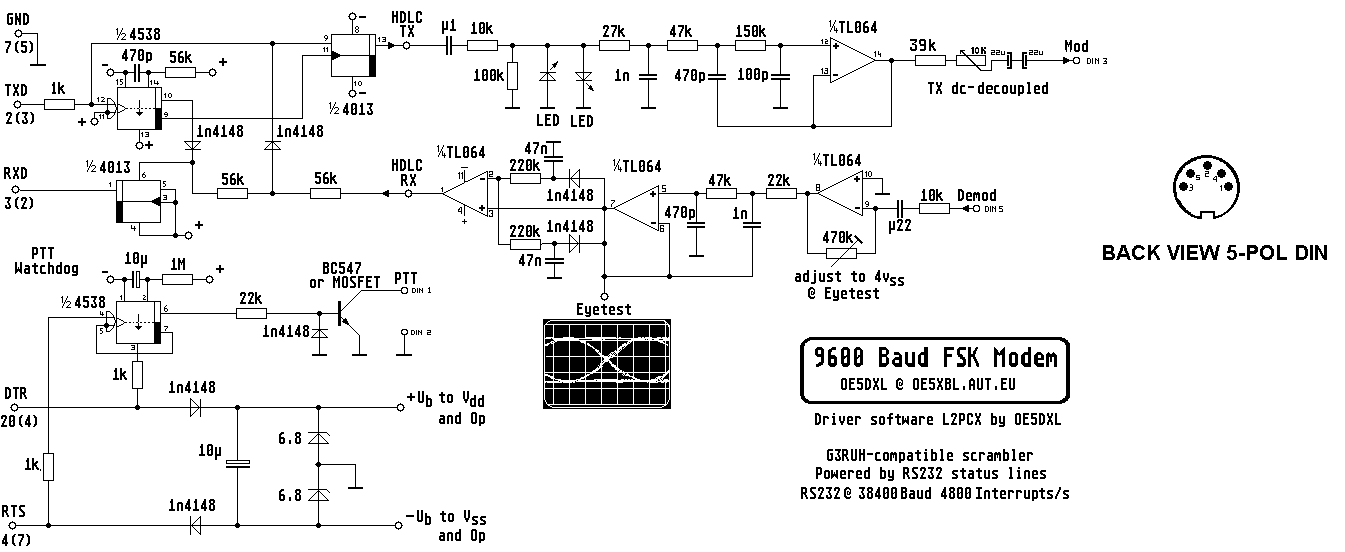

Circuit diagram 9600bd modem.
The ZIP archive contains the driver, PCB layout with circ.
diagrams and German docs.
(translation in Englisch will follow soon)
This is how the L2STXDUO-modem looks when it is assembled:
LSTX driver works with simple 9600bd FSK modem or 1200bd AFSK .
Circuit diagram's of both modems are included within the .ZIP
file, and these are made switchable on one PCB:
1200bd -or- 9600bd. But not at the same time !!
So no gateway unless you have 2 MFP's (like the TT has, but there
is a modification for it.
You need to add an extra MFP chip to standard ST's, like
described in this file: MFP_2.LZH
The orginal documentation is written in German, but i used
'RUFTRADE2' to translate it into 'almost' English ;-)
MFP_2 manual 'in almost English' :)
To use the new added serial port you must install the driver
L2TTX,
To all F030 users:
L2STX DOES NOT WORK on a F030 due the fact that the MFP chip not
is wired to the serial port, but there is a modification
available.
(need to add a MAX232...if you want the file, ask me...)
With L2STX you also need an Atari terminal prg wich works with
Hostmode like SP6.5 or DigiPoint4.10
SP6.50.02 280Kbytes
(DL1XAO)
NEW SP6.52.03 118Kbytes (Y2K update!)
DigiPoint
4.10 - 1,1Mbytes (DL8HBS)
If you are interested in the PC version of this
modem&driver L2PCX:
This is the Circuit Diagram of
L2PCX modem for IBM & compatibles.
and you need the PC driver L2PCX.ZIP
The original Manual is written in
German, but this is a partly translated Englisch version. (transl. by
DL9RDZ)
If you are looking for a PCB LAYOUT (DL4OBG), or the SMD version (OE5DXL),
you don't have to look any further :-)
In the manual there is something written about a 4port/node
version of L2PCX, if you were looking for them, here they are:
L2PCX4.LZH (4 ports)
and L2PCX4N.LZH (4 ports
+ Node)
These drivers are not the most recent ones, and maybe more
critical with PC hardware then the 1-port driver,
but in case you want to try them.....
(REMARK: FIFO-buffer can't be used, it must be switched off
before you start L2PCX driver,
a cold start from the PC will do this or use a tool like
TEST550.EXE )
If you need a "super tiny" term. prg (5KByte!) for
testing your L2PCX modem, you could use OE5DXL's LTERM.EXE
(No fancy packet prg...but for test purposes it's okay....the
Modula SRC is included.)
If everythings works okay, and you need a more fancy packet prg,
try SP9.75 (by Sigi Kluger). You can find this file, and some
other links and info's on PA3FUA's
homepage.
LINK's to other L2PCX resources:
For info about a LINUX version of L2PCX and some other stuff
about this subject you may look here:
http://wwwcip.informatik.uni-erlangen.de/user/hsreiser/hamradio/index.html
( NEW: 6 Feb.1998 - Bugfix: L2PCX driver & Linux Kernel
v2.0.xx )
and this is a link to AGW packet engine for Win95, now supporting
OE5DXL modem.
http://www.raag.org/sv2agw/general.htm
Other Links:
Homepage DigiPoint 4.10 - DL8HBS
Some Atari HAM tools by Chris, DG6LAC
Homepage from Odo, DL1XAO (German language)
