Repeater modification for the TM-D700 E version. Only remove the repter jumper and you will get in the menu:
1-7-5 repeater Hold on/off
1-7-6 repeater fixed band and crossband

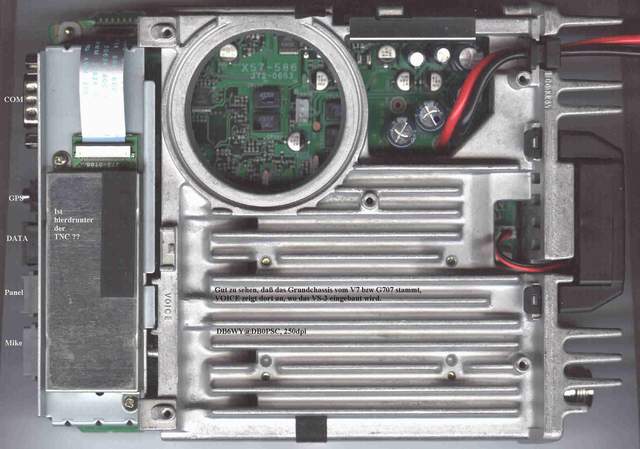

Top inside view

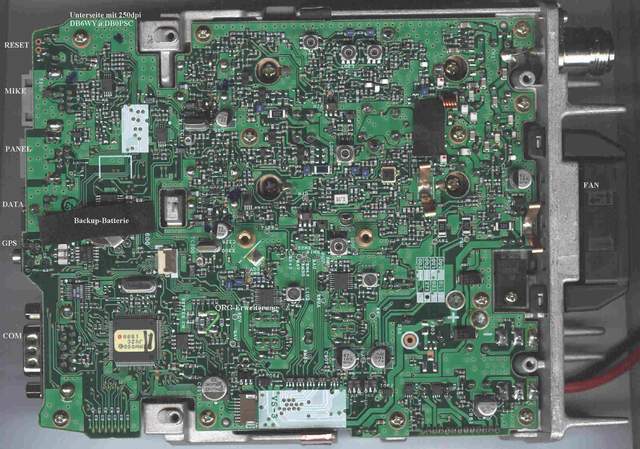

Bottom PCB view. Cut the green wire for extended RX.
