OX2K EQUIPMENT

OLE B. SKIPPER EDR Frederiksund
PA2CHR

50 MHz - OZ2M

  Comments Sponsor/Owner
Antenna 4 el. yagi Sponsor EDR Frederiksund (OZ3SW)
Rotator G-1000 SDX OX3LG
Rotator cable On site OX3HI
Tower On site OX3HI
Feeders with connectors On site OX3HI
Radio Yaesu FT-847 OZ1PIF
Amplifier 4CX1500 OZ2ELA
Sequenzer PTT-box OZ1PIF/OZ2ELA
Power supplies MFJ 4245-MV 45A OZ1PIF
Voice Keyer WVK OZ2M
Head set(s), keyer and foot switch   OZ2M
Cables and accesories - OZ2M
PC HP4150 OZ2M

144 MHz - OZ1DJJ/OX3LX

  Comments Sponsor/Owner
Antenna 4 x 20 elements, 5 WL, Elite Force, EF-1702 Sponsor: FORCE 12
Combiner M2 OZ1DJJ+OZ2ELA
Rotator G-5600 B OX3HI
Rotator cable On site OX3HI
Tower On site OX3HI
Feeders with connectors On site OZ2ELA
Coaxial relays Transko OZ2ELA
Radio Yaesu FT-847 OZ1DJJ
Amplifier 4CX1500 OZ2ELA
Pre amplifier SSB Electronic Sponsor Dansk Microbølge Teknik
Sequenzer Home made OZ2ELA OZ2ELA
Power supplies MFJ OZ1DJJ
Head set(s), keyer and foot switch   OZ1DJJ
Cables and accesories - OZ1DJJ
PC Lap top OZ1DJJ

432 MHz - OZ2ELA/OX3LG

  Comments Sponsor/Owner
Antenna 4 x 29 el. 9 WL,  23 dBd, M2 Sponsor OLE B. SKIPPER
Combiner M2 Sponsor OLE B. SKIPPER
Rotator G-5600 B OX3HI
Rotator cable On site OX3HI
Tower On site OX3HI
Feeders with connectors On site OZ2ELA
Coaxial relays Transko OZ2ELA
Radio Yaesu FT-847 OZ2ELA
Amplifier 2 x 3CX800 OZ2ELA (Spare tubes are needed)
Pre amplifier SSB Electronic Sponsor Dansk Microbølge Teknik
Sequenzer Home made OZ2ELA OZ1PIF/OZ2ELA
Power supply MFJ-4225, 12 V 25 A. OZ1JSH
Head set(s), keyer and foot switch   OZ2ELA
Cables and accesories - OZ2ELA
PC Toshiba 4000CDS OZ2ELA

1,3 GHz - PA5DD

  Comments Sponsor/Owner
Antenna Kellyville dish, 49 dB Kellyville
Rotator On site Kellyville
Rotator cable On site Kellyville
Rotator interface On site Kellyville
Tower On site Kellyville
Feeders with connectors Waveguide on site Kellyville
Coaxial relays In pre-amplifier OZ1FTU
Slug tuner - PE1PFW
Radio 1 ICOM 1275 PA5DD
Radio 2 ICOM 1271 OZ7AMG
Amplifier 1 100 W SSB Electronic PA5DD
Amplifier 2 100 W solid state OZ1BGZ
Pre-amplifier 1 SSB Electronic Sponsor Dansk Microbølge Teknik, two pre amps.
Pre-amplifier 2 SSB Electronic SP-23 PA5DD
Sequenzer Design OZ1FTU OZ1FTU
Power supply MFJ-4245, 12 V 45 A. OZ1JSH
Head set(s), keyer and foot switch - PA5DD
Cables and accesories - PA5DD
PC Lap top OZ2Q

23 cm situation report here.

HF 1, OZ1JSH

  Comments Sponsor/Owner
Antenna 7 elements On site
Rotator G-2800 OX3HI
Rotator cable On site OX3HI
Tower On site OX3HI
Feeder with connectors On site OX3HI
Radio Yaesu FT-1000D OX3HI
Amplifier ETO 91B OZ1JSH
Head set(s), keyer and foot switch   OZ1JSH
Cables and accesories - OZ1JSH
CW keyer - OZ1JSH/OZ2Q
PC Lap top OZ2Q

PA tune up procedure here.

HF 2, OZ1FQ

  Comments Sponsor/Owner
Antenna Home made longwire/deltaloop for 40 m, 80 m and 160 m, 12 m and 17 m will be made on site. OX3HI
Feeder with connectors On site OX3HI
Radio Yaesu FT-1000D OX3DU
Amplifier ETO 91B OZ2ELA
Head set(s), keyer and foot switch   OZ1FQ
Cables and accesories
CW keyer - OZ2ELA/OZ2Q
PC   OZ2Q

PA tune up procedure here.

ACCCESSORIES

Accessories Sponsor/Owner
Bird watt meter and probes (OZ2ELA/OX3LG)/(OX3HI)
MFJ 259B antenna analyzer 1-170MHz OZ1PIF
2 m portable radios All
Tool box (spanners, keys...) Each team must ensure that they have the necessary tools

SPARE PARTS

  Comment Sponsor/Owner
Azimuth rotator G-1000 SDX
Az/El rotator G-5600 B OX3HI
HF radio Yaesu FT-1000D OX3OX
144 MHz PA 3CX800 OZ2M
50 MHz PA PA
HF2 PA PA OX3DU
144 MHz LNA SSB Electronics OZ1DJJ
432 MHz LNA SSB Electronics OZ2ELA
Voice Keyer Voice Keyer OZ1DJJ
Sequenzer Sequenzer OZ2ELA

NOTES

On the Mountain there is access to 3 x 208 VAC, 3 x 100 A and 60 Hz. At the Team Arctic premises we have access to 230 VAC and 60 Hz. OX3HI says that most 220-230 VAC equipment will work fine on 208 VAC. However, better check at home.

In Kellyville there is access to 120 VAC and 208 VAC 60 Hz.

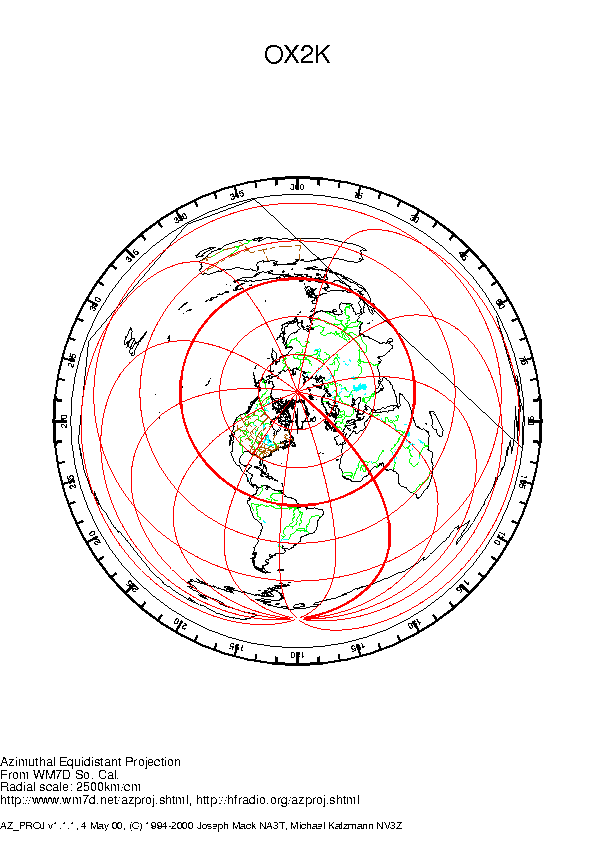

Beam map as seen from OX2K.
