My setup.

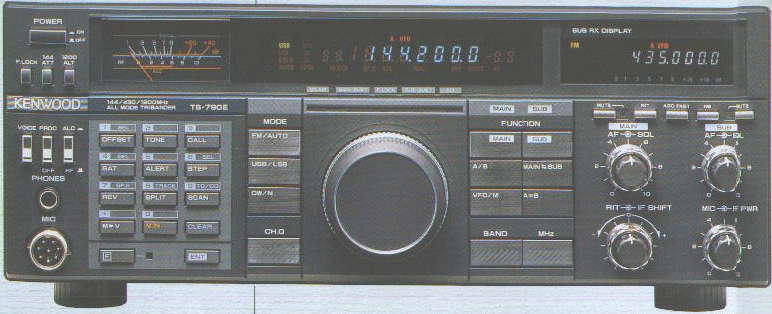

I am using a TS-790E from Kenwood with built-in 23 cm unit.


On 70 cm i have also an amplifier based on 2 times 2C39 giving about 80 Watss in SSB and 100 Watts in CW.
Under the rooftop i have a preamp built by ON1LCS and designed around a MGF1302.

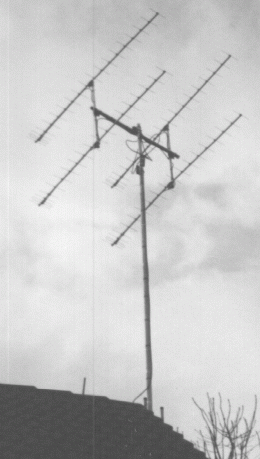

My antenna for 70 cm is a group of 4 times 19 el of Tonna in box at 14 m agl and 25 m asl.
For 23 cm i have a 20 el beam at 13 m asl and 10 Watts from the TRX. For the future i have planned a preamp ,more power and more qso's on 23 cm. Unfortunate here around Ghent we have a lot off qrm due to an old military radar.
For 10 mtr i am using a transverter from Tokyo (HX-240) and my TS-790 on 2 mtr. I have an amplifier of 100 Watts and a vertical (A99) at 11 m agl.



Me in Friedrichshafen having a break
