ANTENNAS



4 towers (35,32,27,20m), 3 wood towers (20m) for Bobtail Curtains



bullet

160m: HALF Sloper to USA, HALF SLOPER to JA

                 Dipole

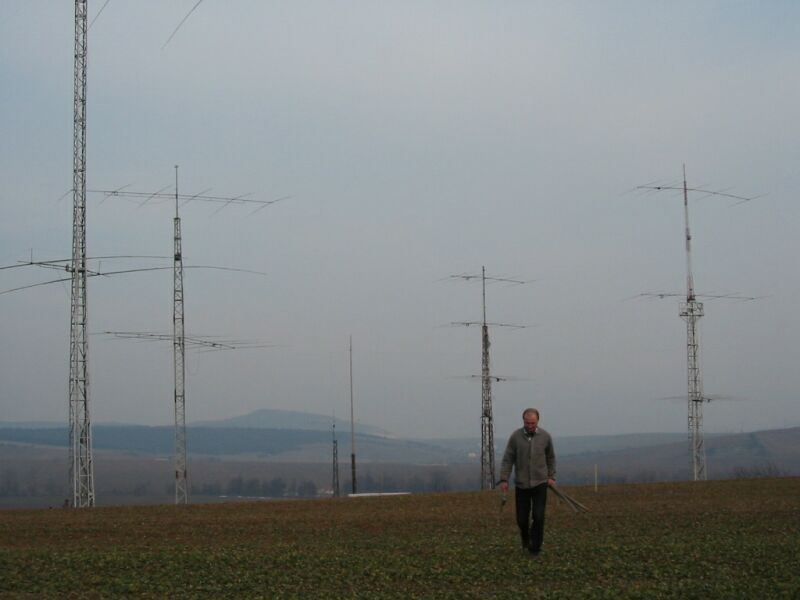

                 Beverages 240m (30,100,180,250,320°)









bullet

80m: Bobtail Curtain 30&210°

                Bobtail Curtain 300&120°

                Dipole

                Beverages 240m (30,100,180,250,320°)



bullet

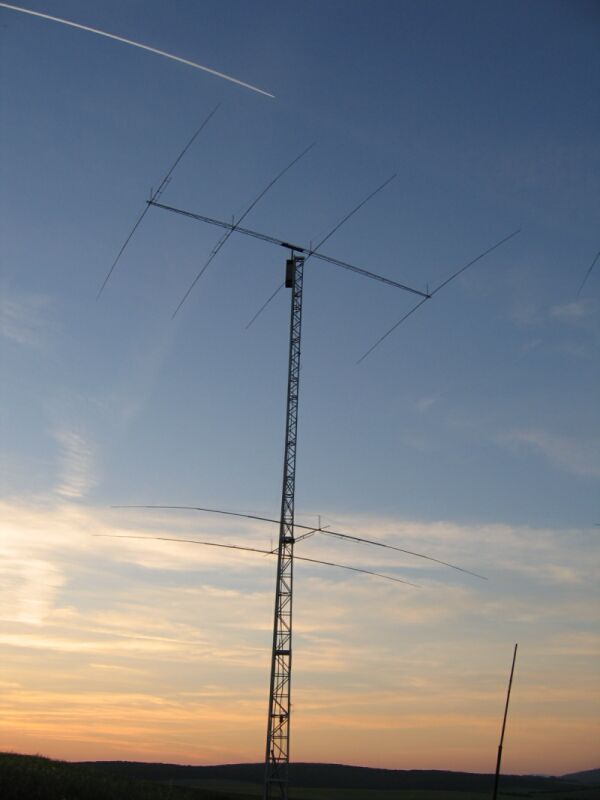

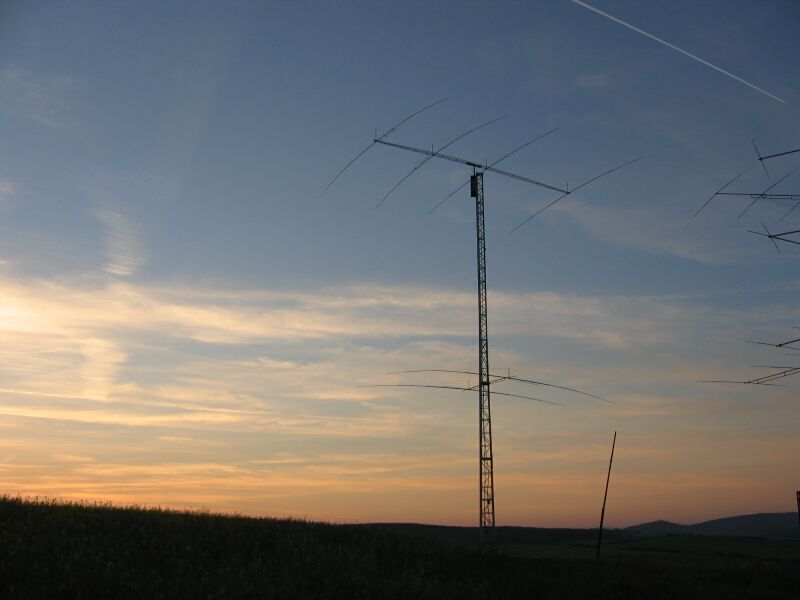

40m: 4 elements HB9CV@35m (boom 20m), 2 el.HB9CV@18m (boom 5.3m)







bullet

20m: 6/6 Yagi @ 30,18m W2PV+OWA design(boom 16.25m + 14.5m. TOP rotatable, bottom fixed)




bullet

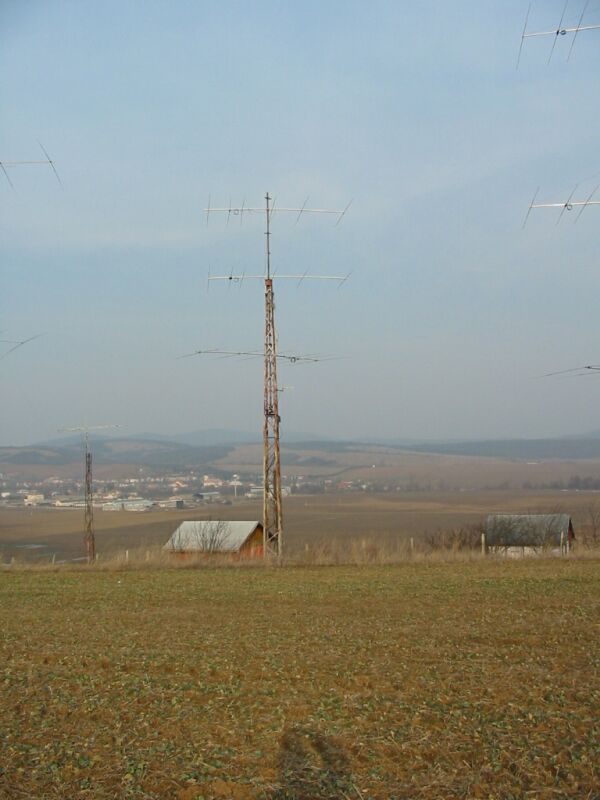

15m: 6/6/6 Yagi @ 27,18,9m OWA design (boom lenght 10.82m 2xrotatable,bottom fixed)






bullet

10m: 6/6/6 Yagi @ 20,15,10m OWA design (boom lenght 7.1m, 2xrotatable, bottom fixed)
