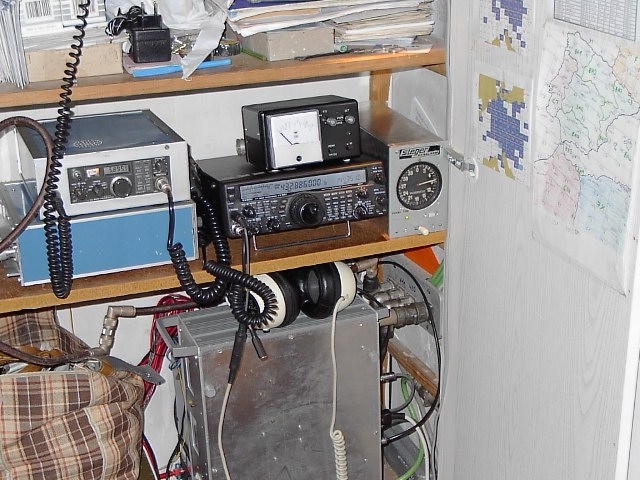

Za zařízení bych chtěl poděkovat hlavně tátovi OK1VPZ

1296 MHz -

Rig: FT290
Output: max. 15 W
Anténa: Colinear 12prvku
Koax: -16dB = PWR 500mW

[Bohužel výkon jde do antén asi poloviční na 2m a méně, než 12W na 70 cm, protože na střechu vede kolem 40 m koaxu....]

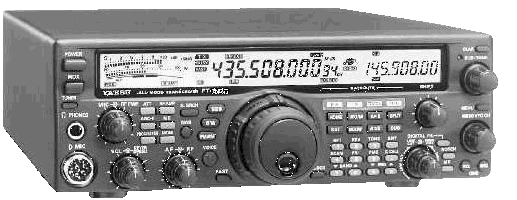

FT-847 GENERAL (aneb informace o FT-847 v angličtině)

• Frequency Coverage:

• Receive: 0.1 - 36,99 MHz
                  37 - 76 MHz
                108 - 174 MHz
                420 - 512 MHz

  Transmit: 160-6 Meters, 2 Meters, 70 Centimeters (Amateur bands only)

• Mode: USB, LSB, CW, AM, FM, F1(9600bps Packet), F2(1200bps Packet), AFSK
• Number of Memory Channels: 74 (1 scan edges and 4 call)
• Antenna Connector: 3xSO-239, 1xN [HF, 6 Meters, 144 MHz, 430MHz, 50 Ohm]
• Usable Temperature Range: -10°C to +50°C
• Frequency Stability: Better than ±2 ppm (0°C to +40°C) SSB,CW,AM,AFSK
•
                                 Better than ±5 ppm (-10°C to +50°C) SSB,CW,AM,AFSK
                                 Better than ±(1kHz ± 5 ppm) FM
• Supply Requirement: 13.8 V DC (±10%, negative ground)
• Current Drain (at 13.8 V DC): Transmit max. power: 22A (@ 100W RF output)
•
                                                 Receive standby: max.1,5A
• Dimensions (approx): 260(W) x 86(H) x 270(D) mm
• Weight (approx): 7 kg

 Transmitter

• Output Power:

•    160-6 m : 100 W (25W AM)


  2 m/70 cm :  50W (12,5W AM)

• Modulation System:

• SSB: Balanced modulation


  FM: Variable Reactance
  AM: Early Stage (Low Level)

• Spurious Emissions: Harmonics : -40 dB (HF), -60 dB (50/144/430MHz)
•
                         Non-harmonics : -50 dB (HF), -60 dB (50/144/430MHz)
• Carrier Supression: More than 40 dB
• Unwanted Sideband Supression: More than 40 dB
• 3rd-order IMD : -31dB down (14MHz, 100W PEP)
• Microphone Impedance: 200-10k Ohms (600 Ohms)

Receiver

• Sensitivity:
• • SSB, CW, RTTY (10 dB S/N):
  • • 0.25 µV (1.8-30 MHz)
    • 0.2 µV (50MHz)
    • 0.125 µV (144/430 MHz)
  • AM (10 dB SINAD):
  • • 20 µV (0.5-1.8 MHz)
    • 1 µV (HF/6m/144/430MHz)
  • FM (12 dB SINAD):
  • • 0.5 µV (28.0-29.99 MHz)
    • 0.20 µV (50 MHz)
    • 0.16 µV (144/430 MHz)
• Squelch Sensitivity:

• USB,LSB,CW, RTTY - Less than 2 µV

  FM - Less than 0.2 µV

• Selectivity:

• USB, LSB, CW, RTTY - More than 2.2 kHz/-6 dB ; Less than 4,5 kHz/-60 dB

  AM, FM-N - More than 9.0 kHz/-6 dB ; Less than 20 kHz/-60 dB

  FM - More than 15 kHz/-6 dB ; Less than 30 kHz/-60 dB

• Spurious and Image Rejection Ratio: HF/6m : More than 60 dB,144/430 : More than 60 dB
• Audio Output Power (at 13.8 V DC): More than 1,5 W at 10% distortion with an 8 Ohm load
