70cm EME LOG - OK1TEH

EME LOG 432 MHz - OK1TEH JO70FD(single Yagi)

QSOs worked by OK1TEH on 70 cm : white - JT65, yellow - ICW, blue - contest, red - SSB
Loc: JO70FD   QTH: Prague, Capital city of Czech republic     320 m.a.s.l.

Equipment: FT-847 + preamp MGF 1502 0,4dB NF Gain 15dB by DJ9BV +15m long cable
           50W, since 6th June PA with GI39b/GS31b tube (hardware by OK1VPZ), max. 600W PEP CW, 300W WSJT

Ant:       23el DK7ZB (5,7m boom - gain 17 dBd)

------------------------------------------------------------------------------------------------------------
Date       | UTC      |  QRG  | Call  | TX/RX |  Max   | Loc  |  km | ANT + PWR        |init| WAS | WAC| QSL
------------------------------------------------------------------------------------------------------------

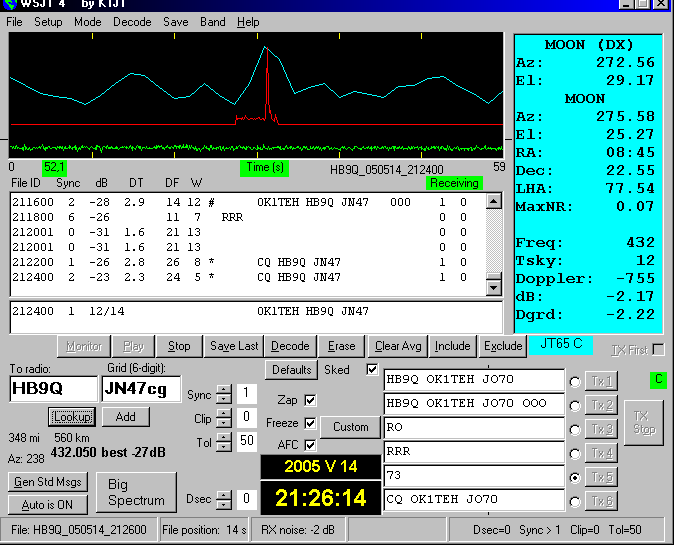

14.05.2005  2104-2118  432.045  HB9Q    R0  0  -22>-27  JN47CG   560  15m DISH  + 2000W   1#        EU # QSL
11.06.2005  ICW  2046  432.034  HB9Q     0  0   539     JN47CG   560                                   # QSL

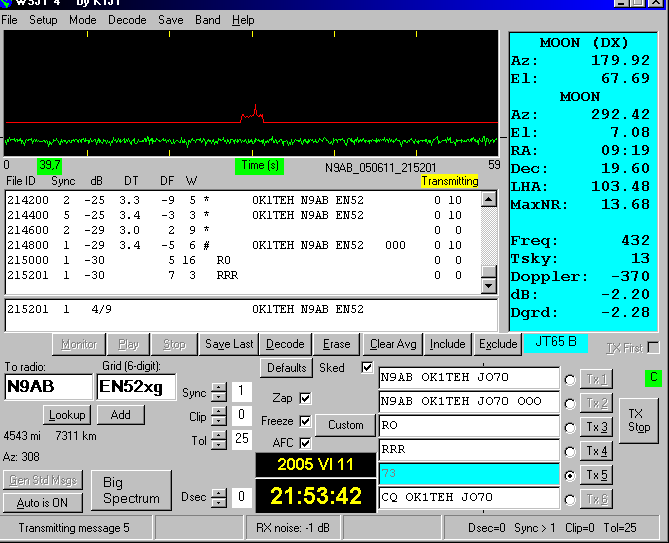

11.06.2005  2142-2152  432.055  N9AB    R0  0  -25>-29  EN52XG  7314  16x22el Y + 1000W   2#   IL   NA # QSL
17.06.2005  2315-2343  432.048  K2UYH   R0  0  -24>-??  FN20QG  6663  8,7m DISH + 1000W   3#   NJ      # QSL
22.10.2005  ICW  0907  432.034  HB9Q     0  0   539     JN47CG   560                                   # QSL
12.11.2005  ICW  2004  432.011  OH2PO    0  0   419     KP10XH  1280  16m DISH  + 1000w   4#           #
13.11.2005  ICW  1648  432.013  DL9KR    0  0   539     JO40DE   440  16x24el Y + 1500W   5#           # QSL
------------------------------------------------------------------------------------------------------------
02.04.2006  0816       432.077  HB9Q    R0  0  -13>-24  JN47CG   560                                   # QSL
25.03.2006  ICW  0525  432.056  VK3UM    M  0   419     QF22RO 15913  10m DISH  + 1500W   6#        OC # QSL
09.09.2006  ICW  2004  432.105  HB9Q     0  419 519     JN47CG   560                                   # QSL
15.10.2006  ICW  0146  432.016  DL9KR    0  0   529     JO40DE   440                                   #
12.11.2006  2312-2318  432.070  OH2PO   R0  0  -16>-22  KP10XH  1280                                   #
------------------------------------------------------------------------------------------------------------
23.02.2007  1036-1050  432.030  8N1EME  R0  0  -28>-27  QM06IQ  9044  32m DISH  +  500W   7#        AS # QSL
24.02.2007  1102-1104  432.030  8N1EME  R0  0  -25>-25  QM06IQ  9044                                   # QSL
24.02.2007  1212-1214  432.077  HB9Q    R0  0  -16>-21  JN47CG   560                                   # QSL
08.09.2007  ICW  0224  432.012  KL6M     0  0   419     BP51DC  7594  9,2m DISH + 1500W   8#   AK      #
08.09.2007  1428-1434  432.063  DL7APV  R0  0  -21>-24  JO62JR   310   8x13el Y + 1000W   9#           # QSL
09.09.2007  ICW  1025  432.015  DL9KR    0  0   519     JO40DE   440                                   #
27.10.2007  ICW  0310  432.013  DL9KR   559 559         JO40DE   440                          +MP3     #
27.10.2007  1820-1824  432.077  HB9Q    R0  0  -17>-20  JN47CG   560                                   # QSL
27.10.2007  1908-1912  432.076  OH2PO   R0  0  -20>     KP10XH  1280                                   #
27.10.2007  2039-2043  432.060  PA3CSG  R0  0  -24>-22  JO21WD   617   8m DISH  + 1000W  10#           #
27.10.2007  ICW  2110  432.061  PA3CSG   M  0           JO21WD   617                                   #
28.10.2007  1858-1902  432.063  DL7APV  R0  0  -22>-24  JO62JR   310                                   # QSL
28.10.2007  ICW  2203  432.010  OH2PO    0  0           KP10XH  1280                                   #
25.11.2007  0621-0625  432.063  KE2N    R0  0  -24>-26  FM18EW  6952  16x28el Y + 1000W  11#   VA      #
01.12.2007  0932-0938  432.058  G4RGK   R0  0  -26>-26  IO91ON  1084   8x27el Y + 1000W  12#           # QSL
15.12.2007  1525-1529  432.060  I1NDP   R0  0  -26>-26  JN54AL   707  16x26el Y + 1200W  13#           # QSL
23.12.2007  ICW  1737  432.030  OZ4MM    0  0           JO55GH   633   10m DISH +  650W  14#           # QSL
23.12.2007  ICW  1751  432.030  DF3RU    M  0           JN59UL   211 16x8.5WL Y + 1500W  15#           # QSL
------------------------------------------------------------------------------------------------------------
17.01.2008  ICW  2114  432.059  I1NDP    0  0   419     JN45AL   707                                   # QSL
18.01.2008  SSB  1459  432.077  HB9Q    41  31  7dB/N   JN47CG   560                                   # QSL QSX 432110
09.02.2008  1615-1623  432.064  DL7APV  R0  O  -25>-24  JO62JR   310                                   # QSL
15.03.2008  1608-1612  432.077  HB9Q    R0  0  -18>-19  JN47CG   560                                   # QSL
15.03.2008  ICW  1624  432.077  HB9Q     0  0           JN47CG   560                                   #
10.04.2008  ICW  2031  432.030  G3LTF    0  M   7dB/N   IO91GG  1130   6m DISH  + 1500W  16#           # QSL
11.04.2008  1902-1908  432.065  GW3XYW  R0  0  -24>-25  IO71XR  1309 6,7m DISH  +  400W  17#           # QSL
13.04.2008  1322-1326  432.070  JA6AHB  R0  0  -22>-23  PM53CP  8791   7m DISH  +  500W  18#           # QSL
04.06.2008  1740-1746  432.045  K2UYH   R0  0  -19>-??  FN20QG  6663                                   # QSL
04.06.2008  1830-1834  432.048  OE9ERC  R0  0  -22>-18  JN47VL   453   8m DISH  + 2000W  19#           #
04.06.2008  ICW  1851  432.048  OE9ERC   0  0   429     JN47VL   453                                   #
23.07.2008  ICW  0042  432.030  UA3PTW   M  0   419     KO93BS  1668  24x15el Y + 1000W  20#           # QSL
25.07.2008  0210-0218  432.075  LZ1DX   R0  0  -26>-30  KN22TK  1212   6x15el Y + 2000W  21#           # QSL
17.10.2008  ICW  2241  432.040  PI9CAM   0 RO   429     JO32ET   635  25m DISH  +  300W  22#           # QSL
13.11.2008  2110-2114  432.060  I1NDP   R0  0  -18>-22  JN45AL   706                                   # QSL
13.11.2008  2136-2140  432.074  UA3PTW  R0  0  -22>-22  KO93BS  1667                                   # QSL
14.11.2008  2204-2206  432.074  PI9CAM  R0  0  -13>-14  JO32ET   634                                   # QSL
17.11.2008  2204-2212  432.055  G4YTL   R0  0  -26>-25  IO92MB  1099   6x32el Y + 1000W  23#           # QSL
07.12.2008  2053-2103  432.063  WA4NJP  R0  0  -25>-24  EM84DG  7703   11m DISH +  250W  24#   GA      # QSL
08.12.2008  ICW  2354  432.057  WA4NJP   M  0   4dB/N   EM84DG  7703   11m DISH +  300W                # QSL
09.12.2008  ICW  2316  432.030  K1RQG    0  0   7dB/N   FN54ON  5989   10m DISH + 1250W  25#   ME      #
------------------------------------------------------------------------------------------------------------
03.01.2009  ICW  1736  432.065  DL7APV   M  M   419     JO62JR   310  16x13wl Y + 1500W                # QSL
11.01.2009  ICW  0254  432.030  K2UYH    M  M   319     FN20QG  6663  8,7m DISH + 1000W                # QSL
12.01.2009  2108-2116  432.042  F2TU     0  0  -22>-22  JN38LG   585  7,8m DISH + 1000W  26#           # QSL
06.03.2009  ICW  2203  432.057  UA3PTW   O  O   6dB/N   KO93BS  1667                                   # QSL
28.03.2009  1554-1606  432.090  DK3WG   R0  0  -23>-27  JO72GI   246   6x14el Y + 1000W  27#           # QSL
29.05.2009  1300-1323  432.092  FR5DN   R0  0  -23>-26  LG78QS  8873   8x21el Y + 1000W  28#           # QSL
25.07.2009  1013-1021  432.060  ZS6WAB  R0  0  -22>-29  KG46RC  8334    5m DISH +  600W  29#           # QSL
10.08.2009  0228-0231  432.070  OH2DG   R0  0  -23>-27  KP30CK  1363    8m DISH + 1000W  30#           # QSL
13.09.2009  1314-1318  432.069  K7XQ    R0  0  -28>-29  CM97QI  9365   8x24el Y + 1000W  31#   CA      # QSL
15.09.2009  1358-1404  432.069  ES5PC   R0  0  -22>-24  KO38HJ  1210   4x28el M2+ 1000W  32#           # QSL
10.10.2009  0110-0014  432.080  HB9Q    R0  0  -13>-17  JN47CG   560  ARRL EME CONTEST 2009 - 1st LEG
10.10.2009  ICW  0042  432.015  DL9KR    0  0   519     JO40DE   440
31.10.2009  1852-1906  432.068  SM2A    R0  0  -27>-29  KP04NP  1662   4x32el Y + 1000W  33#           # QSL
05.11.2009  2106-2112  432.066  DL5FN   R0  0  -23>-26  JO40FB   429   8x28el Y + 1000W  34#           # QSL
08.11.2009  2348-2352  432.067  UA4AQL  R0  0  -27>-32  LO20QB  2196   2x26el Y +  700W  35#
28.11.2009  ICW  2001  432.022  SM4IVE   0  0   519     JO79SD  1004   13m DISH + 1000W  36#
29.11.2009  0155-0159  432.066  K3MF    R0  0  -23>-31  FM19XP  6799   8x25el Y + 1250W  37#   MD      # QSL
29.11.2009  1824-1826  432.065  UT6UG   R0  0  -24>-29  KO50EI  1134   4x39el Y +  500W  38#           #
03.12.2009  1915-1930  432.053  OK2POI   0 R0  -29>-23  JN99BL   274   4x17el Y +  400W  39#
03.12.2009  1946-1950  432.080  DL2NUD  R0  0  -21>-28  JO63MF   357   4x38el Y + 1200W  40#           #
04.12.2009  ICW  0440  432.059  NC1I     0  0  429>449  FN32OB  6416  48x15el Y + 1500W  41#   MA      # QSL
05.12.2009  ICW  0122  432.011  SM4IVE   0  0  419      JO79SD  1004  ARRL EME CONTEST 2009 - 2nd LEG
05.12.2009  2200-2204  432.063  DL7APV  R0  0  -20>?    JO62JR   310
05.12.2009  2240-2244  432.074  LZ1DX    0  0  -24>?    KN22TK  1212
26.12.2009  2334-2341  432.064  DF3RU    0  0  -20>?    JN59UL   211
------------------------------------------------------------------------------------------------------------
03.01.2010  ICW  0450  432.030  K0RZ     0  M  429      DM79JX  8423   8x22el Y + 1500W  42#   CO
25.01.2010  0001-0005  432.076  W7MEM    0 R0  -28>-26  DN17NT  8198  16x15elvY + 1000W  43#   ID        QSL
21.02.2010  1809-1813  432.055  NC1I     0 R0  -21>-16  FN32OB  6416                                     QSL
21.02.2010  1942-1948  432.067  W7AMI    0 R0  -27>-28  DN13VO  8577   4x33el Y +  800W  44#
26.02.2010  ICW  2159  432.030  SM2CEW   M  0  419      KP15CR  1792  8,4m DISH + 1500W  45#
19.03.2010  ICW  1900  432.045  KP4AO   599 579         FK68OI  7848  305m DISH +  500W  46# +MP3        QSL
21.03.2010  1913-1921  432.077  IK6EIW   0 R0  -28>-27  JN63RJ   754   4x26el Y +  400W  47#
22.03.2010  SSB  2257  432.044  KP4AO   56  55          FK68OI  7848                         +MP3        QSL QSX 432105
27.03.2010  2054-2058  432.085  S53RM    0 R0  -25>-26  JN76JC   450   8x26el Y +  800W  48#
16.04.2010  1721-1725  432.090  K5QE     0 R0  -23>-23  EM31CJ  8561  16x28el Y + 1500W  49#   TX
19.05.2010  ICW  1836  432.025  LX1DB    0  0  419      JN39CO   596 11,0m DISH + 1500W  50#
10.10.2010  1230-1238  432.087  PA3DZL  R0  0  -24>-26  JO21HM   709   4x38el Y + 1000W  51#             QSL
16.10.2010  1758-1800  432.078  PY1KK   R0  0  -28>-29  GG76QS  9989  4,0m DISH +  800W  52##  WAC!  SA
22.10.2010  1954-1958  432.080  ES6RQ   R0  0  -27>-27  KO28WA  1149  4,5m DISH +  950W  53#
23.10.2010  0058-0106  432.070  WA3QPX  R0  0  -26>-27  FM29DJ  6797   8x28el M2+ 1000W  54#   DE
23.10.2010  1810-1812  432.070  VK4EME  R0  0  -29>-18  QG63KQ 15606  16x15el Y +  100W  55#
25.10.2010  2048-2054  432.090  OZ6OL   R0  0  -25>-20  JO65DJ   602  5,0m DISH +  800W  56#
25.10.2010  2140-2146  432.091  F6FHP   R0  0  -27>-27  IN94TR  1268   4x8WL  Y +  800W  57#
26.10.2010  2124-2216  432.091  EA3XU   R0  0  -27>-28  JN11CK  1355   2x21el Y +  800W  58#             QSL
27.10.2010  2316-2318  432.090  DF3RL   R0  0  -27>-28  JN59WL   200   8x21el Y + 1000W  59#             QSL
30.10.2010  0526-0530  432.063  DL7APV  R0  0  -17>     JO62QL   270  ARRL EME CONTEST 2010 - 2nd LEG
30.10.2010  0540-0546  432.059  ES6RQ   R0  0  -26>     KO28WA  1149
30.10.2010  0618-0620  432.067  K1JT    R0  0  -21>     FN20QG  6663  8,7m DISH + 1000W
31.10.2010  0132-0136  432.090  EA3XU   R0  0  -28>     JN11CK  1355
31.10.2010  ICW  0925  432.014  OH2PO    0  0  519      KP10XH  1280
19.12.2010  0124-0126  432.090  EB5EEO  R0  0  -29>-27  IM98PG  1785   8x28el Y + 1000W  60#
------------------------------------------------------------------------------------------------------------
16.01.2011  1630-1746  432.090  SV3AAF  R0  0  -24>-27  KM17KO  1547   4x11wl Y + 1500W  61#
25.01.2011  0000-0017  432.090  VK4CDI  R0  0  -27>-28  QG52XH 15657   4x22el Y +  400W  62#
19.02.2011  ICW  2330  432.090  LZ1DX    0  0+339       KN22TK  1212  16x15el Y + 2000W                  QSL
19.02.2011  2339-2344  432.055  PA3DZL  R0  0  -20>-24  JO21HM   709________________________________________
11.03.2011  2033-2035  432.090  NR5M    R0  0  -23>-26  EM10WD  8808   8x20el Y + 1000W  63#    +2dB NEW LNA
11.03.2011  2045-2047  432.086  G4FUF   R0  0  -26>-24  JO01GN   992   4x39el Y +  130W  64#
11.03.2011  2126-2128  432.086  S51ZO   R0  0  -27>-26  JN86DR   403   8x33el BV+  600W  65#
13.03.2011  2031-2033  432.075  VA3GMT  R0  0  -23>-25  FN03IV  6679   4x20el M2+ 1000W  66#
09.04.2011  1917-1919  432.088  K6MYC   R0  0  -21>-28  DM07DB  9357   8x12el M2+ 1200W  67#
13.04.2011  2330-2347  432.089  VE6TA   R0  0  -22>-19  DO33GS  7507  5,5m DISH + 1000W  68#
31.08.2011  1644-1650  432.091  EA5CJ   R0  0  -25>-28  IM99TL  1662   4x39el M2+ 1500W  69#
10.09.2011  2339-2341  432.091  PY2BS   R0  0  -28>-29  GG66PJ 10142  4,6m DISH +  650W  70#
07.10.2011  2355-2359  432.088  W7IUV   R0  0  -28>-25  DN07DG  8355  4,3m DISH +  500W  71#   WA
23.10.2011  0919-0922  432.090  UA3PTW  R0  0  -23>     KO93BS  1667
23.10.2011  ICW  1018  432.015  SM4IVE  R0  0  429      JO79SD  1004                         +MP3
23.10.2011  1052-1054  432.062  DL7APV  R0  0  -17>-19  JO62JR   310
27.10.2011  ICW  1449  432.025  K5GW     M R0  419      EM13PA  8590   10m DISH + 1500W  72#
19.11.2011  ICW  1018  432.017  DL9KR    0 R0  539      JO40DE   440
------------------------------------------------------------------------------------------------------------
01.01.2012  2025-2028  432.099  W7IUV   R0  0  -24>-19  DN07DG  8355
01.01.2012  2151-2158  432.098  DF3RU    0 R0  -22>-22  JN59UL   211
02.01.2012  2032-2038  432.099  PA0PLY  R0  0  -25>-28  JO22IH   722   8x14el Y +  600W  73#
07.01.2012  1756-1800  432.099  RW3WR   R0  0  -27>-23  KO71IM  1431   8x18el Y +  300W  74#
10.01.2012  2100-2104  432.098  F6DRO   R0  0  -26>-22  JN03TJ  1232   4x21el Y +  800W  75#


If I recalculate my signals reports with I1NDP at http://i1ndp.altervista.org/emelog.php + INIT
I should be able to work/hear during good condx (white stations were heard/saw by me):

PE1RDP -26, UA4API -26, WA2FGK -27, YO3DDZ -24, K4EME  -23, OE5MPL -30, DL7UDA -23, TI2AEB -30,
G4EZP  -27, F6APE  -28, W2CNX  -28, YO2LAM -25, DL5BCX -25, IZ5MAO -31, EB3DYS -29, JN4VAX -33,
RK3WWF -32, RW6AG  -27, OH4LA  -29, OE3SJA -29, YU7AA  -31, ES3RF  -29, VE2ZAZ -27, SV8CS  -29,
IW4ARD -32, S54T   -27, KI0LE  -27, KA7V   -26dB

HRD on CW: SV1BTR O, DG1KJG M

decoded by others: UR5LX -28, VE2XX -26dB

http://www.pa0ply.nl/articles/70cm%20stations.pdf

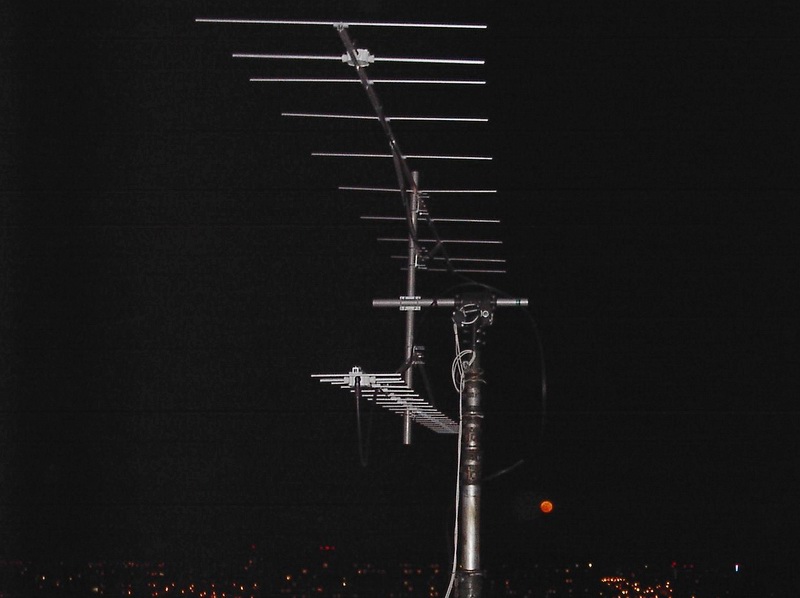

23el DK7ZB yagi - 5,7m boom, gain 17dBd, it's home made by OK2BJL - http://www.mydarc.de/dk7zb/70cm-longyagi/23-ele.htm

Assembling of the elements for a 23el DK7ZB at OK2BJL

The Radiator-Box

Measured (tnx OK1BAF) Data at DK7ZB web: http://www.qsl.net/dk7zb

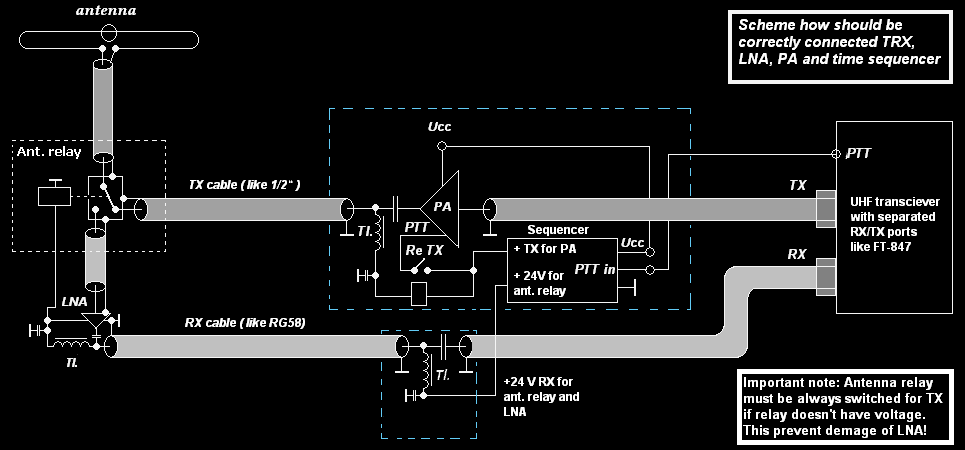

The old LNA (1990) with MGF 1502 (placed in shack, 0,45 dB NF), TNX OK1VPZ

Because of terrible QRM from CDMA "Ufon" provider we had to use cavity filter (att. about -2,5dB)..

I compared my RX with Jiri, OK2POI. He has 4x12el yagi with gain 19,5dBd, cable with the same attenuation like me (-1dB) and LNA with the Noise figure of 0,45dB. However Jiri has real RX measured with EME stations 6dB better. While the calculated difference is 19,5 - 17 = 2,5 then 6 - 2,5 = 3,5dB. As Jiri, OK2POI has his QTH in quiet mountains, my RX is killed by the local noise + QRM, digital TV an 3m radio tower just 200m far from antennas + UFON cdma provider for -3,5dB. PS: I use cavity filter only during elevation below 15degrees.

January 2010 - New band pass filter

On 15th January 2010 I got new 70cm cavity band pass filter. Measurements provides after retuning:

Old cavity B.P.F. from NMT network: transit att. of -2,0dB, return att. -18dB, selectivity ± 600 kHz / 10dB

New cavity B.P.F. (on left): transit-att. of -1,3dB, return att. -20dB, selectivity ± 100kHz/± 1dB; ±10MHz /±30dB, middle QRG 432.100 MHz

New B.P.F. provides 0,7dB better RX and allowed me QSO with W7MEM. Except big advantage of transit attenuation new cavity filter is much more stable with temperature - when we put if from 20°C warm room to -10°C balcony and then get it back (after few hours), the frequency changed just some few kHz off - the result: Compared to the old cavity B.P.F. I don't need to tune it manually.

432 MHz 1HP tube PA with GS31B (finished by OK1VPZ in 1990)

OK1VPZ 70 cm Power amplifier with GI 14 b (or GS31b, GS1, GI39 ) tube - more at http://www.ok2kkw.com/ok1vpzpa.htm

432 MHz 800W solid state PA (8x SD56120M) (finished by OK1VPZ in 2010)

More photos at http://www.ok2kkw.com/00003016/pa70cm/pa_70cm.htm

New 120W SSPA driver for GS31b PA by OK1VPZ

Some Gallery of CW EME signals

NC QSO with NC1I, Frank got me as "1TES". (Dubus CW activity contest)

Weak signal of Nando, I1NDP. (Dubus CW activity contest)

My first reception of South America on 432 MHz - LU7DZ (hrd T/M) in CW QSO with I1NDP (hrd 529)

EME
Ham Gallery

This EME Ham Gallery contains info - incl. photos, sound recordings, qsl cards etc. - about 70cm EME amateur radio stations. Most of them being worked or heard by the OK1TEH with single Yagi.

(inpirated by nice but unfortunately canceled web of SK0CC)

PS: FB gallery of EME stations from at OK1KIR's web & F1EHN

7M2PDT 'Shu' Chiba, Japan QM05EK (QRB 9147 km) 432: 16x14 el K1FO PA 1500 W *Temporary QRT* only hrd on 432 MHz EME February 2006 7M2PDT's web

9H1TX David Zurrieq ZRQ Malta JM75FU (QRB 1588 km) 432: 4x8,5WL BVO70 + ATF54143 PA 150 W	He head me on 432 MHz EME April 11 2008 Phasing line is 1/2 inch heliax .TX line 15m 7/8 not seen on photo and RX line 20m 1/2 inch.

DF3RU Karl Illschwang, Germany JN59UL (QRB 211 km) 432: 16 Yagi BV, 1000 W	1st 432 MHz EME QSO December 23 2007 1296 - 2320: 6m dish + QRO

DK3WG (ex Y22ME) Jurg Frankfurt (Oder), Germany JO72GI (QRB 789 km) 432: 16x27 el 7,7WL LY open feed PA 1 kW (GS23B), LNA ATF34143 1st 432 MHz EME QSO March 28 2009 http://www.mydarc.de/dk3wg

DL2NUD Hermann Strasen-Prieprt, Germany JO63MF (QRB 357 km) 432: 4x38 M² and 1,2 KW (GS35b)	1st 432 MHz EME QSO December 3 2009 sked possible via DL9MS
DL5FN Dieter [dl5fn@t-online.de] Florsheim, Germany JO40FB (QRB 429 km) 432: 8x28 M² and 1 KW	1st 432 MHz EME QSO November 5 2009 "I am now running new 8 x 28 el h. pol yagis (9WL from M²) with my "old" GS23B PA giving 1kW at the feed-point, a new LNA with NE334S01 (23 db gain and 0.2 dB NF) and TS870 and TR432H-Transverter (DB6NT)."

DL7APV Bernd Nordhof, Germany JO62JR (QRB 310 km) 432: 16x13WL (old 8x13WL) 9BV P-Hemt 0.28 dB TH327 800 W http://www.mydarc.de/dl7apv	1st 432 MHz EME QSO September 8 2007 Bernd and Bodo DL7AFB in front of DL7APV's old 8x13wl Monster Ant. (source). The crashed antenna on picture isn't 8x13wl. This was a brand new 16x7,7wl vertical group. This antenna never made a qso. The old 8x13wl is now at PA3CMCs QTH.

DL9KR Jan Niederhausen, Germany JO40DE (QRB 441 km) 432: 16x24 el KR 8.1 Lambda Open wire feeder NE324 cavity preamp NF 0.19 TH331 cavity PA	1st 432 MHz EME QSO November 13 2005 Photos of DL9KR antenna.

EA3DXU(silent key..) Josep Santa Perpetua de Mogoda, Spain JN11CM (QRB 1348 km) 432: 2x38 el M2 850 W	only hrd on 432 MHz EME 2007

EA3XU Benjamin Barcelona, Spain JN11CK (QRB 1355 km) 432: 2x21el yagi + 800W PA (in JT65)	1st 432 MHz EME QSO October 26 2010 http://ea3xu.ure.es

EA5CJ Jacinto Valencia, Spain KO38HJ (QRB 1210 km) 432: 4x39el M2, GS35PA 1500W?	1st 432 MHz EME QSO August 31 2011
EB5EEO Vicente El Chealicante. Spain IM98PG (QRB 1785 km) 144 MHz: TS2000 + 1kW PA 4CX1500B + LNA 0,8dB NF + 4x16el XP 432 MHz : FT-736R + 1kW PA 4CX400R + LNA 0,8dB NF + 8x28el Y	1st 432 MHz EME QSO December 19 2010 http://www.qsl.net/eb5eeo

ES5PC Viljo Tartumaa, Estonia KO38HJ (QRB 1210 km) 144: 4x17el M2, QRO 432: 4x9wl M2, GS23B PA 1000W	1st 432 MHz EME QSO September 19 2010 http://www.comnetsys.eu/files/ES5PC/EME

ES6RQ (ex UR2RQ) Ants Ritsu, Estonia KO28WA (QRB 1149 km) 144: 8x17el Y, 1500W 432: 4,5m DISH + GS35 PA 950W in JT + ATF54143 + feed from ES5PC	1st 432 MHz EME QSO October 22 2010 http://www.es6rq.com/en

F2TU Philippe Saint Die, France JN38LG (QRB 585 km) 432: 7.8 m dish, F/D 0.51, hp or lp 4CX250R Push pull 1 kW NEC750 0.4 dB TS790 http://pagesperso-orange.fr/f2tu 1st 432 MHz EME QSO January 12 2009

F6DRO Dom Montesquieu Lauragais, France JN03TJ (QRB 1232 km) 432: 4x21el F9FT + 800W PA	1st 432 MHz EME QSO January 10 2012
F6FHP Joel Langoiran, France IN94TR (QRB 1268 km) 432: 4x8wl yagi + 800W PA	1st 432 MHz EME QSO October 25 2010 Worked before on 70cm Meteor Scatter :)

FR5DN Phil Ales Avirons, Reunion Island LG78QS (QRB 8873 km) 432: 8x21el F9FT 23,5dBd 0,4dB NF LNA + QRO PA	1st 432 MHZ EME QSO May 29 2009 http://www.astrorun.com/~fr5dn Email: fr5dn<AT>izi.re Array was destroyed by wind in 2010..

G3LTF Peter Andover, Hants, U.K. IO91GG (QRB 1130 km) 432: 6 m Dish 0.4 f/d 700 W K2RIW FHX34LG 0.4 dB Transverter-Transceiver, All HB	1st 432 MHz EME QSO April 10 2008

G4FUF Keith Benfleet, Essex, U.K. JO01GN (QRB 992 km) 432: 4x39el H Pol. 130 W	1st 432 MHz EME QSO March 11 2011

G4RGK David DIBLEY HIGH WYCOMBE, BUCKS, U.K. IO91ON (QRB 1084 km) 432: 8x27el H Pol. 1000 W	1st 432 MHz EME QSO December 1 2007 http://www.zen70432.zen.co.uk/EME/EME_Array1.html

G4YTL David Buckingham, U.K. IO92MB (QRB 1425 km) 432: 6x11wl DJ9BV TS2000, 2x3CX800 1000 W	1st 432 MHz EME QSO November 17 2008 Email: David.Hilton-Jones<at>clneuro.ox.ac.uk

GW3XYW Stuart Pontarduais NR Swansea W GLAM S WALES SA4 1HU IO71XR (QRB 1302 km) 432: 6,7m DISH + 1000 W	1st 432 MHz EME QSO April 11 2008

HB9Q Club Station www.hb9q.ch Menziken, Switzerland JN47CG (QRB 560 km) 432: 15.3 m dish + 2kW PA	1st 432 MHz EME QSO May 14 2005 -> EME echo on 23cm at HB9Q

I1NDP Nando Magnano, Italy JN45AL (QRB 707 km) 432: LNA : 0.4 db NF (Khune) Transverter: Khune TR432 (20w) Transceiver FT1000 mark-5	1st 432 MHz EME QSO December 15 2007 ANT: 16x26el DJ9BV PA driver: GI7B PA: GS35B 1.2 kW I1NDP Home Page

IK6EIW Stefano Montefano, Italy JN63RJ (QRB 754 km) 432: 4x26el HB BV yagies +500W PA (400W in JT65) + 0,5dB NF LNA	1st 432 MHz EME QSO March 21 2010 Email: asmag<AT>libero.it

JA6AHB Toshio Fukuoka-city, Japan PM53CP (QRB 8791 km) 432: RX:FHX35LG+3SK97 (DL9KR type LNA) + TS2000sx TX:TS2000sx+3CX800A7x2 1kW at feed	1st 432 MHz EME QSO April 13 2008 ANT: 7m dish (f/d=0.5), AZ-EL mount, dual dipole feed, switcable polarization, 1/2048 resolution, automatic Moon-tracking JA6AHB Home Page

K0RZ Bill Boulder CO, USA DM79JX (QRB 8423 km) 432: Ant: 8x22e K1FO + 0,2dB NF LNA Pwr: 1500W (EIMAC 8938)	1st 432 MHz EME QSO January 03 2010 Email: wmccaa<at>comcast.net
Initially licensed in 1954 with a General class call of W3ZBE while living in Eastern Pennsylvania, then in 1959 with a Extra class call of K0RZJ while living in Kansas City Missouri, then in 1977 with the present call K0RZ while living in Boulder, Colorado. My Father who was my Elmer became a silent key in 1978, and held the calls of W3LCL and K0RZH. My Brother initially licensed as K3ALM now holds the call K0RZI. The photo shows the K0RZ 432 EME antenna composed of 8 each K1FO 22 element Yagis. Each box of four Yagis can be manually rotated to either horizontal or vertical polarization in a few hours. The array is presently set for vertical polarization. The aluminum box in the center of the horizontal boom houses the Tx/Rx relays and the 0.3 NF preamp. Transmit power is 1500 Watts from an Eimac 8938. This system has been in use since 1991. CW is the preferred mode of operation. 73 Bill, K0RZ
K1FO Steve Madison, Connecticut, USA FN31QJ (QRB 6454 km) Steve wrote: The equipment here is 24x15 el Yagis, rear mounted with polarity rotation. Open wire & LDF4-50 phasing lines. On TX power is 1500 watts at the array. RX is a FHX-35LG HEMT to a MGF-1412, with lots of filtering after the 1st PA. Total system temperature is ~ 72K with the RX nF portion approximately .27 dB. Steve, K1FO has a company manufacturing RF power amps for EME Lunar-Link History of K1FO antenna. *Temporary QRT*	Heard in November 2006 432 MHz
K1RQG (silent key..) Joe Bucksport ME, USA FN54ON (QRB 5989 km) 432: Ant: 10m DISH (32 foot) Pwr: 800W (of 1250W) at feed	1st 432 MHz EME QSO December 09 2008 http://www.brielle-nj.com/rqg/k1rqg.html http://www.qsl.net/k1rqg/

KE2N Ken Haymarket VA, USA FM18EW (QRB 6852 km) 432: Ant: 16x23el M2 9WL Yagi Pwr: 800W	1st 432 MHz EME QSO November 25 2007

K2UYH Allen Trenton NJ, USA FN20OF (QRB 6676 km) 432: 8.7m dish, 1000 W (QRV) 1296: 8.7m dish, 400 W (QRV) 2304: 8.7m dish, 30w W (QRV) 432 & Above EME Newsletters	1st 432 MHz EME QSO June 17 2005

K3MF Wayde Port Deposit MD, USA FM19XP (QRB 6799 km) 432: Ant: 8x25el K1FO Pwr: 1250W	1st 432 MHz EME QSO November 29 2009 "I have been licensed since 1974 as WN3WMG then WA3WMG. In 1998 I changed to a vanity call K3MF. I am active on 432 MHz. EME using a Kenwood TS-2000x, a LZ2US amplifier producing about 1200 watts output to 8 x 25 K1FO yagis. My az/el control is a W2DRZ system with a homebrew az/el system. The az motor/gearbox is a 90 vdc motor running at 18 vdc for a slow and smooth rotation and the elevation motor( another 90 vdc motor) drives a modified jack screw that was once a truck jack. I use two preamps, one at the antenna and the other one at the rig. I am active on CW and JT65 modes and can take skeds as time allows."

K5GW Gerald Plano, TX, USA EM13PA (QRB 8590 km) 432: 10m dish 0,47 f/d + 1500W PA	1st 432 MHz EME QSO October 27 2011 (pictures were used from K2UYH's NL)

K5QE Marshall Hemphill, TX, USA EM31CJ (QRB 8561 km) 432: It is 5.1M square. The antennas are 28el M2 and are 8.5M long. It is 16 x 28el M2. All H Pol PA 1500W PA - GS35B	1st 432 MHz EME QSO April 16 2010 web: http://www.k5qe.com

K6MYC Mike Friant CA, USA DM07DB (QRB 9357 km) 432: Ant: 8x12el K1FO hpol 23.2 dBd Pwr: 1,2kW PA	1st 432 MHz EME QSO April 9 2011 k6myc<at>m2inc.com
2 pioneers from left W6DNG and K6MYC - the West Coast VHF Conference 1967
K7XQ Jeff Atwater CA, USA CM97QI (QRB 9365 km) 432: Ant: 8x24el 7WL Xpol 26dBd Pwr: single GS35B 1kW in JT65	1st 432 MHz EME QSO September 13 2009 Web: www.elite.net/~k7xq

KL6M Mike (ex. AL7OB) Anchorage, AK, USA BP51DC (QRB 7594 km) 432: 9.2 m dish, LNA 0.2 dB KA0RYT PA 1500W PA - GS35B http://www.qsl.net/kl6m 1st 432 MHz EME QSO September 8 2007
KP4AO ARECIBO OBSERVATORY NAIC/NSF Cornell University FK68OI (QRB 7848km) 432: 305m dish (56dBd) 50W TS2000	1st 432 MHz EME QSO March 19 2010 web: http:www.naic.edu/~angel/kp4ao

LU7DZ (silent key..) Eduardo Cordoba, Argentina FF78RA (QRB 11 950 km) 432: 8x22el K1FO PA 1500 W	1st time heard on 432 MHz November 30 2009 email: lu7dz@yahoo.com.ar web: http://www.lu7dz.com.ar

LZ1DX Ned Stara Zagore, Bulgaria KN22TK (QRB 1212 km) 432: 6x15el YAGIS, LNA 0,35dB NF PA 2000 W	1st 432 MHz EME QSO July 25 2008 new antenna - February 2011 16x15el Y

NC1I Frank Southwick Ma, USA FN32OB (QRB 6416 km) 432: 48x15 el yagi + QRO	1st 432 MHz EME QSO December 04 2009 http://www.qsl.net/kl6m/NewEngland/Bos4/NC1I.html

NR5M George Huston TX, USA EM10WD (QRB 8808 km) 432: 8x20el 15wl M2 yagi 1000W	1st 432 MHz EME QSO March 11 2011 www.nr5m.com/main/page_station_tour__70_cm.html

N9AB Andrew Mundelein IL, USA EN52XG (QRB 7314 km) 432: 16x22 el yagi IC-970A + 2-3X800 cavities	1st 432 MHz EME QSO June 11 2005 *QRT in 2008, antenna was sold.*

OE9ERC Erich Wolfurt, Austria JN47VL (QRB 453 km) 432: 8m DISH + 3kW PA	1st 432 MHz EME QSO June 04 2008 http://www.oe9erc.com *Now QRV only on 23cm & up*

OH2DG Eino Loviisa, Finland KP30CK (QRB 1363 km) 432: 8m DISH + GS23b 1kW RX: FT736 + PHEMT LNA Feed: ROTATABLE DUAL DIPOLE	1st 432 MHz EME QSO August 10 2009 http://www.nitehawk.com/rasmit/oh2dg.html Email: eino.metsamaki<at>sulo.fi Other bands: 23cm 300W, 13cm 100W, +9cm 100W

OH2PO Matti Talvia, Finland KP10XH (QRB 1280 km) 432: 16m DISH + 1kW History First attempts were made in 1986 with very few qsos. The system has been under constant improvement ever since, and the current configuration is from 1997. The results in the ARRL EME contest have been around 150 qsos on 432 MHz. Antenna Paraboloid 16meters (55feet), f = 0,6. The mesh is normal chicken wire with 1" square ant the surface in accurate enough even on 1,2G. Look for the feed in QST, March - 88 p.12.	1st 432 MHz EME QSO November 12 2005
Feed Normal 2-d. In the picture on the right side you will see the white box containing the relays and preamps. This designs have been in use concerning the preamp, and the normal system in use is MGF-1300 series device in cavity construction. Nf around 0,4dB. The whole feed system can be rotated between 0 to 90 degrees. It takes about 40 seconds, so there is possible room for improvement! Aiming The whole antenna turns on concrete turnable 0 to 360 degrees. Elevation is limited to +58 degrees, since that is enough in our northern latitude. TX - N7ART - made with two 3CX800A7. Output about 1kW. Feedline is 22 meters 7/8" Andrew. Control - VK3UM system with optical encoders. Resolution 0,1 degrees. System G: Cassiopeia noise > 6dB4
OK2POI Jiri Zubri, Czech Repuplic JN99BL (QRB 274 km) 432: 4x17el OK2POE + 600W	1st 432 MHz EME QSO December 3 2009 http://www.ok2kjt.net/ok2poi/eme%20log.htm

OZ4MM Stig Tarup, Denmark JO55GH (QRB 633 km) Parabol 10 m Feeds for 144, 432, 1296 and 2304 MHz 432: MGF1302 + CF300 (DL9KR design) 2*4CX250R, 650 W in feed 1296: TH308 (water cooled) 1st 432 MHz EME QSO December 23 2007

OZ6OL Hans Stroeby, Denmark JO65DJ (QRB 602 km) Parabol 10 m Feeds for 144, 432, 1296 and 2304 MHz 432: 5m dish + 0,4dB NF LNA + 800W	1st 432 MHz EME QSO October 25 2010

PA0PLY Jan Hoofdorp, Netherlands JO21IH (QRB 700 km) 432: 8x 14el 4.2 wl DL6WU-modified yagies 23dBd + DB6NT LNA (Micomm) 0.35dB NF + 1kW GS35B PA + TS2000X	1st 432 MHz EME QSO January 2 2012 http://www.pa0ply.nl http://www.pa0ply.nl/eme.htm

PA3CSG Geert Thorn, Netherlands JO21WD (QRB 617 km) 8,5 m dish with dual dipole feeds for 144 & 432 MHz and a W2IMU horn for 1296 MHz http://www.pa3csg.hoeplakee.nl 1st 432 MHz EME QSO October 27 2007

PA3DZL Jac Sint Willebrord, Netherlands JO21HM (QRB 709 km) 432: 4x38el M2 + G4DDK LNA 0,3dB PA GS23b 1kW in JT65	1st 432 MHz EME QSO October 10 2010

PI9CAM Dwingeloo radio telescop Westerveld, Netherlands JO32ET (QRB 635 km) 25 m dish with OM6AA dipole & septum feeds for 144 & 432MHz and a Septum feed for 1296 MHz	1st 432 MHz EME QSO October 17 2008 http://www.camras.nl http://www.camras.nl:8901 Email: jvmmap<at>bart.nl

PE1RDP Arno Veldhoven, Netherlands JO21QK (QRB 656 km) 432: 4x5.5WL 16 elements DK7ZB, ATF54143 0,3dB NF and SSPA Telefunken SV 5379 + VX432 transvertor + FT1000MP. I can measure about 8 dB sunnoise.	1st time heard on 432 MHz EME during March 2011 http://www.qsl.net/pe1rdp 70cm initials: http://www.qsl.net/pe1rdp/init_432.htm

PY1KK _{(PY2BS on 23cm)} Bruce Rio de Janeiro, Brazil GG76QS (QRB 9989 km) 432: 4m dish, f/d=0.42 + patch feed Rohde & Schwartz kW SSPA at 800W + 0,4dB NF LNA + IC-910H	1st 432 MHz EME QSO October 16 2010 [WAC WITH 1 YAGI IS COMPLETED]
Here's the lay-out of the relays + LNAs on the patch feeder. The feeder on this pic. is the old one, I used it as a model to find out the best layout. Missing on the picture is the third relay for TX pol selection and the second LNA. The cables , including the LMR-900 for tx will run thru the LNA support tube.
PY2BS _{(also PY1KK)} Bruce São Paulo, Brazil GG66PJ (QRB 10142 km) 432: 4,6m dish, f/d=0.37 + 650W PA 1296: 4,6m dish, f/d=0.37 + 550W PA	1st 432 MHz EME QSO September 10 2011

S51ZO Joze Murska Sobota, Slovenia JN86DR (QRB 445 km) 432: 8x33el DJ9BV + 600W	1st 432 MHz EME QSO March 11 2011 >> More pictures of antenna <<

S53RM Sine Domzale, Slovenia JN76HD (QRB 445 km) 432: 8x8,5wl DJ9BV (26el) + 800W	1st 432 MHz EME QSO March 27 2010 http://lea.hamradio.si/~s53rm

SM2A (2nd call SM2ILF) Stefan, Skelleftea , Sweden KP04NP (QRB 1662 km) 432: IC910H+GS35B PA 1kW P-HEMT 0,4dB NF LNA 4x32el YAGI	1st 432 MHz EME QSO October 31 2009 www.panoramio.com/user/1635829

SM2CEW Peter, Lulea, Sweden KP15CR (QRB 1792 km) 432: IC 701 + MMT28/432 transverter TH338 driver to YL1050 1.5kW 8,4m DISH	1st 432 MHz EME QSO February 27 2010 http://www.sm2cew.com PHEMT cavity preamp NF< 0.4db, 28' dish with dual dipole feed, horizontal and vertical polarization

SM3AKW _(SD3F) Carl, Harnon, Sweden JP92AO (QRB 1404 km) 432: 8x15el Y + QRO only hrd on 432 MHz EME 27th July 2008
SM4IVE Lars Odensbacken, Sweden JO79SD (QRB 1004 km) 432: 13m dish + QRO	1st 432 MHz EME QSO November 28 2009 http://www.sm4ive.com

SV1BTR Jimmy Nafplio, Greece KM17KO (QRB 1547 km) 432: 6,1m dish + QRO	1st time heard on 432 MHz EME in November 2011

SV3AAF Petros Nafplio, Greece KM17KO (QRB 1547 km) 432: 4x11WL XP + GS23 PA 0,4dB NF LNA	1st 432 MHz EME QSO January 25 2011

SV8CS Spiros Zakynthos island, Greece KM07JS (QRB 1465 km) 432: 4x25el I0JXX + 500W PA in JT65	Saw on ? Web: http://sv8cs.blogspot.com

UA3PTW Dmitrij Tulskaya, Russia KO93BS (QRB 1668 km) 432: 32x15el DJ9BV yagi + 1kW PA Old: 16 and 24x15el CEW + GI7BT This my new QTH and ant 24x15el BV sun noise 16.5dB (flux 65) grnd 6.5 dB I received me echo with only 22W in feed -1.2db tx line.	1st 432 MHz EME QSO July 23 2008 (Note: worked also on 70cm via Aurora in year 2003 -> log + MP3.)

UA4API Victor Kamyshin, Russia LO20QC (QRB 2195 km) 432: 4x32el YAGI + 500W	Saw -26dB but NC March 30 2009 201000 2 -26 2.0 -646 3 * CQ UA4API LO20

UA4AQL Al Kamyshin, Russia LO20QB (QRB 2197 km) 432: 2x26el YAGI + 700W at feed	1st 432 MHz EME QSO November 8 2009

UT6UG Val Kyiv, Ukraine KO50EI (QRB 1134 km) 432: 4x39el yagi + 500W	1st 432 MHz EME QSO November 29 2009
VA3GMT(ex YO2LIY) Felix Markham ON, Canada FN03IV (QRB 6679 km) 432: kW amplifier, based on GS31b and YU1AW design, 4 x 20el Yagi hpol array on a Yaesu G5500 AzEl rotator. Interface to computer LVB tracker. All home brew.	1st 432 MHz EME QSO March 13 2011
VE2XX Stuart St Lazare QC, Canada FN25WK (QRB 6257 km) 432: 8x22el K1FO + 1500W 8938 PA	1st 432 MHz RX test in December 2011

VE6TA Grant Edmonton AB, Canada DO33GS (QRB 7507 km) 432: 5.5 m dish 3 F/D + 1kW GS-23b PA	1st 432 MHz EME QSO April 13 2011

VK3UM Doug Glenburn, Australia QF22RO (QRB 15913 km) 432: 10 Metre Dish, 0.43 F/D Dual dipole Feed, 7/8" Heliax 0.5 degr. resolution Weight 2.4 Tons	1st 432 MHz EME QSO March 25 2006 "The male Koala spent 12 hours on Saturday in the VK3UM dish during the construction phase much to delight of the district. There are native wild Koalas in the area but this was first one observed during day light hours on out property."

VK4CDI Phil Derling Heights, USA QG52XH (QRB 15657 km) 432: 4x22el K1FO + 2xGI7B PA 400W + ATF21186 preamp 0.8dB NF	1st 432 MHz EME QSO January 25 2011 http://www.usq.edu.au/users/moat/VK4CDI.htm

VK4EME Allan Pomona, Australia QG63KQ (QRB 15606 km) 432: 16x 15el (4wl) DL6WU 24dBD + 100W 1x4CX250B PA + FHX35 (0.38dB when last measured)	1st 432 MHz EME QSO October 23 2010 vk4eme<at>wia.org.au

W7AMI (ex KJ7F) Terry Boise, Idaho, USA DN13VO (QRB 8577 km) 432: 4x33el K1FO, 800 W (in JT65) http://myweb.cableone.net/kj7f/ 1st 432 MHz EME QSO February 21 2010
W7IUV Larry Quincy WA, USA DN07DG (QRB 8355 km) 432: 4,3m DISH (14f), 0,2dB NF H.M. LNA 500W at loop feed	1st 432 MHz EME QSO October 07 2011

W7MEM Mark Rothdrum ID, USA DN17NT (QRB 8198 km) 432: 16 X 15 K1FO antennas Vertical, Amp is Lunar Link 1kw + FT847	1st 432 MHz EME QSO January 25 2010

WA3QPX Paul Townsend DE, USA FN29DJ (QRB 6797 km) 432: 4x28el 9WL M2 + 1000W	1st 432 MHz EME QSO October 23 2010 wa3qpx<at>atlanticbb.net

WA4NJP Ray Gillsville GA, USA EM84DG (QRB 7703 km) 432: 11m DISH + 250W	1st 432 MHz EME QSO December 7 2008 http://www.setileague.org/photos/wa4njp.htm

YO2LAM Bata Timisoara, Romania KN05PS (QRB 705 km) 432: 4x21el F9FT + 1000W 1296: 4X55el F9FT + 200W	1st time heard on 432 MHz EME January 12 2012

ZS6WAB Willem Pietersburg, Rep. of South Africa KG46RC (QRB 8334 km) 432: 16x12el Y (or 5m dish) + 600W	1st 432 MHz EME QSO July 25 2009

-> EME echo on 23cm at HB9Q
