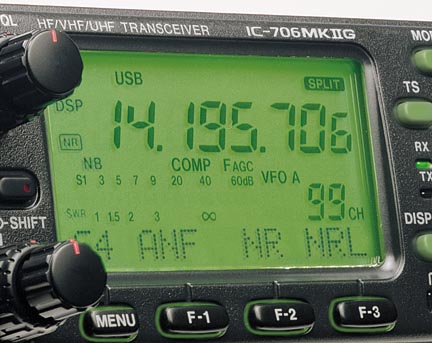

SPECIFICATIONS
GENERAL
- Frequency Coverage:
-
- Receive
- 0.030 - 199.999 MHz*, 400 - 470 MHz*
-
- Transmit
- 1.8 - 1.999 MHz*
- 3.5 - 3.999 MHz*
- 7.0 - 7.300 MHz*
- 10.1 - 10.150 MHz
- 14.0 - 14.350 MHz
- 18.068 - 18.168 MHz
- 21.0 - 21.450 MHz
- 24.89 - 24.990 MHz
- 28.0 - 29.700 MHz
- 50.0 - 54.000 MHz*
- 144.0 - 148.000 MHz*
- 430.0 - 450.000 MHz*
- * Varies according to version
- Mode: USB, LSB, CW, RTTY (FSK), AM, FM, WFM (Rx only)
- Number of memory channels. : 107 (99 regular, 6 scan edges, 2 call
channels)
- Antenna connector : SO-239x2 (for HF/50 MHz and 144/430 MHz)/50Ohm
- Power supply requirement: 13.8 V ± 15% (negative ground)
- Frequency stability: Less than ± 7ppm from 1 min. to 60 min. after
power ON. After that rate of stability less than ± 1 ppm/hr. at +25 °C
(+77°F). Temperature fluctuations 0°C to +50°C
(+32°F to +122°F) less than ±5 ppm.
- Current drain: Transmit max. power 20 A; Receive standby 1.8 A, max.
audio 2.0 A
- Usable temperature range : -10°C to 60°C (14°F
to140°F)
- Dimensions (projections not included):
- 167(W) X 58(H) X 200(D) mm
- 6-9/16(W) X 2-9/32(H) X 7-7/8(D) in
- Weight: 2.45 kg (5 lb 6 oz)
- CI-V connector: 2 conductor, 3.5 (d) mm (1/8")
- ACC connector: 13 pin
Transmitter
- Output power:
|
SSB/CW/RTTY/FM |
AM |
HF/50 MHz |
5 - 100 W |
2 - 40 W |
144 MHz |
2.5 - 50 W |
2 - 20 W |
440 MHz |
2 - 20 W |
2 - 8 W |
- Modulation system
SSB |
Balanced modulation |
AM |
Low level modulation |
FM |
Variable reactance modulation |
- Spurious emissions: Less than -60 dB (below 47.5 MHz: -50dB; 47.5 -
50 MHz: -50 to -60 dB; above 50 MHz: -60 dB)
- Carrier suppression: More than 40 dB
- Unwanted sideband: More than 50 dB
- Microphone connector: 8 pin modular jack (600Ohm KEY
connector: 3-conductor 6.35 (d) mm (1/4")
- RTTY connector: 3-conductor 3.5 (d) mm (1/8")
Receiver
- Receive system:
- SSB/CW/AM/WFM: Double superheterodyne
- FM : Triple superheterodyne
- Intermediate frequencies
|
1st |
2nd |
3rd |
SSB/AM-N/FM |
69.0115 MHz |
9.0115 MHz |
0.455 kHz (FM only) |
CW |
69.0106 |
9.0106 |
- |
RTTY |
69.0105 MHz |
9.0105 MHz |
- |
AM/FM-N |
69.0100 MHz |
9.0100 MHz |
0.455 kHz (FM only) |
WFM |
70.7000 MHz |
10.7000 MHz |
- |
- Receive sensitivity (preamp on, except 4- - 4.5 and 8 - 9 MHz)
|
SSB/CW
10 dB S/N |
AM
10 dB S/N |
FM
12 dB SINAD |
WFM
12 dB SINAD |
0.5 - 1.8 MHz |
- |
13 µV |
- |
- |
1.8 - 28 MHz |
0.15 µV |
2.0 µV |
- |
- |
28 - 29.7 MHz |
0.15 µV |
2.0 µV |
0.5 µV |
- |
50 MHz band |
0.12 µV |
1.0 µV |
0.25 µV |
76 - 108 MHz |
- |
- |
- |
10.0 µV |
144/440 MHz band |
0.11 µV |
1.0 µV |
0.18 µV |
- |
- Squelch Sensitivity (threshold)
SSB |
Less than 5.6 µV |
FM |
Less than 0.3 µV |
- Selectivity (normal setting)
SSB, CW, RTTY |
More than 2.4 kHz/- 6 dB |
|
Less than 4.8 kHz/ -60 dB |
AM/FM-N |
More than 8.0 kHz/-6 dB |
|
Less than 30 kHz/-36 dB |
FM |
More than 12 kHz/-6 dB |
|
Less than 30 kHz/-60 dB |
- Spurious and image rejection ratio:
- SSB/CW/AM - More than 70 dB
- Audio output power (at 13.8 V DC): More than 2.0 W at 10%
distortion with an 8-ohm load
- RIT variable range +/-9.99 kHz
- PHONES connector: 3-conductor, 3.5 (d) mm (1/8")/8Ohm
- EXT SP connector: 2-conductor, 3.5 (d) mm (1/8")/8Ohm
All stated specifications are subject to change without notice or
obligation.
IC-706MKIIG SUPPLIED ACCESSORIES
- Hand microphone
- DC power cable
- Spare fuses
- RTTY key plug
- Electronic keyer plug
- ACC cable
IC-706MKIIG OPTIONS
- IC-PW1 HF + 50 MHz 1 kW HF LINEAR AMPLIFIER
Covers all HF and 50 MHz bands, provides clean, stable 1 kW output.
Automatic antenna tuner and compact detachable controller are
standard. 2 exciter inputs are available. (An optional OPC-599 is
required.)
- AH-2b HF ANTENNA ELEMENT
For mobile operation with the AH-4. All bands between 7 - 54 MHz can
be matched.
- AH-4 HF+50 MHz AUTOMATIC ANTENNA TUNER
Covers 3.5 - 54 MHz with a 7 m (23 ft) or longer wire antenna.
- AT-180 HF +50 MHz AUTOMATIC ANTENNA TUNER
Style and size are matched to the IC-706MKIIG.
- PS-85 DC POWER SUPPLY
Output: 13.8 V DC (20 A max.).
- MB-62 MOBILE MOUNTING BRACKET
For mounting the IC-706MKIIG main unit or the AT-180
- MB-63 MOBILE MOUNTING BRACKET
For mounting the detached front panel.
- MB-65 MOUNTING BASE
For mounting the detached front panel in a vehicle. The MB-63 is
required.
- MB-72 CARRYING HANDLE
Convenient for DX'peditions, operating in the field, etc.
- OPC-581/OPC-587 SEPARATION CABLES
Provides separate operation. OPC-581: 3.5 m (11 ft); OPC-587: 5 m (16
ft)
- SM-8 DESKTOP MICROPHONE
Equipped with 2 connection cables. (an optional OPC-599 is required.)
- SM-20 DESKTOP MICROPHONE
High quality desktop microphone. (an optional OPC-599 is required.)
- SP-7 EXTERNAL SPEAKER
Compact speaker for base station use.
- SP-10 EXTERNAL SPEAKER
Heavy duty speaker for mobile use.
- SP-12 EXTERNAL SPEAKER
Thin type speaker for mobile use.
- UT-106: Provides AF DSP functions such as noise
reduction and auto notch. Built in to some versions [like USA and
Canada].
- FL-100: 500 Hz/-6 dB (CW/RTTY nar.)
- FL-101: 250 Hz/-6 dB (CW nar.)
- FL-103: 2.8 kHz/-6 dB (SSB wide)
- FL-223: 1.9 kHz/-6 dB (SSB nar)
- FL-232: 350 Hz/-6 dB (RTTY/CW nar.)
- CR-282 HIGH STABILITY CRYSTAL UNIT
- CT-16 SATELLITE INTERFACE UNIT
- CT-17 CI-V LEVEL CONVERTER
- UT-102 VOICE SYNTHESIZER UNIT
- OPC-599 MODULAR 8-PIN CABLE ADAPTER
- OPC-598 ACC 13 PIN CABLE FOR AT-180
- OPC-599 ACC 13 PIN CABLE ADAPTER
- OPC-742 ACC 13 PIN CABLE
Copyright 1999 ICOM AMERICA, INC. All specifications and options subject
to change without notice or obligation. NOTE: All specifications are for
U.S.A. versions. For specifications in other countries, check with your
ICOM Dealer. Some options may not be available due to local regulations.
|
