PC


	`OE3AJC`

Video

(1) 9-pol. Sub-D	(2) 15-pol. Sub-D	(3) 8-pol.

Pin	Hercules (1) monochrom	CGA (1) Dig.-RGBI	NEC (3) Dig.-RGBI	EGA (1) Dig.-RGB	VGA (2) Analog-RGB
1	Masse	Masse	Intens.	Masse	Rot
2	Masse	Masse	Rot	Rot LSB	Grün
3	nc.	Rot	Grün	Rot MSB	Blau
4	nc.	Grün	Blau	Grün MSB	Monltor-ID-Bit2
5	nc.	Blau	Masse	Blau MSB	n.c.
6	Intens.	Intens.	Masse	Grün LSB	Rot-Masse
7	Video	n.c.	H-Sync	Blau LSB	Grün-Masse
8	H-Sync(+)	H-Sync(+)	V-Sync	H-Sync (+)	Blau-Masse
9	V-Sync (--)	V-Sync (-)		V-Sync(-)	Kodierung
10					Sync.-Masse
11					Monitor-ID-Bit O
12					Monilor-ID-Bit 1
13					H-Sync
14					V-Sync
15					n.c.

15/9-pol. Adapter

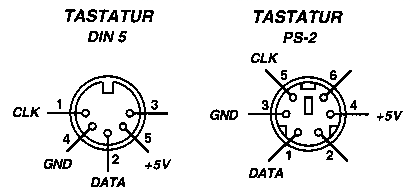

Tastatur

RS 232 (COM)

9 pol.Sub-D
Pin	I/O	Signal
1	I	DCD	Carrier Detect
2	I	RX	Receive Data
3	O	TX	Transmit Data
4	O	DTR	Data Terminal Ready
5	-	GND	Ground
6	I	DSR	Data Set Ready
7	O	RTS	Request to Send
8	I	CTS	Clear to Send
9	I	RI	Ring Indicator

25 pol Sub-D
Pin	I/O	Signal
1	-	NC	Not Connected
2	O	TX	Transmit Data
3	I	RX	Receive Data
4	O	RTS	Request to Send
5	I	CTS	Clear to Send
6	I	DSR	Data Set Ready
7	-	GND	Ground
8	I	DCD	Carrier Detect
9-19	-	NC	Not Connected
20	O	DTR	Data Terminal Ready
21	-	NC	Not Connected
22	I	RI	Ring Indicator
23-25	-	NC	Not Connected

Centronics (LPT)

Sub-D 25 pol.
Pin	I/O	Signal
1	O	Strobe
2	O	Data Bit 0
3	O	Data Bit 1
4	O	Data Bit 2
5	O	Data Bit 3
6	O	Data Bit 4
7	O	Data Bit 5
8	O	Data Bit 6
9	O	Data Bit 7
10	I	(-)Acknowledge
11	I	Busy
12	I	Paper End
13	I	Select
14	O	(-)Auto Linefeed
15	I	(-)Error
16	O	(-)Initialize
17	O	(-)Select In
18-25	O	Ground

Centronics-36 pol.
Pin	I/O	Signal
1	O	Strobe
2	O	Data Bit 0
3	O	Data Bit 1
4	O	Data Bit 2
5	O	Data Bit 3
6	O	Data Bit 4
7	O	Data Bit 5
8	O	Data Bit 6
9	O	Data Bit 7
10	I	(-)Acknowledge
11	I	Busy
12	I	Paper End
13	I	Select
14	O	(-)Auto Linefeed
32	I	(-)Error
31	O	(-)Initialize
36	O	(-)Select In
19-29	O	Ground

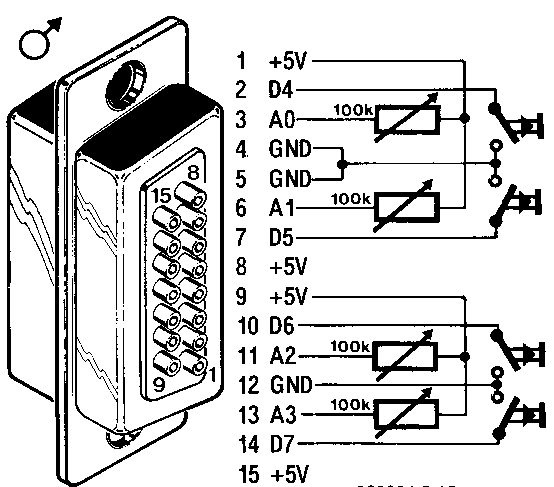

Joystick

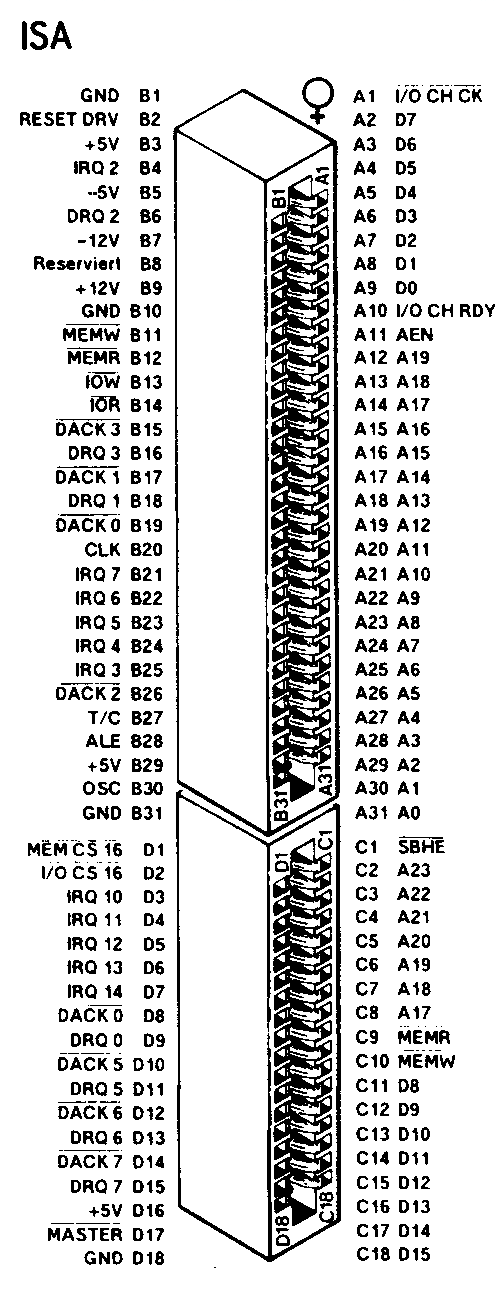

ISA
