Welcome
A lot has changed since I originally posted my slow scan television page. This site has been well received over the years.. Traditional Slow Scan Television is still around and running strong but there is a new upstart on the horizon sparked by faster and cheaper computers. Digital Slow Scan Television takes picture clairity to the next level giving you perfect images off of your radio with no static lines or fading. A simple hookup to your computer's sound card output and input to interface your rig and a simple program is all it takes to be on the air.
If you haven't checked out Amateur Radio Slow Scan Television for a while, you don't know what you have been missing. Slow Scan Television has been around since the Stone Age of television; unfortunately expensive and elaborate interfaces and poor black and white images did nothing to enhance the experience. Commercial equipment was very expensive and few people were up to the challenge of a homebrew project.

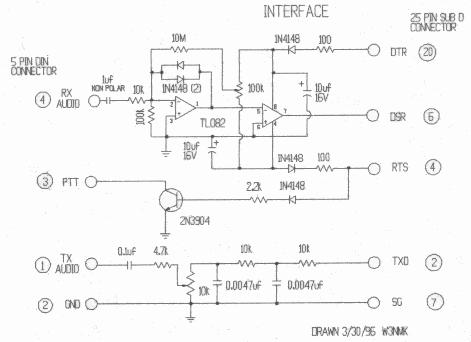

Proskan Hamcomm Type Interface
\
List of Common SSTV Frequencies by band
70 cm: (FM)
430.950 MHz SSB SSTV Call Freq.
1.25 metres: (FM)
223.850 MHz 1.25m Band SSTV Call Freq.
2 metres: (FM)
145.500 MHz 2m Band SSTV Call Freq.
145.600 MHz 2m Band SSTV Call Freq.
144.550 MHz SSB SSTV Call Freq.
6 meters: (FM)
50.680 MHz 6m Band SSTV Call Freq.
50.950 MHz SSB SSTV Call Freq.
10 metres: (USB)
28.680 MHz 10m Band SSTV Call Freq.
11 metres: (USB)
27.700 MHz France, Australia
27.420 MHz Australia
27.235 MHz Northern Ireland
12 metres: (USB)
Every day 24.975 MHz
15 metres: (USB)
21.340 MHz 15m Band SSTV Call Freq.
17 metres: (USB)
20 metres: (USB)
14.230 MHz 20m Band SSTV Call Freq.
14.233 MHz 20m Band SSTV Call Freq.
14.240 KHz Europe SSTV Call Freq.
30 metres: (USB)
10.132 MHz - Use narrow mode MP73N
40 metres: (LSB)
7.033 MHz 40m Band SSTV Call freq.
7.171 MHz 40m Band SSTV Call Freq.
7171 KHz Europe DIGITAL SSTV Call Freq.
7040 KHz Europe SSTV Call Freq. (7043)
80 metres: (LSB)
3845 KHz 80m Band SSTV Call Freq.
3730 KHz Europe Call Freq.
3733 KHz Europe DIGITAL SSTV Call Freq.
160 metres: (LSB)
1890 KHz 160m Band SSTV Call Freq.
