110 MHz BANDPASS FILTER WAVEFORMS

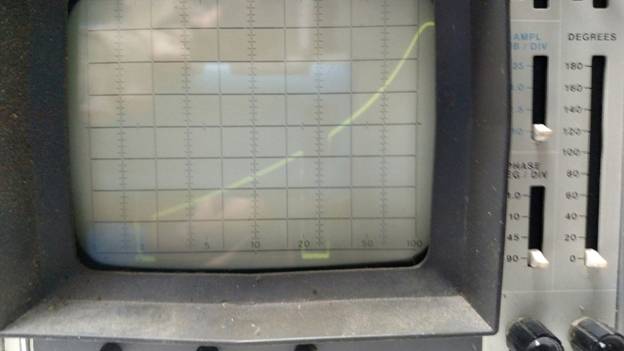

Figure 1- 0.1 – 115 MHz Full Sweep. Y-axis 10db per div. As you can see, pass band is 72db and stop band varies from 0-15db.

Figure 2- 110 MHz pass band, BW=4MHz. X-axis 1 MHz per div. and Y-axis 10db per div.

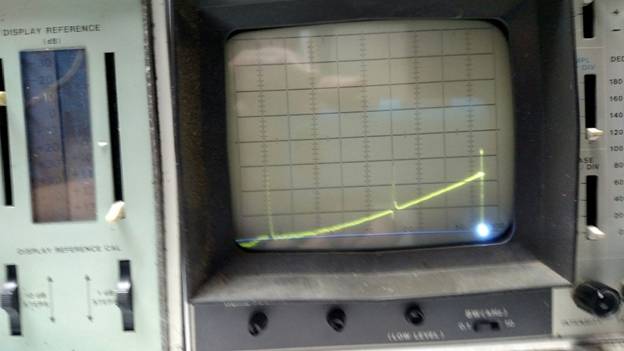

Figure 3- 110 MHz pass band with marker at 105MHz and 110MHz. X-axis 1 MHz per div. and Y-axis 10db per div.

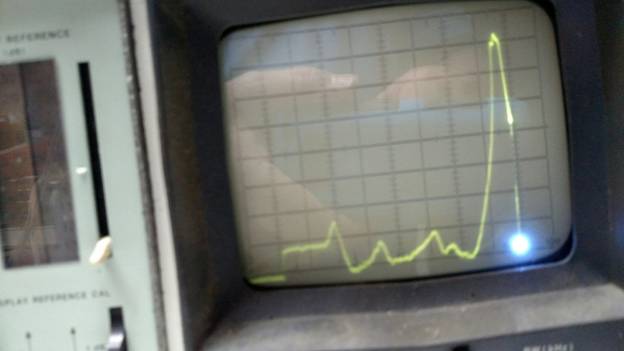

Figure 4- Markers at 100MHz and 105MHz. X-axis 1 MHz per div. and Y-axis 10db per div.

Figure 5- Markers at 90MHz and 95MHz. X-axis 1 MHz per div. and Y-axis 10db per div.

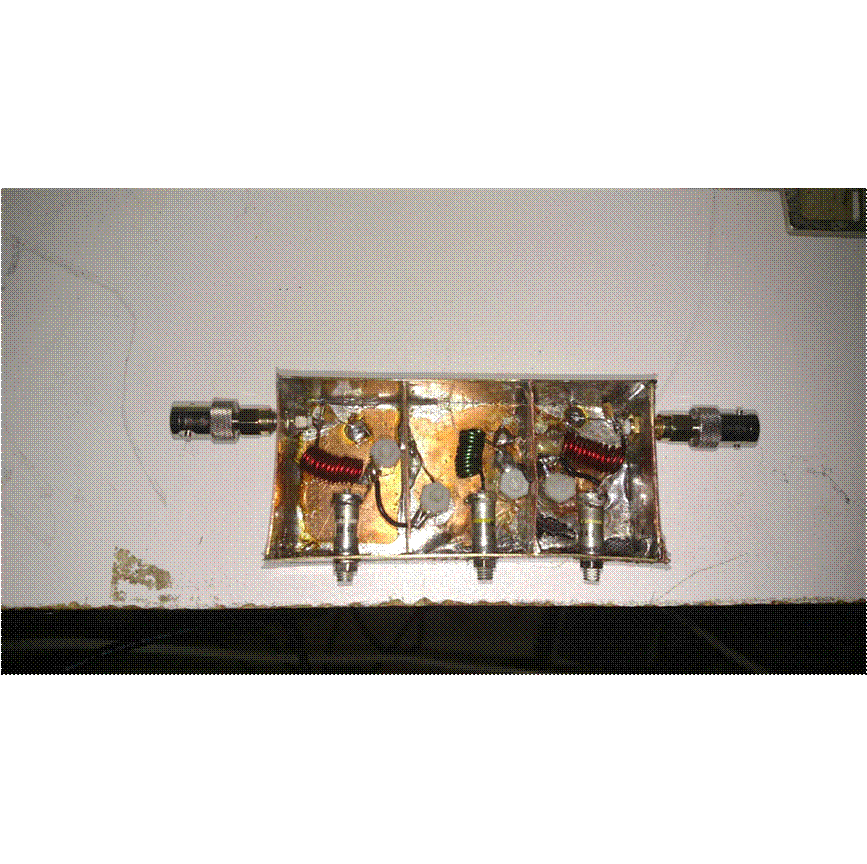

Figure 6- Piston Capacitor Version from Kanga kit

Reference schematic:

http://w7zoi.net/mixed-bag/mixed_bag.html
