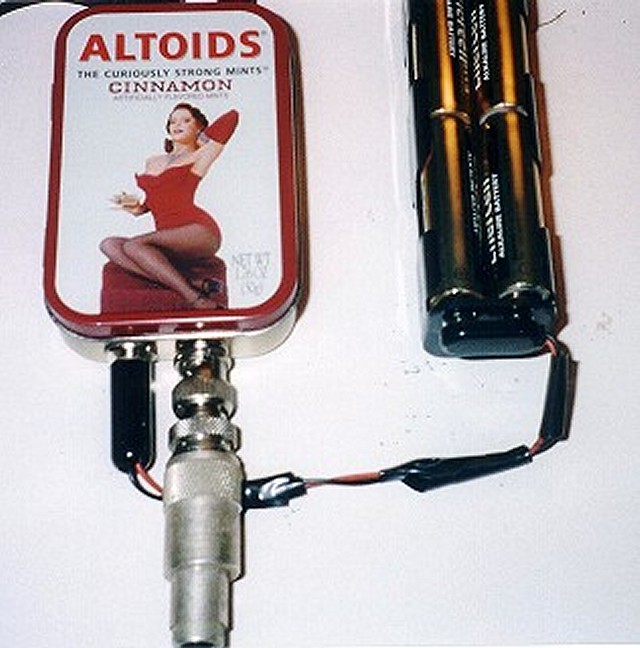

Rod, here are a few photos of my RM40, nicknamed "Sinnamon."

It is a standard 40-meter unit, with one of KA8MAV's Chebychev hi-pass

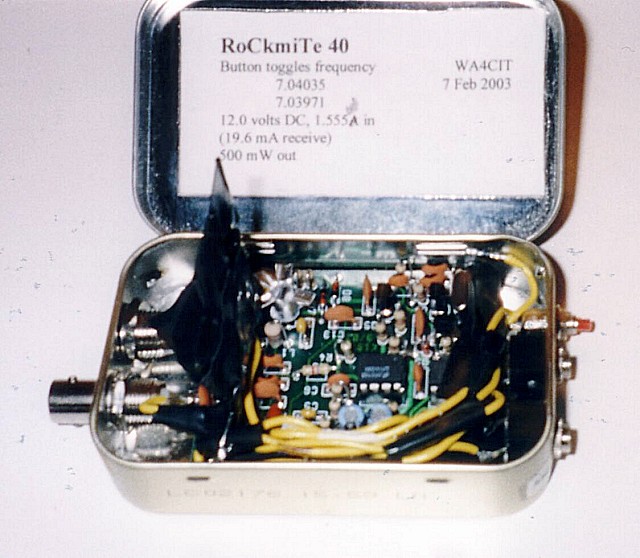

BCI filters from  I soldered the filter together ugly
style, then covered it in electrical tape and inserted it into the
circuit between the PCB and the antenna BNC connector.

I installed a crude heatsink over the 2N222, using some roof flashing,
rolled around a drill bit.

Other than that, it's stock and pretty unremarkable. I've had a bunch
of fun with it though. ...


Randy WA4CIT
