Covers all Amateur Bands 10 - 80 meters.
Sensitivity less than 0.5 uV for 10 dB S+N/N.
Tuned MOSFET RF amplifier and mixer.
Permeability tuned front end and VFO.
Direct frequency readout.
Vernier tuning approximately 25 kHz per revolution.
Dial accuracy +/- 2.5 kHz when calibrated to nearest 100 kHz point.
Drift less than 100 Hz.
9
MHz crystal lattice IF amplifier.
2.5 kHz bandwidth, 1.7 shape factor @ 6/50 dB points.
Automatic sideband selection, reversible.
AGC
Audio distortion less than 2%.
Internal speaker.
Headphone/external speaker jack.
Sidetone input jack.
Integral regulated power supply.
T/R mute jack.
Carrier and VFO output jacks for transceiving.
Offset tuning.
"S" meter.
Separate AF and RF gain controls.
Pulsed crystal calibrator, 100 kHz.
Provisions for two position audio CW filter accessory.
115 VAC opration.
Five plug-in circuit boards.
Contruction: aluminum chassis, top and front panels, molded plastic end panels. Cream front panel, walnut vinyl top and end trim.
Size: HWD 4.5" x 13" x 7".
Weight: 6 lbs.

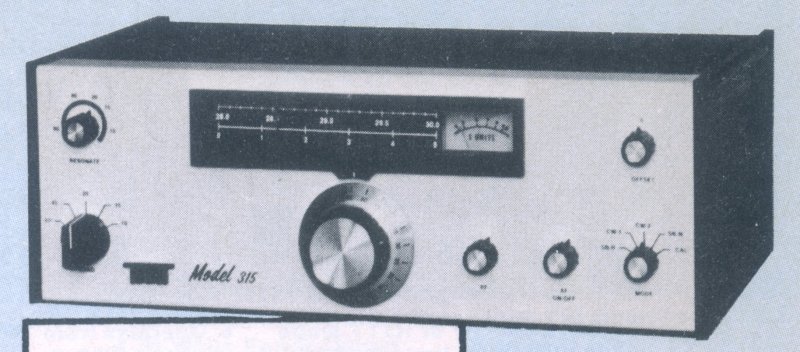

Model 315 Listing from Trigger Electronics Catalog (1.16 MB)
