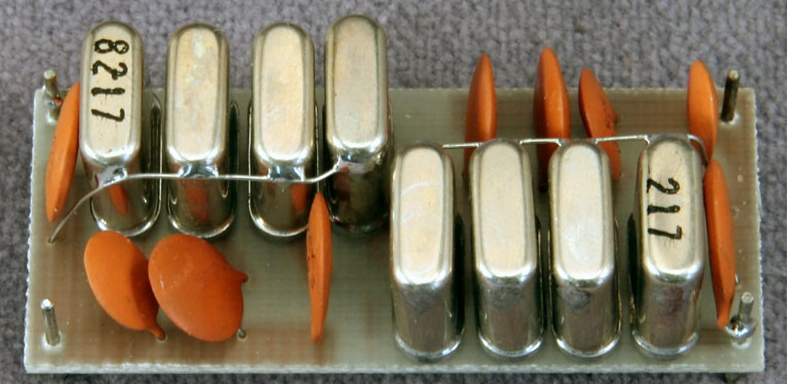

9 MHz 8 Pole 500 Hz Crystal Filter Model 217

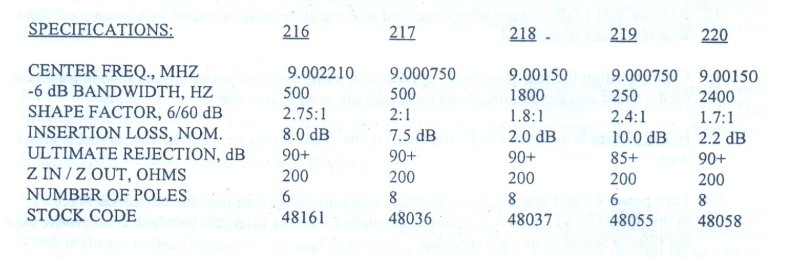

Specifications

Center Frequency 9.000750
6 dB BW, Hz 500
Shape Factor, 6/60 dB 2:1
Insertion Loss, dB 7.5
Ultimate Rejection, dB 90+
Z in & out, Ohms 200
Number of Poles 8
