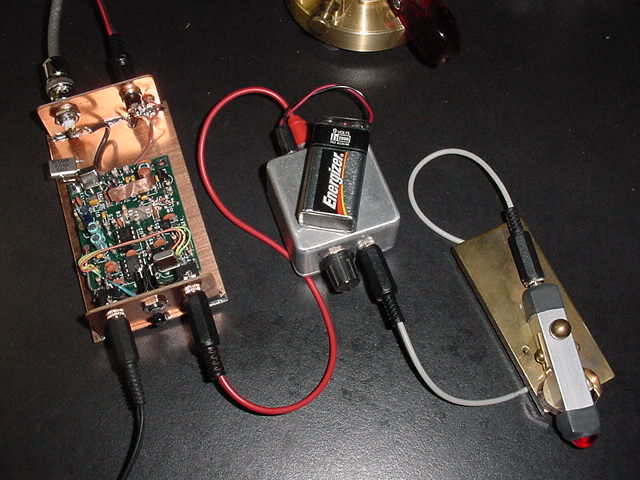

From: "Chuck Carpenter" <w5usj@...> To: <rod@...> Subject: R-M/40 Update Date: Sunday, September 22, 2002 8:39 AM Rod, I've made a PCB chassis where the R-M/40 is now mounted. The novalty [bottom of page--rc] enclosure was too clumsy for doing any mods and experiments. The picture shows the assembly with a 7040 meter crystal suspended with its ground wire. A pair of 7122 MHz crystals are installed in the sockets for this shot. Power out to my Butternut vertical was about 400 mW according to my Welz power meter on the 2.5 Watt scale. About the same as the power with the 7040 crystal.
Sunday morning, 22 Sep, the R-M was setup for operation as a beacon. The keyer is a PK-3 in beacon mode with a TE-NE-KEY. It was in beacon mode for about an hour and I received report varying from 449 to 569 up to about 670 miles. With the PK-3 keyer in control, the sending speed can be varied and one report said copy was better at a faster speed. About 20 wpm, I'd estimate. I'll do a beacon mode again some time later in the evening.

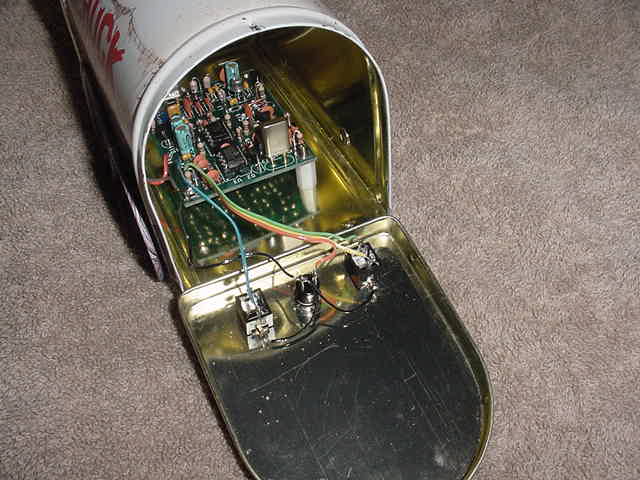

From: "Chuck Carpenter" <w5usj@...> To: <rod@...> Subject: Rock-Mite Files Date: Saturday, September 07, 2002 5:39 AM Rod, Here's my entry for the Rock-Mite Files. Had this special enclosure sitting around for a while just waiting for something to put in it. The headphone jack, pushbutton and keyer paddle jack are on the lower edge of the front panel. A BNC connector and power connector are on the back panel. You can see lower part of a whip (for show) above the back corner. With this enclosure, a battery pack could be supported in the top part of the wagon. I have the board mounted on plastic standoffs on two corners. Looking closely, you can see that the mounting screw doesn't have a nut on it. I found that the PCB mounting holes are just a little smaller the the OD of the 6/32 screw. By carefully starting the screw, it formed a threaded hole in the R-M plated-through hole. There is sufficient strength to hold this light-weight board in place using this technique. Note that I use the term thread forming and not self tapping. Thread-forming screws upset the metal to make the threads. Self-tapping screws remove metal. Ground continuity was not destroyed by using thread forming in the plated-through PCB mounting holes. Self-tapping screws may have removed too much metal in the holes. Also, piercing was used to start the mounting holes. In thin metals, piercing is often used to provide more thread length. For the mounting holes in the bottom of this enclosure, the holes were pierced to slightly smaller than the 6/32 screw OD. The screws were held in place this way so that it didn't take 3 hands to put the board in place over the standoffs. You can also use self-tapping screws in pierced holes for more holding strength. Pierce them to about 1/2 the thread depth diameter. To mount larger parts, holes are pierced and then slowly and carefully drilled to 1/4 inch diameter. A tapered reamer is used to make holes larger as needed. ... Chuck Carpenter, W5USJ
From: "Chuck Carpenter" To: "Rod N0RC" Subject: Super Rock-Mite/40 Date: Tuesday, February 11, 2003 5:40 AM Rod, Got some good natural light yesterday and finished the pictures for my Super Rock-Mite. It includes the RMK chip and KD1JV filter board. A VXO board will be added too. It will mount over the top of the R/M board next to the Osc Crystal. Need to stop messing around with the mods and pictures and do some operating... [g] Thirty meters with 960 Watts will be my primary objective... [g] Make that mW! The enclosure I used is a Context Engineering #4006B. Got it from Frye's off their mailorder website.
