90501

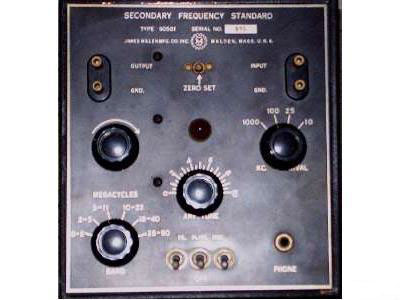

Millen 90501 secondary frequency standard.

90619

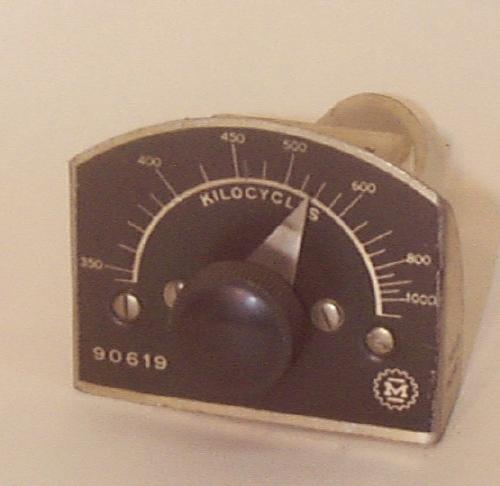

JAMES MILLEN MODEL 90619 HAND HELD 350 KHZ THRU 1000 KHZ WAVEMETER. Production year xxx.

90651

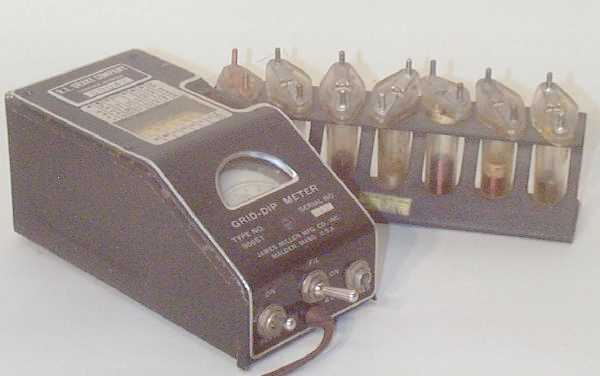

Millen 90651 is a compact and completely self contained grid-dip meter. Transformer type AC supply. Drum dial has seven bands, calibrated from 1.5 thru 300MHz, with generous overlaps.

90700

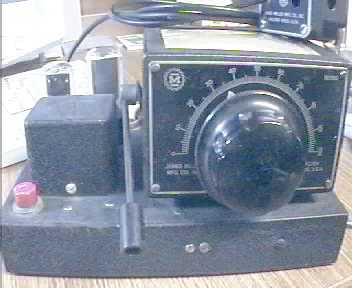

90700 - a 80/40m VFO manufactured by James Millen in the 1940s, with calibration chart for use on its fundamental output 3.5-3.7 MHz or by changing coil taps on the buffer and link coupler to the 2nd harmonic, 7.0-7.4 MHz. Can be doubled or quadrupled in a transmitter to operate on 20 and 10 meters also. Tubes are 6K7 VFO, 25L6 buffer, and 25Z6 rectifier-doubler. This unit is operated directly from the 120 volt ac line and uses a transformerless voltage doubler. It puts out 2 watts of RF. Intended to drive a tri-tet crystal oscillator by plugging in the 5-pin tuned link coupler (included) to crystal socket of a Millen 90800 50-watt exciter (6L6-807 combination). This unit is also in Jan. QST 1941 (Millen built the commercial version).

90800

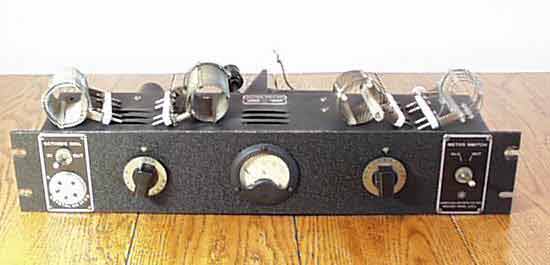

JAMES MILLEN MODEL 90800 Shortwave exciter/transmitter, 807 in final. Production year xxx.
Supplementary photos
Schematics 90800

90932
Millen 90932 Montor Oscilloscope. Has a tuned input that greatly improves its RF sensitivity. Unit powers just fine with a nice bright trace. Has controls for Intensity, Vertical and Horizontal Centering, Focus, Beam (on/off), Width, Phase, Envelope sensitivity and Envelope/Trapozoid.

92200

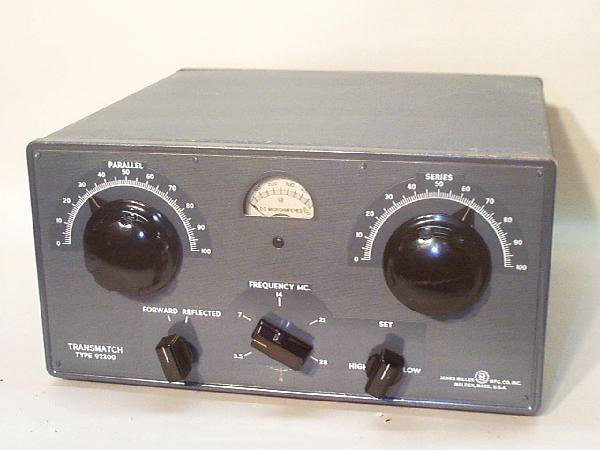

JAMES MILLEN & CO MODEL 92200 2 KW ANTENNA TUNER - COVERS AMATEUR BANDS 80-10 METERS - BUILT IN FORWARD AND REFLECTED POWER METER.

3573783

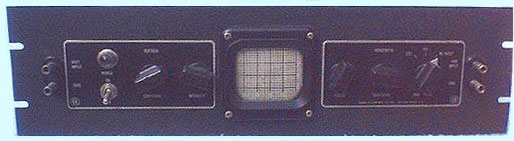

JAMES MILLEN MODEL 3573783 Monitor-scope
Supplementary photos

Preamp

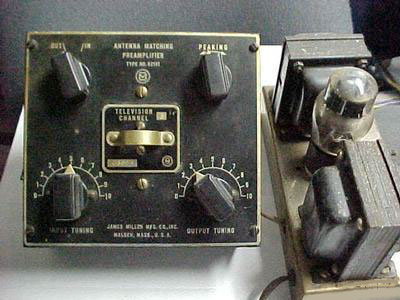

James Millen Antenna Matching Preamplifer and Power Supply.
