Galaxy 300 - is a 3 band transceiver - the predecessor to the Galaxy III (3 band transceiver) and the Galaxy V (5 band transceiver).
F-3
Galaxy Model F-3 Super-Sharp filter. 300Hz bandpass at -6db. Useful for CW, RTTY, other narrow band services. Quick plug into Galaxy V Mk2 with cable provided.
May be switched in/out of circuit with panel switch. Used external to transceiver. Compact 6*3 1/2 * 2 1/4".
GT-550
GT-550 SSB Transceiver. 5 BAND 80-10 METERS SSB AND CW TRANSCIEVER.FEATURES INCLUDE ON THE FRONT PANEL:ON/OFF SWITCH/AF GAIN CONTROL,MAIN FREQUENCY TUNING KNOB,MICROPHONE
INPUT JACK,SIDE BAND SWITCH,BAND SWITCH,LOAD AND PLATE AND EXCITER CONTROLS,5 POSITION FUNCTION SWITCH,EASY TO READ METER AND RF GAIN CONTROL.ON THE REAR PANEL:BIAS ADJUSTMENT,
GROUND LUG,"S"METER ZERO,PTT,EXT VFO,ALC,EXT,MIC,KEY,EXT VFO INPUT,ANTENNA AND SPEAKER JACKS,TRANSMITTER OUTPUT :550 WATTS PEP-SSB AND 360 WATTS CW.THE DIMENSIONS ARE 6"+ 11"+13"
AND IT WEIGHS 17LBS.
Supplementary photos
R-1530

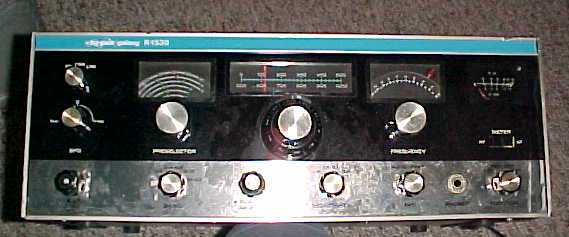

Galaxy R-1530 Ham receiver.
AM/USB/LSB switch
BFO dial
AF/RF dial
Band dial(.5-1 to 16-30)
Preselector dial
Main Tuning Dial. 0-500 Khz marks on top are used when the frequency control dial is set on an even frequency. The 500-1000 khz marks on the bottom are used then the frequency dial is set on 500 khz increments.
Blanker/FR Attn dial
Selectivity switch (.5-6.0)
Frequency dial indicates frequency in mhz at 500 khz increments to which the phase lock oscillator can be tuned. The light in the upper right hand corner of this dial is extinquished when the oscillator is locked on AVC switch(Slow/Fast)
Meter switch(RF/AF)
Head phones plug in
Function switch(OFF/SBY/OPR/CAL)
AF DBM meter
In the back there is:
Plug in
Fuse
Spare, -12, +12, AVC, MUte and ground screws
Spare/J8, Spare/J7, VFO IN/J6, VFO OUT/J5 and Det Out/J4 RCA jacks
Antenna plug in
Audio out screws(600, CT, 600)
Speaker/J3 RCA jack
Measures 17" wide x 6" high x 14" deep.
Supplementary photo
V mkll

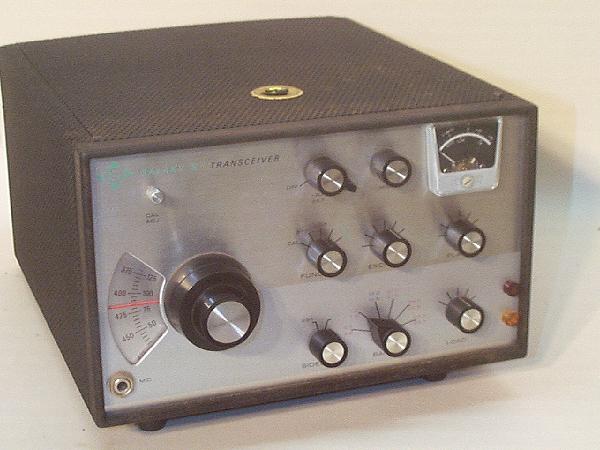

Galaxy V MK2 transceiver manufactured by Galaxy Electronics in Council Bluffs, Iowa. This transceiver will operate on 80, 40, 20, 15, and 10 meters. It produces 400 watts
of SSB power. This unit features a solid-state VFO. CW operation is available in low and high power manual operation or VOX-break in operation.
Supplementary photos
Specifications
